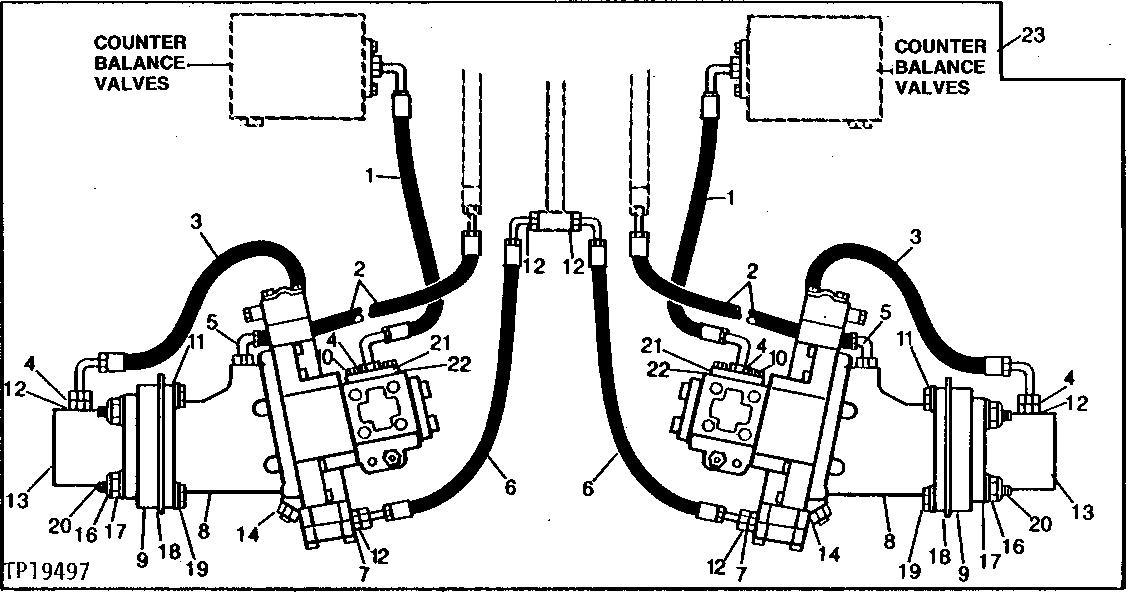

LINDE PISTON PROPEL MOTOR CONVERSION KIT [01C11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT105461	4	HYDRAULIC HOSE - FABRICATE	(COUNTER BALANCE VALVES TO PROPEL MOTOR PORTS)
2	AT40598	2	HYDRAULIC HOSE - FABRICATE	(TO LOWER TUBE COMING THROUGH HOLE IN TOWER TO 2 - SPEED SHIFT PORT IN PROPEL MOTORS)
3	AT81900	2	HYDRAULIC HOSE - FABRICATE	(BRAKE PORT IN PROPEL MOTOR TO BRAKE PORT)
4	38H1160	4	Adapter Fitting	(BRAKE PORT PROPEL MOTOR AND BRAKE PORT IN BRAKE)
5	AH20193	2	Elbow Fitting	(PROPEL MOTORS DRAIN PORT ADAPTERS)
6	AT40598	2	HYDRAULIC HOSE - FABRICATE	-
7	AL55385	2	Elbow Fitting	(SUB FOR AT35120) (PROPEL MOTORS 2 - SPEED SHIFT PORTS)
8	AT105426	2	HYDRAULIC MOTOR	-
9	T81386	2	ADAPTER FITTING	(BETWEEN MOTOR AND BRAKE)
10	19H2993	16	Cap Screw	HS, SAE 8, 1/2" X 1-1/2", (SPLIT FLANGES TO PROPEL MOTOR)
11	24M7241	8	Washer	17 X 34 X 4 MM, (SUB FOR T40728) (MOTOR TO ADAPTER)
12	T70177	8	O-Ring	(TWO USED WITH TWO SPEED PORT IN PROPEL MOTORS) (SIX USED WITH BRAKE PORT FITTINGS AND PLUGS)
13	R55453	4	O-Ring	(PROPEL MOTOR TO BRAKE AND BRAKE TO GEARBOX)
14	R27218	2	Fitting Plug	(PLUG BRAKE PORT IN COUNTERBALANCE VALVES)
15	R47151	2	O-Ring	(DRAIN PORT ADAPTER IN MOTORS)
16	K40014	8	Lock Nut	(ADAPTER AND BRAKE TO GEARBOX)
17	N31767	8	WASHER	(ADAPTER AND BRAKE TO GEARBOX)
18	T81385	2	GASKET	(MOTOR TO ADAPTER)
19	19M7719	8	Cap Screw	M16 X 70, (MOTOR TO ADAPTER)
20	T67716	8	STUD	(GEAR BOX THROUGH BRAKE TO ADAPTER)
21	N131838	4	O-Ring	(PRESSURE HOSES TO MOTORS AND COUNTERBALANCE VALVES)
22	T81202	8	FLANGE FITTING	(PROPEL MOTOR PORTS)
23	AT105922	1	KIT	(LINDE PISTON PROPEL MOTOR CONVERSION) (PARTS LIST AND ART ON FOLLOWING PAGES)

LINDE PISTON PROPEL MOTOR CONVERSION KIT [01C11]

Нет текстового описания
