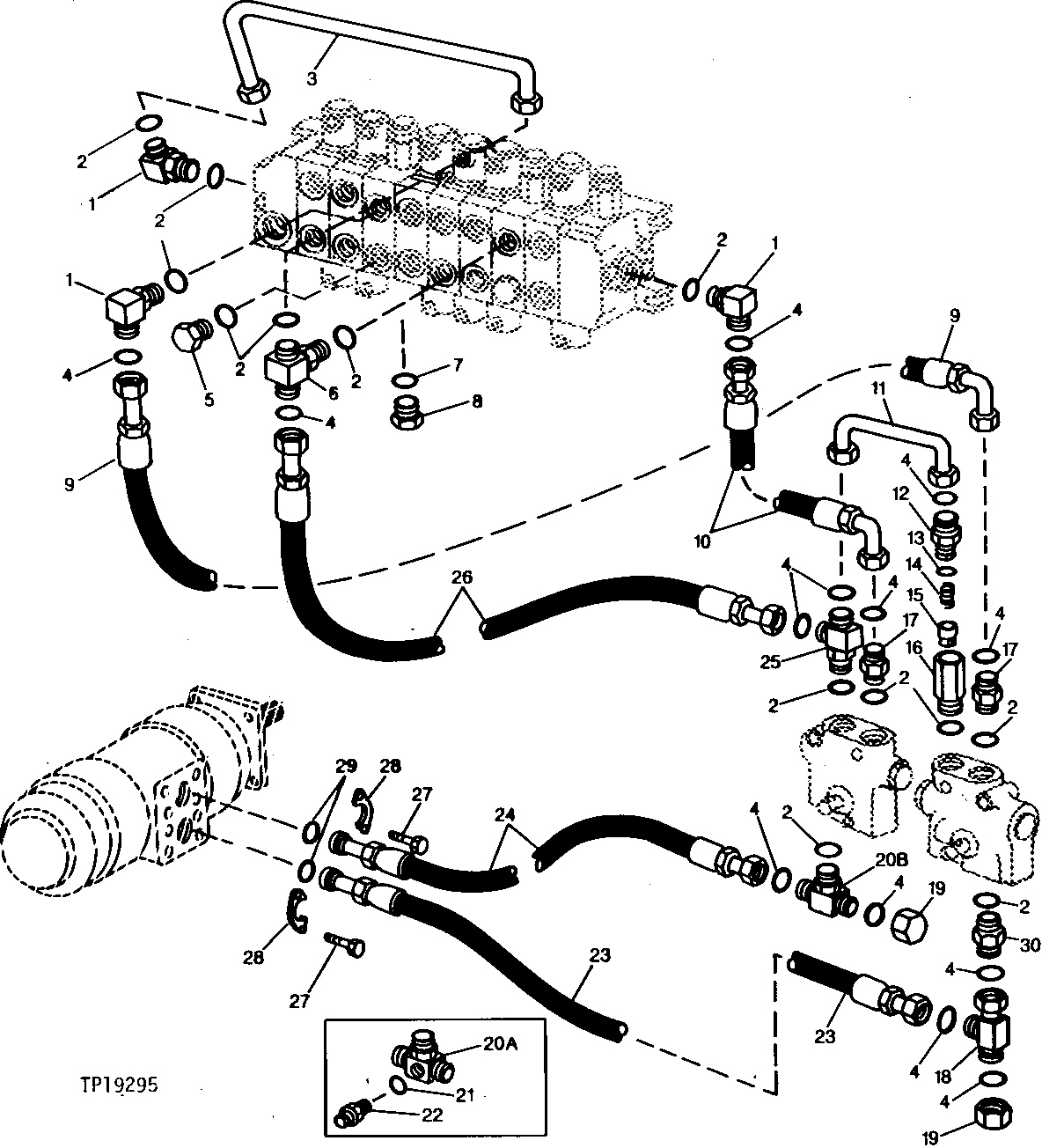

CONTROL VALVE TO FLOW DIVIDER FITTINGS AND HOSES [02F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1037	3	Elbow Fitting	-
2	R29936	12	O-Ring	-
3	AT79207	1	OIL LINE	-
4	T76938	12	O-Ring	-
5	R36636	1	Drain Plug	-
6	38H1020	1	Tee Fitting	-
7	U13639	1	O-Ring	-
8	R39741	1	Drain Plug	UNDERSIZE
9	AT79203	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 1 473 MM (58") X 1-7/16"
10	AT79204	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 991 MM (39") X 1-7/16"
11	AT79606	1	OIL LINE	-
12	38H1179	1	Adapter Fitting	-
13	U12547	1	O-Ring	-
14	T26072	1	SPRING	-
15	T35780	1	CHECK VALVE	-
16	T35781	1	FITTING	-
17	38H1164	3	Adapter Fitting	-
18	38H1002	1	Tee Fitting	-
19	38H1419	2	Fitting	-
21	T70177	1	O-Ring	-
22	38H1160	1	Adapter Fitting	-
23	AT79205	1	HYDRAULIC HOSE - FABRICATE	1" X 822 MM (32-1/4") X 1-7/16"
24	AT79206	1	HYDRAULIC HOSE - FABRICATE	1" X 654 MM (25-3/4") X 1-7/16"
25	38H1027	1	Tee Fitting	-
26	AT79202	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 900 MM (35-1/2") X 1-7/16"
27	19H3239	8	Cap Screw	3/8" X 1-1/4"
28	H61354	4	Flange Fitting	-
29	T78313	2	O-Ring	-
30	T104003	1	ADAPTER FITTING	-
20A	AT79605	1	TEE FITTING	(USE IF AVAILABLE, OTHERWISE USE 38H1020 AND T78646) (DRILLING AND TAPPING REQUIRED)
20B	38H1020	1	Tee Fitting	-
