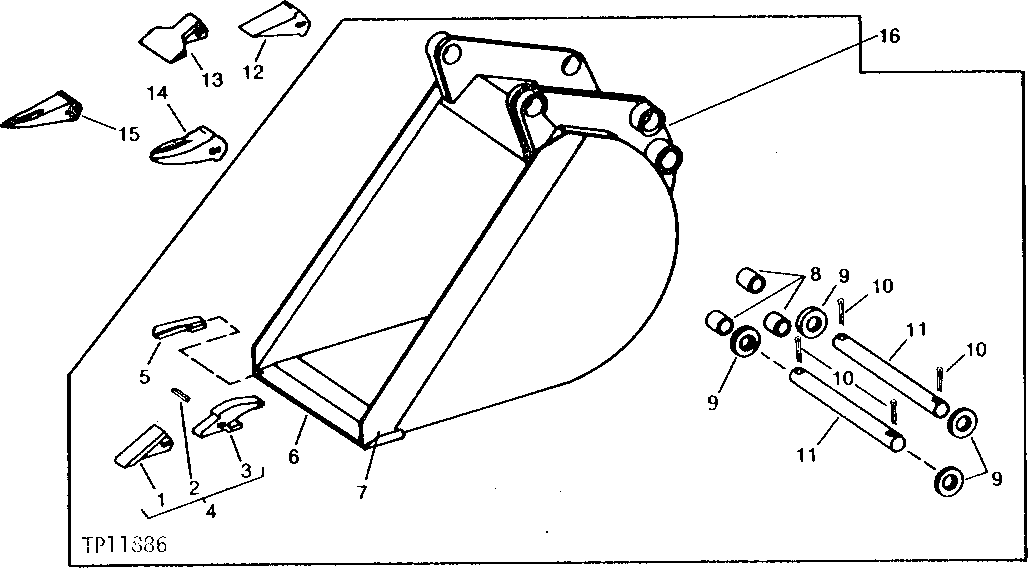

BUCKETS (24, 30 AND 36-INCH) [02E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T252	1	TOOTH	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR AT33513)
2	U45574	1	PIN	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET)
3	T440X252	1	BUCKET TOOTH ADAPTER	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR U45349)
4	-	1	Part 4	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) ( AT33512 NO LONGER AVAILABLE) (FURNISH COMPONENTS)
5	T34533	1	CORNER	R.H.
5	T34534	1	CORNER	L.H.
6	U45371	1	CUTTING EDGE	(24") BUCKET
6	U45368	1	CUTTING EDGE	(30") BUCKET
6	U45363	1	CUTTING EDGE	(36") BUCKET
7	U45364	1	CUTTING EDGE	SIDE, R.H.
7	U45365	1	CUTTING EDGE	SIDE, L.H.
8	U45351	6	Bushing	-
9	U43779	1	WASHER	-
10	11H277	4	COTTER PIN	1/2" X 4"
11	U45205	2	PIN FASTENER	-
12	T252	1	TOOTH	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR T72583)
13	T250F	1	TOOTH	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR AT135911)
14	T252ST	1	TOOTH	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR T72581)
15	T252ST	1	TOOTH	(4 USED WITH 24" AND 30" BUCKETS, 5 USED WITH 36" BUCKET) (SUB FOR T72581 AND T72582)
16	-	1	Part 20	610 MM (24") ( AT34745 NO LONGER AVAILABLE)
16	-	1	Part 21	762 MM (30") ( AT34746 NO LONGER AVAILABLE)
16	-	1	Part 22	914 MM (36") ( AT34747 NO LONGER AVAILABLE)

BUCKETS (24, 30 AND 36-INCH) [02E14]
