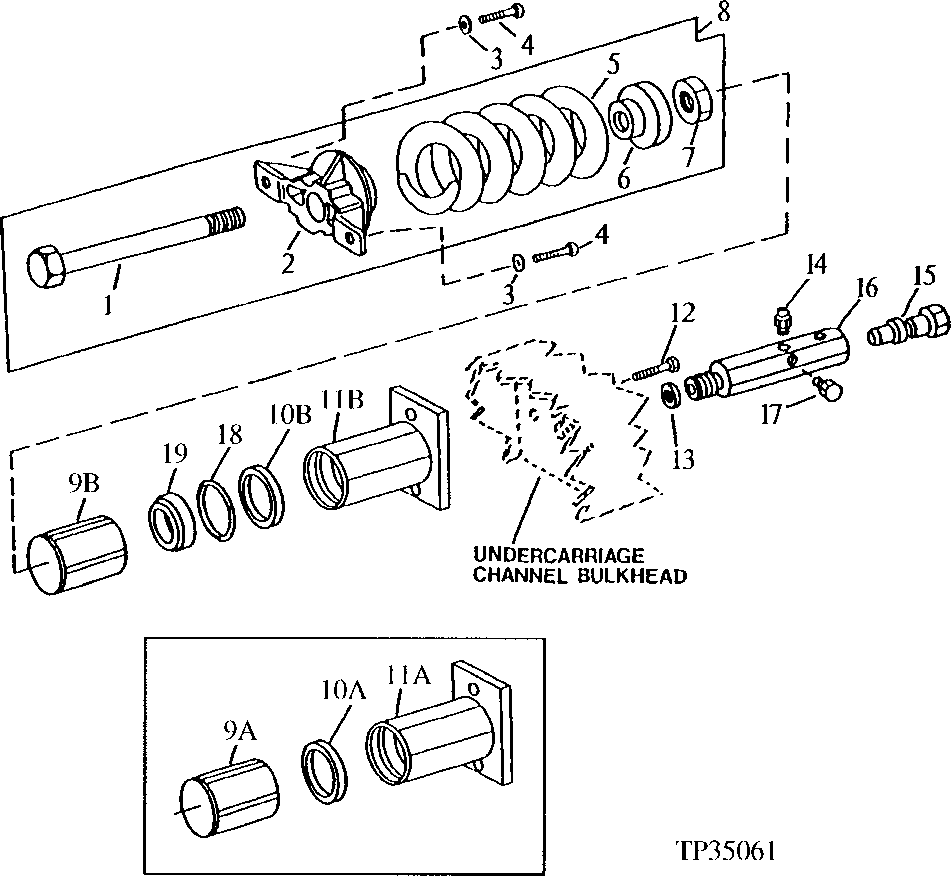

ADJUSTING CYLINDER AND IDLER SPRING ASSEMBLY [01B01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T123101	1	BOLT	(USE WITH AT125807)
1	T119925	1	BOLT	(SUB FOR T42679) (USE WITH AT47056)
2	T42678	1	YOKE	-
3	24M1589	2	WASHER	17 X 30 X 3 MM 5/8"
4	19M7489	2	Cap Screw	M16 X 45
5	T119926	1	EXTENSION SPRING	(SUB FOR T44023)
6	T42680	1	CAP	(USE WITH AT47056)
6	T123102	1	CAP	(USE WITH AT125807)
7	T124145	1	NUT	(USE WITH AT125807)
7	T42682	1	NUT	(USE WITH AT47056)
8	-	1	Part 11	( AT47056 NO LONGER AVAILABLE) (SUB AT125807 IF AVAILABLE)
12	19M7493	2	Cap Screw	M12 X 40, (SUB FOR 19M7303, THIS APPLICATION)
13	AT48016	1	Seal	-
14	JD10510	1	Lubrication Fitting	(SUB FOR JD7797)
15	T115166	1	PRESSURE RELIEF VALVE	TRACK RELIEF, (SUB FOR AT48017)
16	T115149	1	ADAPTER FITTING	-
17	15H558	2	Pipe Plug	1/8"
18	T115284	1	BACK-UP RING	-
19	T139457	1	Seal	(SUB FOR T115216)
9A	-	1	Part 12	( T82904 NO LONGER AVAILABLE) (SUB T115214, T115215, T139457, T115284 AND (3) 19M7493)
9B	T115214	1	PIN	-
10A	T165540	1	SEAL	-
10A	T42674	1	SEAL	(USE IF AVAILABLE) (SUB T165540)
10B	T115215	1	SEAL	-
11A	-	1	Part 17	( T82905 NO LONGER AVAILABLE) (SUB AT125469, T115215, T139457, T115284 AND (3) 19M7493)
11B	AT125469	1	BARREL	-
