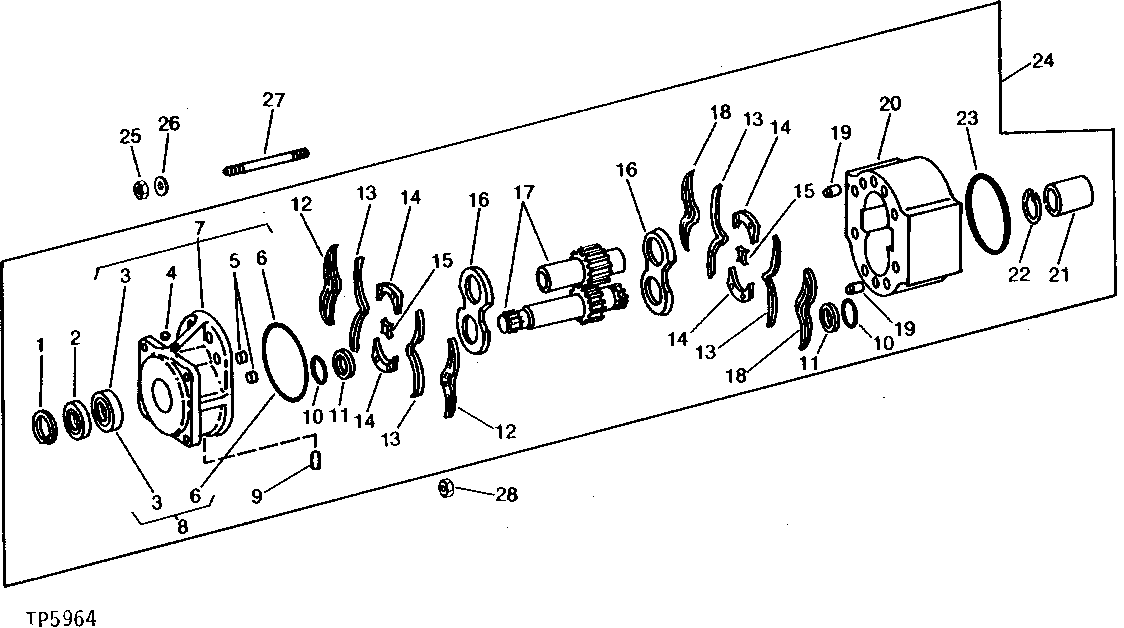

TRACK DRIVE MOTOR (FRONT SECTION) (RIGHT-HAND ILLUSTRATED) (SERIAL NO. -402870) [01F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	-
2	T74339	1	SEAL	(SUB FOR U44858)
2	T74339	1	SEAL	(A)
3	T42737	1	SEAL	(A)
4	400R	3	Ball	6.35 MM (1/4") (SUB FOR U44850)
5	T48992	2	PIN	-
6	T61267	1	O-RING	(A) (USE WHEN O-RING GROOVE IS LESS THAN 1.52 MM (.06") DEEP
6	T60657	1	O-Ring	(A) (SUB FOR T41418, THIS APPLICATION) WHEN O-RING GROOVE IS MORE THAN 1.52 MM (.06") DEEP
7	AT75532	1	KIT	(SUB FOR AT41667)
8	AT41670	1	SEAL KIT	-
9	T67479	1	CAP	-
10	T61327	4	O-Ring	(A) (SUB FOR U15415 AND T38850, THIS APPLICATION) (ALSO ORDER T61326)
11	T61326	4	BACK-UP RING	(A) (SUB FOR T38849, THIS APPLICATION) (ALSO ORDER T61327)
12	T74341	2	PLATE	(A) (SUB FOR T46533)
13	T46532	4	ISOLATOR	(A) (SUB FOR T38845, THIS APPLICATION)
14	T61324	4	SEPARATOR	(A) (SUB FOR T38838, THIS APPLICATION)
15	T61325	2	SEPARATOR	(A) CENTER, (SUB FOR T38840, THIS APPLICATION)
16	T38839	2	PLATE	(SUB FOR T46534)
17	AT41668	1	KIT	GEARS, MATCHED SET
18	T74342	2	PLATE	(A) (SUB FOR T46535)
19	U44854	4	DOWEL PIN	-
20	T42734	1	HOUSING	(SUB AT77815)
21	T42740	1	SPLINED COUPLING	-
22	T23694	1	Snap Ring	-
23	T42742	1	O-RING	(A)
24	AT41665	1	KIT	FRONT SECTION
24	AT77815	1	KIT	FRONT SECTION, (SUB FOR AT69136)
25	U44860	8	NUT	-
26	U44865	8	WASHER	-
27	T42745	8	STUD	-
28	14H826	4	Nut	1/2"
..	AT105429	1	KIT	(SUB FOR AT50582 FRONT SECTION AND AT50583 REAR SECTION) (ALSO INCLUDES (2) H63283 O-RING)

TRACK DRIVE MOTOR (FRONT SECTION) (RIGHT-HAND ILLUSTRATED) (SERIAL NO. -402870) [01F24]
