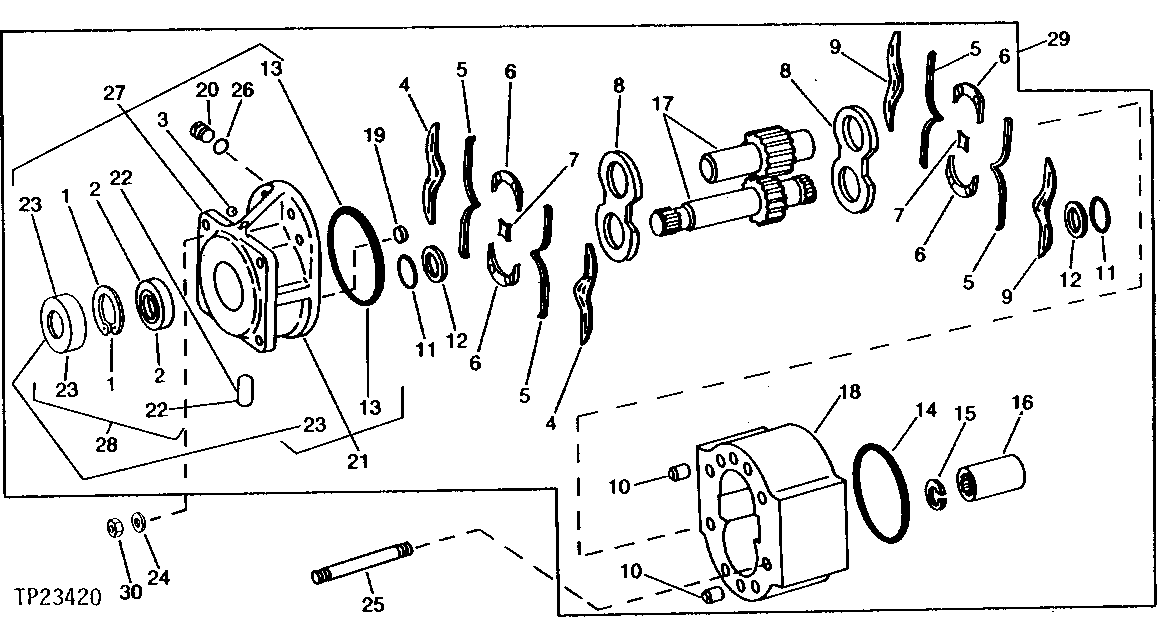

TRACK DRIVE MOTOR (FRONT SECTION) (RIGHT-HAND ILLUSTRATED) [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	FRONT SECTION
2	T74339	1	SEAL	(USED IN AT77816 FLANGE KIT)
3	400R	3	Ball	-
4	T74341	2	PLATE	-
5	T46532	4	ISOLATOR	-
6	T61324	4	SEPARATOR	END
7	T61325	2	SEPARATOR	CENTER
8	T74344	2	PLATE	-
9	T74342	2	PLATE	-
10	U44854	4	DOWEL PIN	-
11	T61327	4	O-Ring	-
12	T61326	4	BACK-UP RING	BACKUP, (SUB FOR T38849, THIS APPLICATION)
13	T61267	1	O-RING	(USE WHEN O-RING GROOVE IS LESS THAN 1.52 MM (.06") DEEP)
13	T60657	1	O-Ring	(USE WHEN O-RING GROOVE IS MORE THAN 1.52 MM (.06") DEEP)
14	T42742	1	O-RING	-
15	T23694	1	Snap Ring	(SUB FOR U46421)
16	T42740	1	SPLINED COUPLING	SPLINE
17	-	1	Part 19	(SUB AT77815)
17	-	1	Part 18	(SUB AT77815) (SUB FOR AT73354)
18	-	1	Part 20	(SUB AT77815) (SUB FOR AT73354)
18	-	1	Part 21	(SUB AT77815)
19	T48992	2	PIN	-
20	T74350	2	ORIFICE	(SUB T78422)
20	T78422	2	ORIFICE	-
21	AT41670	1	SEAL KIT	-
22	T74352	1	PRESSURE RELIEF VALVE	-
23	T42737	1	SEAL	(USED IN AT77816 FLANGE KIT)
24	U44865	8	WASHER	-
25	T42745	8	STUD	-
26	D2361R	2	Ball	-
27	AT72021	1	FLANGE	(SUB AT77816)
27	AT77816	1	FLANGE	-
28	AT72022	1	SEAL KIT	(ALSO INCLUDES T61267 AND T60657)
29	AT73354	1	KIT	FRONT SECTION, (SUB AT77815)
29	AT77815	1	KIT	FRONT SECTION
30	U44860	8	NUT	-

TRACK DRIVE MOTOR (FRONT SECTION) (RIGHT-HAND ILLUSTRATED) [01G03]
