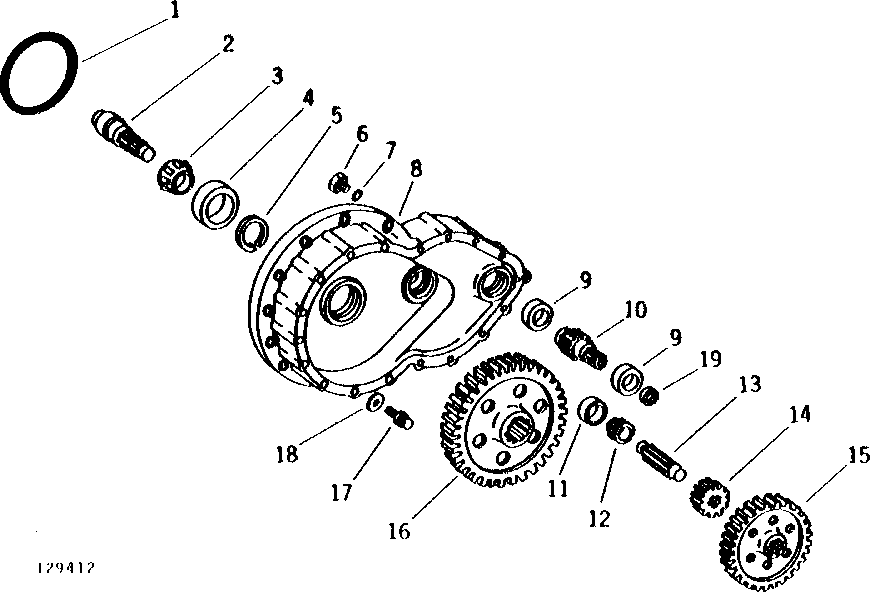

TRACK DRIVE GEAR CASE AND GEARS [01F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42029	1	O-RING	-
2	T39439	1	SHAFT	OUTPUT
2	T74978	1	SHAFT	OUTPUT
3	JD9075	1	Bearing Cone	-
4	JD9132	1	Bearing Cup	-
5	F3669R	1	SNAP RING	-
6	R27094	1	Drain Plug	-
7	R26286	1	O-Ring	-
8	T39401	1	GEAR CASE	(USE IF AVAILABLE)
9	JD7682	2	BALL BEARING	-
10	T47029	1	GEAR	INPUT, (SUB FOR T39404)
11	JD8223	1	Bearing Cup	-
12	JD9027	1	Bearing Cone	-
13	T39405	1	SHAFT	INTERMEDIATE
14	T24862	1	Pinion	FINAL DRIVE
15	T40533	1	GEAR	INTERMEDIATE
16	T29461	1	GEAR	FINAL DRIVE
17	T40256	9	SCREW	-
18	C12180	9	Washer	(SUB FOR M930T, THIS APPLICATION)
19	AT40603	1	Seal	-
..	AT38195	1	DRIVE	CONTAINS ALL PARTS ON THIS PAGE EXCEPT KEYS 1, 17 AND 18 AND ALL PARTS ON PAGE 45-2, (SUB AT69281)
..	AT69281	1	DRIVE	CONTAINS ALL PARTS ON THIS PAGE EXCEPT KEYS 1, 17 AND 18 AND ALL PARTS ON PAGE 45-2, (SUB FOR AT64573)
..	-	1	Part 23	( AT72548 NO LONGER AVAILABLE, ORDER COMPONENTS) CONTAINS ALL PARTS ON THIS PAGE EXCEPT KEYS 1, 17 AND 18 AND ALL PARTS ON PAGE 45-2

TRACK DRIVE GEAR CASE AND GEARS [01F18]
