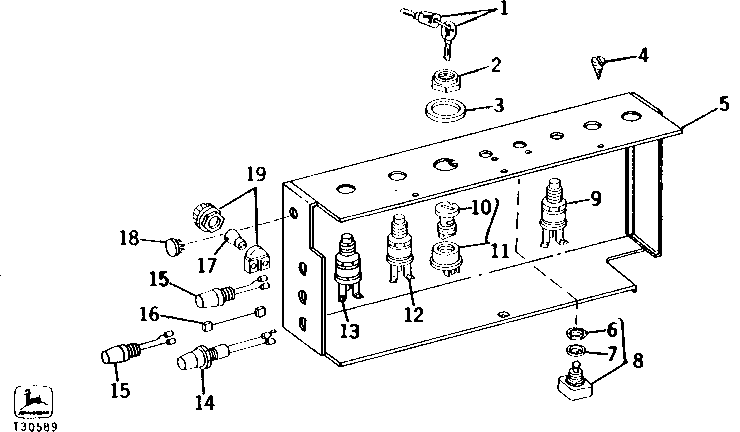

SWITCH PANEL AND SWITCHES (SERIAL NO. -003872) [02H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195302	1	Key	(SUB FOR AR51481 AND AT145929) (SET OF TWO)
2	R44342	1	Nut	-
3	24H1447	1	Washer	1-1/32" X 1-1/2" X 0.036"
4	37H95	4	Screw	(SUB FOR 37H47) DRIVE, NO. 8 X 1/2"
5	AT41411	1	PANEL	-
6	R44097	1	Nut	-
7	R44096	1	Lock Plate	-
8	AU41449	2	TOGGLE/ROCKER SWITCH	-
9	AR20235	1	Switch	-
10	-	1	Part 10	IGNITION SWITCH ( AR47459 USE IF AVAILABLE)
11	AR58126	1	Rotary Switch	IGNITION WITH KEYS
12	R39554	1	Switch	STARTER, (SUB FOR AR20235, THIS APPLICATION)
13	R39554	1	Switch	ETHER, (SUB FOR AR20235, THIS APPLICATION)
14	DD12317	1	Fuse Holder	(SUB FOR AT25801)
14	AT170066	1	KNOB	(SUB FOR AT16799)
14	AT28061	1	FUSE	5 AMP
15	AT164924	2	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) WITH KNOB AND FUSE
15	AT170066	1	KNOB	(SUB FOR AT16799)
15	AH76113	1	FUSE	20 AMP
15	T82427	1	WASHER	(USE WITH FUSE HOLDER)
16	AT41412	1	WIRING LEAD	FUSE TO TWO SPEED TOGGLE SWITCH
17	AA4927R	1	BULB	12-VOLT
18	M42229	1	PLUG	(USED WHEN NOT EQUIPPED WITH COLD WEATHER STARTING AID) (SUB FOR R32234)
19	AU42189	1	SWITCH	HEATER, WITH BULB AND KNOB

SWITCH PANEL AND SWITCHES (SERIAL NO. -003872) [02H19]
