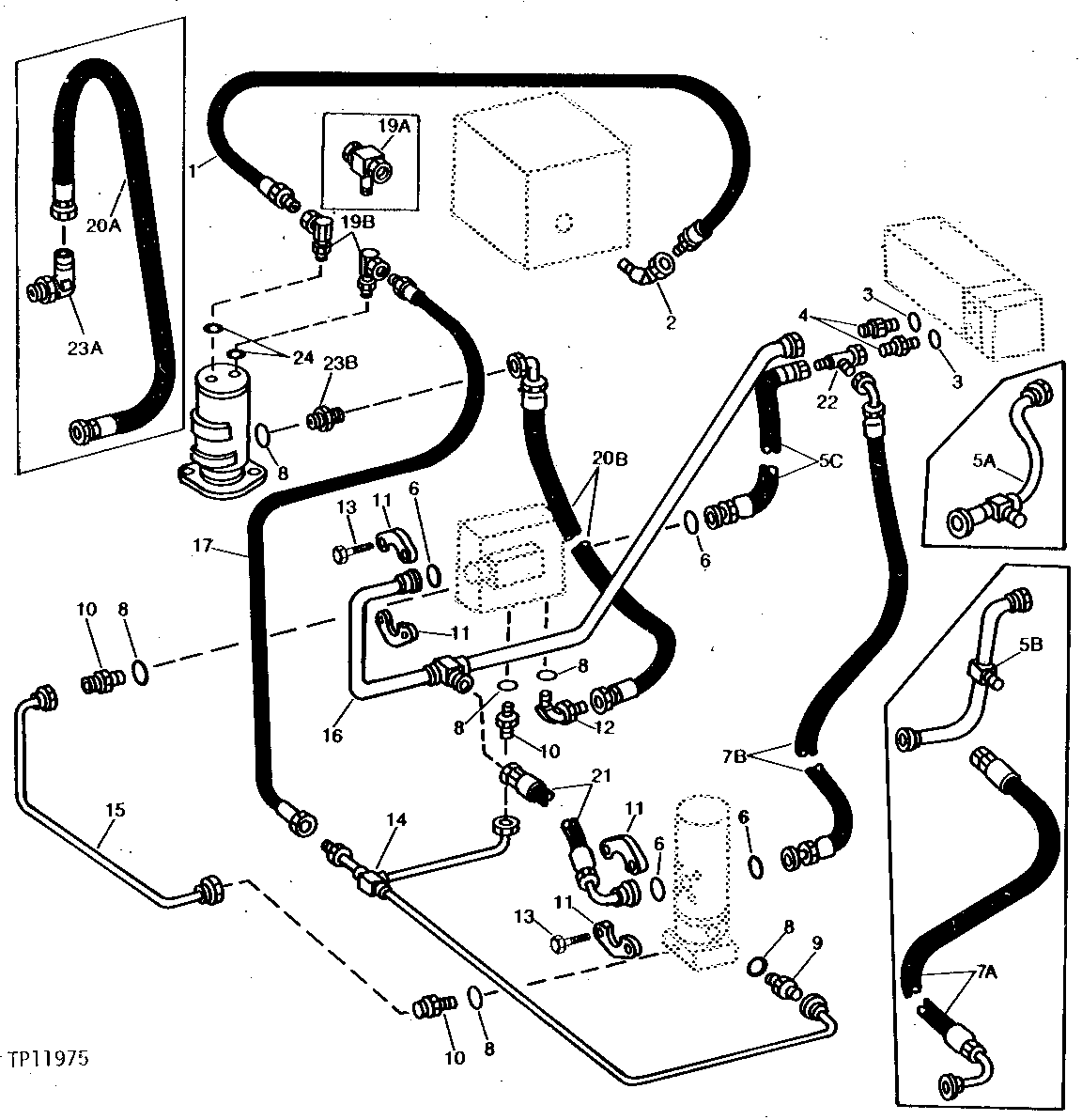

SWING MOTOR AND CROSSOVER VALVE HYDRAULICS [02C23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AU43761	1	HYDRAULIC HOSE - FABRICATE	1 575 MM LONG (1/2" X 62") ROTARY MANIFOLD TO RESERVOIR
2	JD184	1	Elbow Fitting	-
3	R29936	2	O-Ring	-
4	T26767	2	Fitting	(SUB FOR AU43250)
6	N131838	4	O-Ring	(SUB FOR U10289, THIS APPLICATION)
8	R26448	6	O-Ring	-
9	R26892	1	Fitting	(SUB FOR T42392)
10	R52721	4	ADAPTER FITTING	-
11	R29867	8	Flange Fitting	SPLIT FLANGE HALF
12	AT38033	1	Elbow Fitting	90°, (SUB FOR AR26722, THIS APPLICATION)
13	19H3205	16	Cap Screw	7/16" X 1-1/2"
14	AT41426	1	OIL LINE	VALVE BLOCK TO SWING MOTOR
15	AT41428	1	TUBE	VALVE BLOCK TO SWING BRAKE
15	AT50619	1	OIL LINE	SWING BRAKE
16	AT41423	1	TUBE	CONTROL VALVE TO CROSSOVER, (SUB AT48176 AND AT48177)
16	AT48176	1	TUBE	CONTROL VALVE TO CROSSOVER RELIEF
16	AT56574	1	TUBE	-
17	AT41425	1	HYDRAULIC HOSE - FABRICATE	509 MM LONG (1/2" X 20")
18	JD151	1	ADAPTER FITTING	-
21	AT48177	1	HYDRAULIC HOSE	-
21	AT55895	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT41421)
22	AT62908	1	TEE FITTING	-
24	R47150	2	O-Ring	(USE WITH AT79696)
5A	AT41422	1	LINE	CONTROL VALVE TO CROSSOVER RELIEF VALVE
5B	AT48175	1	LINE	CONTROL VALVE TO CROSSOVER RELIEF, (SUB AT66471, AT66472 AND AT62908)
5C	AT66471	1	HYDRAULIC HOSE - FABRICATE	787 MM LONG (1-5/16" X 1-1/4" X 31")
7A	AT55895	1	HYDRAULIC HOSE - FABRICATE	TUBE TO SWING MOTOR, (SUB FOR AT41421)
7A	AT48177	1	HYDRAULIC HOSE	-
7B	AT66472	1	HYDRAULIC HOSE	-
19A	AN11336	1	Tee Fitting	(USE WITH AT73540)
19B	AU11849	2	ADAPTER FITTING	90°, (USE WITH AT79696)
20A	AT37051	1	HYDRAULIC HOSE - FABRICATE	712 MM LONG (9/16" X 28")
20B	AT71082	1	Hydraulic Hose	-
23A	AT35121	1	Elbow Fitting	90°
23B	R27212	1	Fitting	-

SWING MOTOR AND CROSSOVER VALVE HYDRAULICS [02C23]
