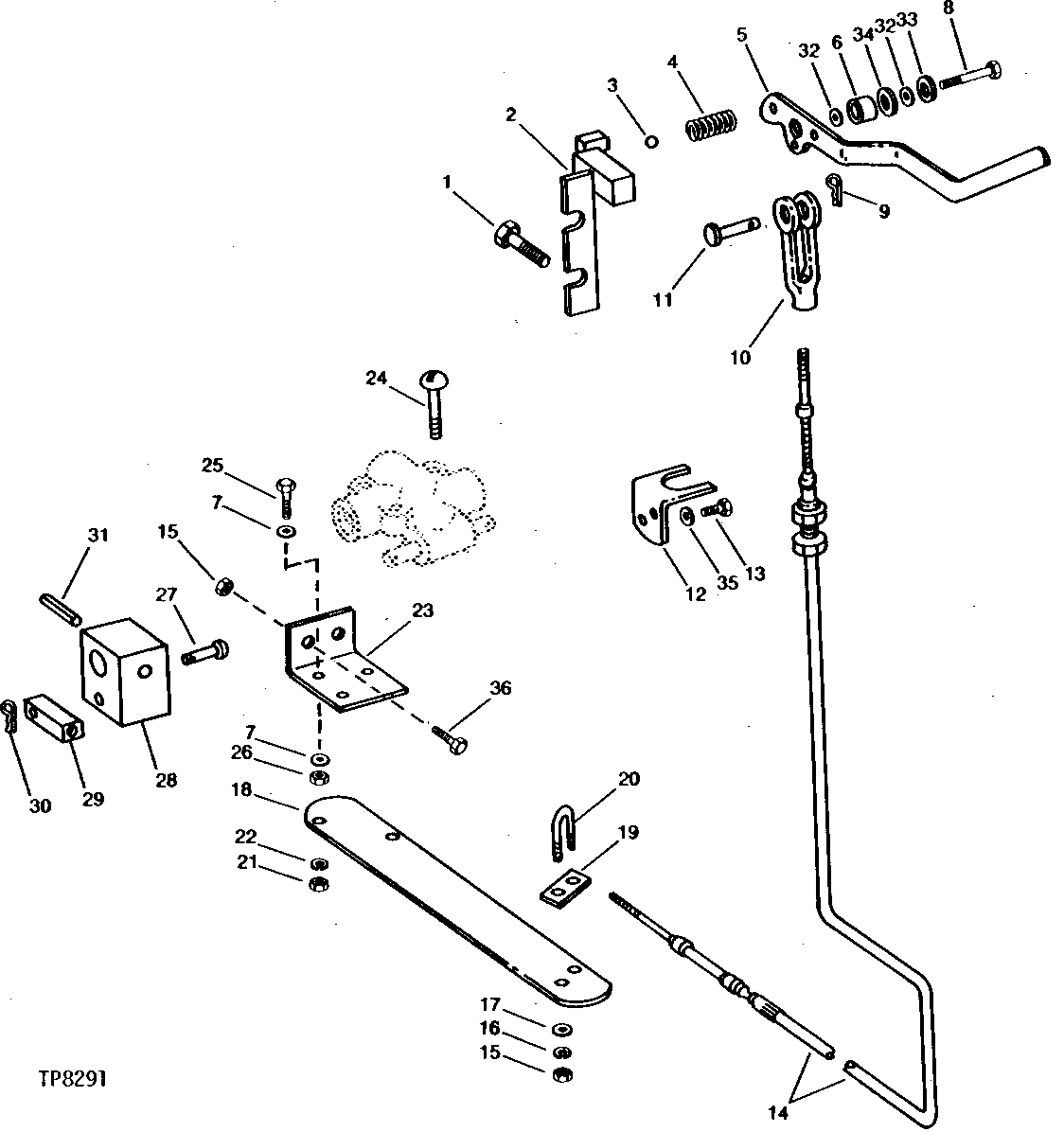

PILOT CONTROL MANUAL SHUT-OFF (WITH PILOT CONTROLS) (SERIAL NO. 402207- ) [02B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22728	2	SCREW	-
2	AT69828	1	BRACKET	-
3	400R	1	Ball	(SUB FOR T39666)
4	T44090	1	SPRING	-
5	T72660	1	LEVER	-
5	T75189	1	LEVER	-
6	U13177	1	BUSHING	(SUB T75190)
6	T75190	1	SPACER	-
7	24H1305	4	Washer	13/32" X 13/16" X 0.065"
8	19H3239	1	Cap Screw	3/8" X 1-1/4"
9	11M7079	1	Cotter Pin	2.500 X 12 MM
10	T184870	1	YOKE	(SUB FOR T38708)
11	H858R	1	PIN FASTENER	-
12	T71862	1	CLAMP	(SUB T75191, T75188, (2) 24H1821 AND (2) 19H1948)
12	T75191	1	ANGLE	-
13	37H137	2	Screw	0.190" X 5/8"
13	19H1948	2	Cap Screw	1/4" X 3/4"
14	AT107238	1	CABLE	(SUB FOR AT69360 ALONG WITH T107033)
15	14H786	4	Nut	1/4"
16	12H302	2	Lock Washer	1/4"
17	24H1287	2	Washer	9/32" X 5/8" X 0.065"
18	T71876	1	BRACKET	-
19	T15021	1	STRAP	-
20	T13988	1	U-BOLT	-
21	14H778	3	Nut	0.190"
22	12H246	3	LOCK WASHER	0.190"
23	T71873	1	ANGLE	-
24	21H1274	3	Screw	0.190" X 2-1/2"
25	19H3483	2	Cap Screw	3/8" X 1-1/8"
26	14H812	2	NUT	3/8"
27	T48111	1	Pin Fastener	-
28	T71874	1	BELLCRANK	-
29	T71875	1	YOKE	-
30	11M7082	1	Cotter Pin	2.500 X 25 MM
31	34H327	1	Spring Pin	5/16" X 1"
32	T35704	1	SHIM	-
33	24H1308	1	Washer	13/32" X 1" X 0.134"
34	M49960	1	WASHER	-
35	24H1646	2	Washer	17/64" X 3/4" X 0.060"
36	19H1948	2	Cap Screw	1/4" X 3/4"

PILOT CONTROL MANUAL SHUT-OFF (WITH PILOT CONTROLS) (SERIAL NO. 402207- ) [02B21]
