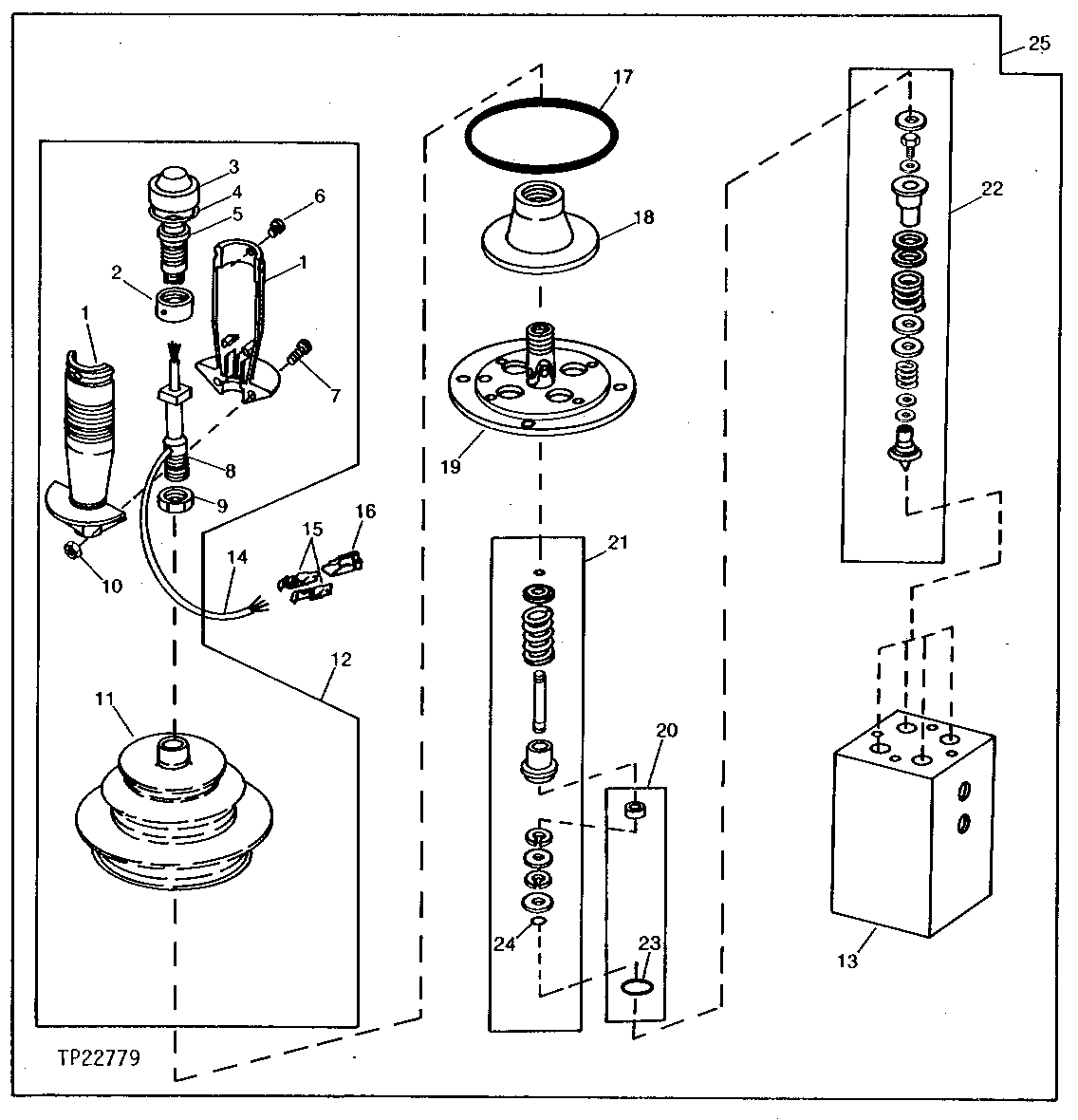

PILOT CONTROL HAND CONTROLLER (WITH PILOT CONTROLS) (SERIAL NO. 402207- ) [02B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76406	1	HANDLE	(SET OF TWO HALVES)
1	T75205	1	HANDLE	(SET OF TWO HALVES) (SUB T76406 AND T76407)
2	T75209	1	LOCKING COLLAR	(SUB T76406 AND T76407)
2	T76407	1	LOCKING COLLAR	-
3	T75206	1	BOOT	-
4	T75207	1	RING	-
5	AT72944	1	SWITCH	-
6	21M7044	2	SCREW	M3 X 0.5 X 5
7	19M7702	2	Screw	M4 X 0.7 X 10
8	T103314	1	ROD	(SUB FOR T75208)
9	14M7141	1	Nut	M14 X 2
10	14M7139	2	Nut	M4 X 0.7
11	T71872	1	BOOT	-
12	-	1	Part 15	( AT74693 NO LONGER AVAILABLE)
12	AT68907	1	LEVER	(SUB AT74693)
13	-	1	Part 16	(SUB AT130070 OR AT184914)
14	AT82695	1	WIRING HARNESS	-
15	T34067	2	Elec. Connector Terminal	-
16	T28586	1	Electrical Connector Assy	-
17	T103408	1	O-RING	(SUB FOR T35893)
18	-	1	Part 21	(SUB AT130070 OR AT184914)
19	AT139449	1	PLATE	-
20	AT68909	1	SEAL KIT	-
21	-	4	Part 24	( AT68908 NO LONGER AVAILABLE) (SUB AT130070 OR AT184914)
22	-	4	Part 25	( AT68910 NO LONGER AVAILABLE) (SUB AT130070 OR AT184914)
23	P46051	4	O-Ring	-
24	T26215	1	O-RING	-
25	-	2	Part 28	(LEFT) ( AT68905 NO LONGER AVAILABLE) (SUB AT130070, (2) T34067 AND T28586)
-	-	1	Part 29	(RIGHT) ( AT71746 NO LONGER AVAILABLE) (SUB AT184914, (2) T34067 AND T28586)
