OPERATING CONTROL LEVERS AND PEDALS (WITHOUT PILOT CONTROLS) [02A23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

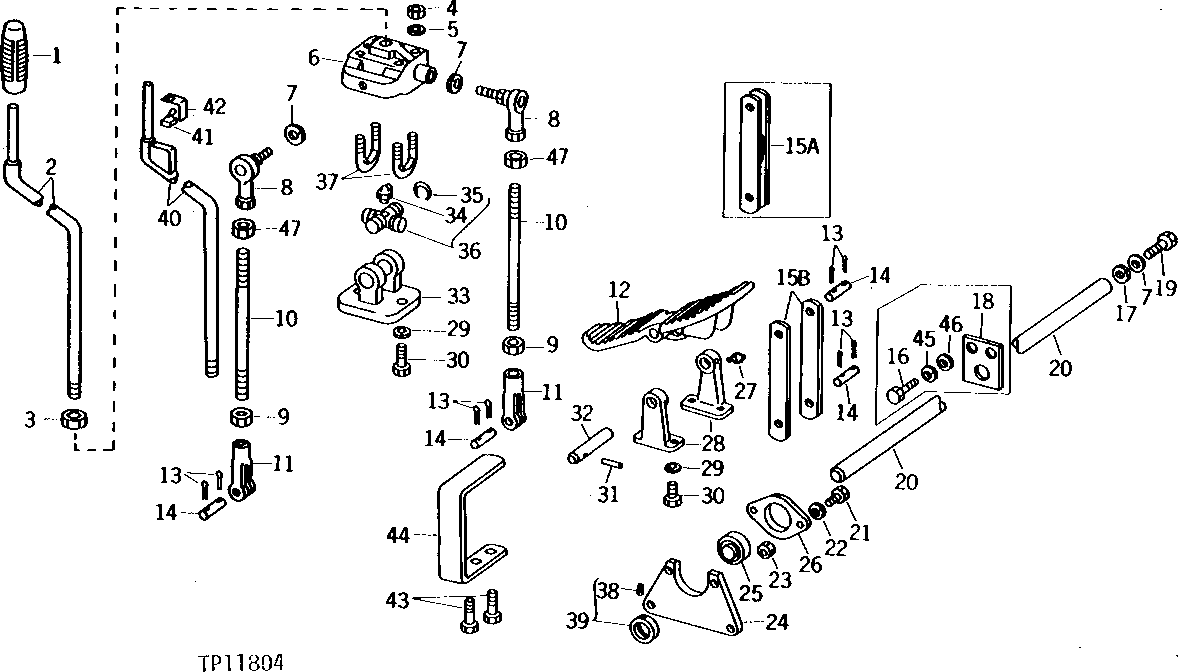

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U43703	2	GRIP	-
2	U45618	1	LEVER	-
3	14H794	2	Nut	3/4"
4	14H860	8	Nut	1/4"
5	12H302	8	Lock Washer	1/4"
6	U46256	2	PIVOT	-
7	12H301	6	Lock Washer	1/2"
8	AU43742	4	BALL JOINT	-
9	14H826	4	Nut	1/2"
10	U46251	4	STUD	-
11	U16202	4	YOKE	-
12	T35284	2	PEDAL	-
13	11M7015	16	Cotter Pin	3.200 X 25 MM
14	U46245	8	PIN FASTENER	-
16	19H2898	2	Cap Screw	1/2" X 1-1/4"
17	24H1788	4	WASHER	17/32" X 1-1/8" X 0.060"
18	U46379	1	SUPPORT	-
19	19H2880	2	CAP SCREW	1/2" X 1-3/4"
20	U45628	1	PIN	-
21	03H1709	12	Bolt	5/16" X 1"
22	12H303	12	Lock Washer	5/16"
23	14H785	12	Nut	5/16"
24	U46252	6	LINK	-
25	JD8555	6	BALL BEARING	-
26	L2287C	12	Pressed Flanged Housing	-
27	JD7806	2	Lubrication Fitting	-
28	U45634	4	SUPPORT	-
29	12H304	12	Lock Washer	3/8"
30	19H1648	12	Cap Screw	3/8" X 3/4"
31	34H284	2	Spring Pin	3/16" X 1-1/4"
32	U45633	2	PIN FASTENER	-
33	U46255	2	BASE	-
34	JD7763	2	Lubrication Fitting	45°, 1/8"
35	BP13669	8	Snap Ring	-
36	AE23716	2	Cross And Bearing Assembly	-
37	AU43783	4	BOLT	(SUB T66665)
37	T66665	4	U-BOLT	-
38	E18630	1	SET SCREW	-
39	JD8554	6	Eccentric Locking Collar	-
40	AT41794	1	LEVER	CONTROL, LEFT
41	AT41793	1	TOGGLE SWITCH	(OPERATES THE HOUSE LOCK)
42	T42972	1	ANGLE	-
43	T45159	1	BRACKET	TRAVEL PEDAL
44	19H1815	4	Cap Screw	1/2" X 1-1/4"
45	12H301	2	Lock Washer	1/2"
46	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
47	14H856	4	Nut	1/2"
15A	AU43739	2	LINK	(SUB (2) T61265)
15B	T61265	4	LINK	-
