INSTRUMENT PANELS AND INSTRUMENTS [02H16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

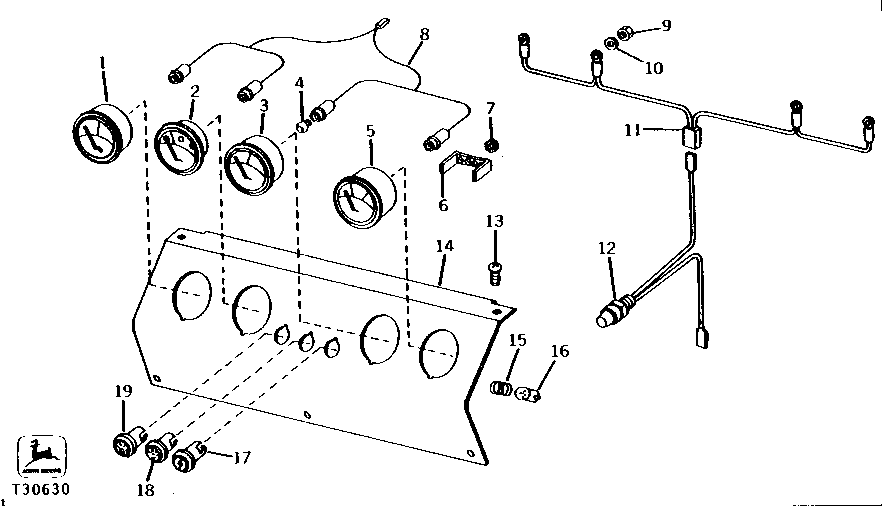

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT41209	1	GAUGE	HYDRAULIC OIL TEMPERATURE
2	AT61468	1	GAUGE	(SUB FOR AT39733) FUEL
3	-	1	Part 3	WATER TEMPERATURE (STEWART-WARNER) (SUB AT149018) (SUB FOR AT37410) ( AT61467 USE IF AVAILABLE)
3	AT104755	1	TEMPERATURE GAUGE	(K) WATER TEMPERATURE (VDO)
4	T40990	4	BULB	(SUB FOR AT22970, THIS APPLICATION)
5	AT39728	1	GAUGE	ENGINE OIL PRESSURE
6	T39395	4	BRACKET	-
6	T118593	1	BRACKET	(K)
7	14H631	1	Nut	0.190"
7	14M7139	2	Nut	(K) (SUB FOR 14M7100)
8	AT41803	1	WIRING HARNESS	LIGHT GAUGE, (SUB FOR AT41210)
9	14H650	4	Nut	5/16"
10	12M7084	4	Lock Washer	4.300 MM
11	AU43578	1	WIRING HARNESS	GAUGE (WITHOUT PILOT CONTROLS)
11	AT68919	1	WIRING HARNESS	GAUGE (WITH PILOT CONTROLS)
12	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) (WITHOUT PILOT CONTROLS)
12	AT170066	1	KNOB	(SUB FOR AT16799) FUSE HOLDER
12	AH76113	1	FUSE	20 AMP
12	T82427	1	WASHER	(USE WITH FUSE HOLDER)
13	T14744	5	SCREW	1/4" X 5/8" (WITHOUT PILOT CONTROLS)
14	T42291	1	PANEL	(WITHOUT PILOT CONTROLS)
15	R30378	3	Spring	-
16	AR55694	3	BULB	-
17	AT48673	1	LENS	ALTERNATOR, (SUB FOR AR45438)
18	AR45439	1	LENS	AIR FILTER
19	AR45446	1	LENS	HYDRAULIC OIL FILTER

INSTRUMENT PANELS AND INSTRUMENTS [02H16]
