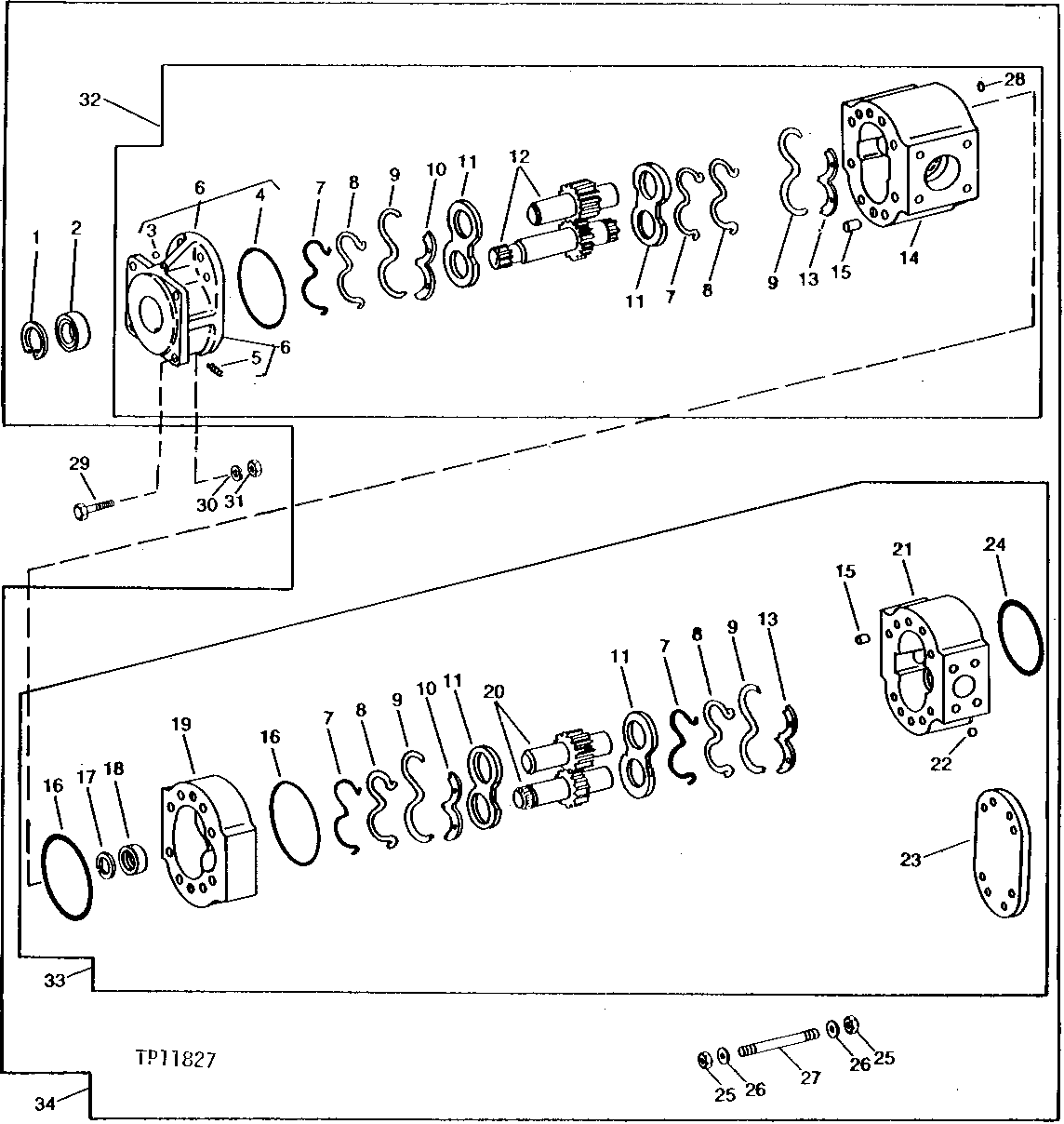

HYDRAULIC PUMP (TYRONE) (SERIAL NO. 007578- ) [01H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	(A) (B)
2	T74339	1	SEAL	(A) (B) (SUB FOR U44858)
3	400R	1	Ball	6.35 MM (1/4")
4	T41418	1	RING	(A) (B)
5	15H558	1	Pipe Plug	HEX. CTSK., 1/8"
6	AT72249	1	FLANGE	FLANGE
7	-	4	Part 7	(A) (B) ( U44856 USE IF AVAILABLE)
8	-	4	Part 8	(A) ( T61673 USE IF AVAILABLE)
9	-	4	Part 9	(A) ( U44851 USE IF AVAILABLE)
10	T74623	2	PLATE	(A) (SUB FOR U44848, THIS APPLICATION)
11	T74622	4	PLATE	(A) (SUB FOR T75110, THIS APPLICATION)
12	-	1	Part 12	GEAR, (SUB AT68548)
13	T74624	2	PLATE	(A) (SUB FOR U44849, THIS APPLICATION)
14	-	1	Part 14	(SUB AT68548)
15	U44854	6	DOWEL PIN	(SUB FOR T64787)
16	T41419	2	RING	(A) (B)
17	T23694	1	Snap Ring	-
18	T35445	1	COUPLING	-
19	-	1	Part 19	(SUB AT68547)
20	-	1	Part 20	GEAR, (SUB AT68547)
21	-	1	Part 21	(SUB AT68547)
22	400R	1	Ball	-
23	T74625	1	PLATE	-
24	P46129	1	O-Ring	(A) (B)
25	U44860	16	NUT	-
26	U44865	16	WASHER	-
27	T64788	8	STUD	(USE WITH AT68547)
27	T74626	8	ROD	(USE WITH AT72250)
28	R26448	8	O-Ring	(A) (B) INSTALL ONE ON EACH TIE-BOLT BETWEEN AT61562 AND AT61564
29	19H2880	4	CAP SCREW	1/2" X 1-3/4"
30	T20168	4	Washer	-
31	14H1040	4	Nut	1/2", (SUB FOR 14H809)
32	-	1	Part 33	( AT68548 NO LONGER AVAILABLE) (SUB AT72248 IF AVAILABLE)
33	-	1	Part 34	( AT68547 NO LONGER AVAILABLE) (SUB AT72250 IF AVAILABLE)
34	AT63059	1	PUMP	(SUB FOR AT63058)
..	AT72247	1	KIT	MAJOR REPAIR, (SUB FOR AT61568)
..	AT72246	1	SEAL KIT	MINOR REPAIR, (SUB FOR AT40398)

HYDRAULIC PUMP (TYRONE) (SERIAL NO. 007578- ) [01H08]
