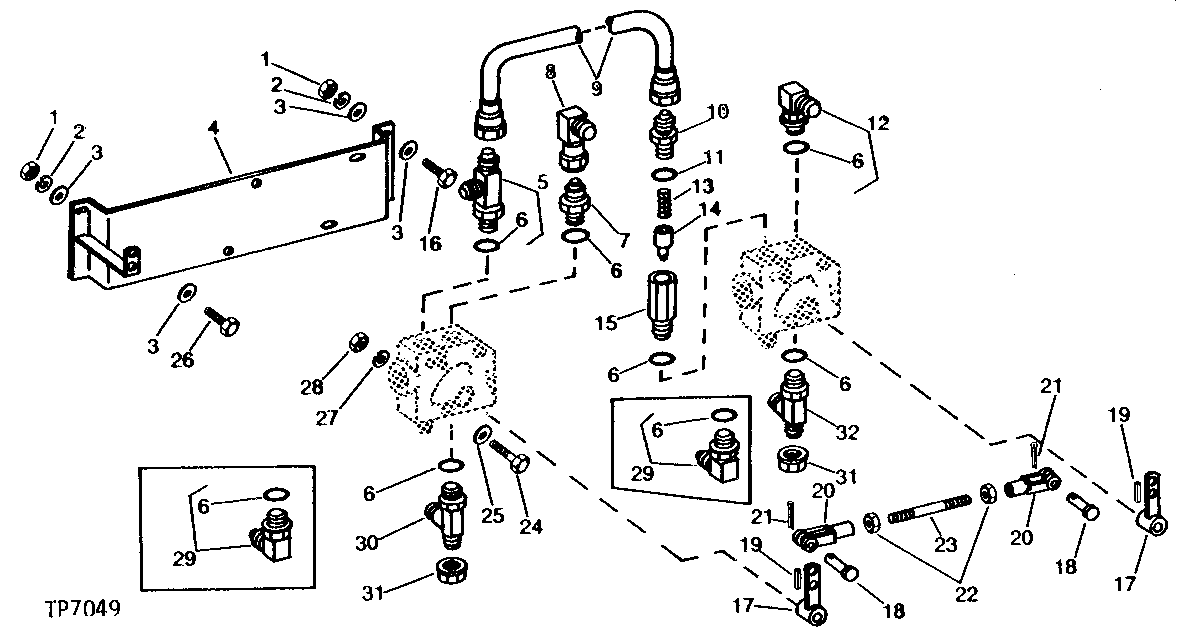

FLOW DIVIDER, BRACKET, AND OIL LINE [02C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1040	3	Nut	1/2", (SUB FOR 14H809)
2	12H301	3	Lock Washer	1/2"
3	24H1254	6	Washer	17/32" X 1-1/8" X 0.105"
4	AT34520	1	BRACKET	-
5	X20R5OX-S	1	TEE FITTING	(SUB FOR AT31891)
6	R29936	6	O-Ring	-
7	T26767	1	Fitting	(SUB FOR AU43250)
8	AT33917	1	ELBOW FITTING	SWIVEL 90°, (SUB FOR AR29422)
9	AT34467	1	LINE	-
10	T34433	1	ADAPTER FITTING	(SUB FOR AT34770 AND T50129) (ALSO ORDER U12547)
11	U12547	1	O-Ring	(SUB FOR F3171R)
12	X2503-16-16	1	ELBOW FITTING	(SUB FOR AU42832) 90° ADJUSTABLE
13	T26072	1	SPRING	-
14	T35780	1	CHECK VALVE	-
15	T35781	1	FITTING	-
16	19H2993	2	Cap Screw	1/2" X 1-1/2"
17	AT34524	2	HANDLE	-
18	L4667T	2	PIN FASTENER	(SUB R662R AND 11M7082)
18	R662R	1	PIN FASTENER	-
19	34H312	2	Spring Pin	1/4" X 1"
20	M3742T	2	Yoke	-
21	11M7077	2	Cotter Pin	1.600 X 25 MM, (USE WITH L4667T)
21	11H234	2	Cotter Pin	3/32" X 1", (USE WITH R662R)
22	14H649	2	Nut	1/4"
23	T35554	1	STUD	-
24	19H2855	4	Cap Screw	3/8" X 3-1/4"
25	24H1308	2	Washer	13/32" X 1" X 0.134"
26	19H2469	1	Cap Screw	1/2" X 2-1/4"
27	12H304	4	Lock Washer	3/8"
28	14H812	4	NUT	3/8"
29	X2503-16-16	2	ELBOW FITTING	(SUB FOR AU42832) 90° ADJUSTABLE
30	X20R5OX-S	1	TEE FITTING	(SUB FOR AT31891) (WITHOUT PILOT CONTROL)
30	AT71080	1	FITTING	(WITH PILOT CONTROL)
31	U45826	2	Fitting	-
32	X20R5OX-S	1	TEE FITTING	(SUB FOR AT31891)

FLOW DIVIDER, BRACKET, AND OIL LINE [02C12]
