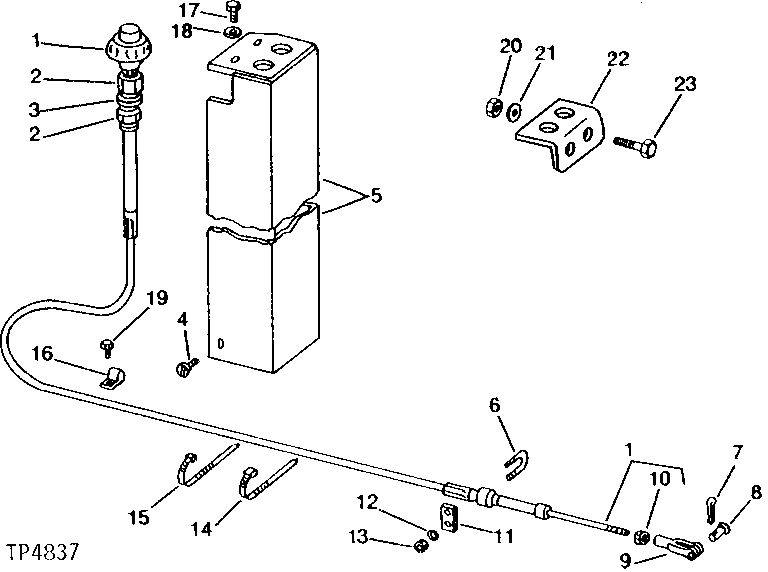

FLOW CONTROL CABLE AND CONTROL PANEL [02C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT41410	1	PUSH PULL CABLE	-
2	14H904	2	Nut	3/4"
3	12H327	1	Lock Washer	INTERNAL-TOOTH, 3/4"
4	37H20	3	SCREW	NO. 8 X 3/8" (WITHOUT PILOT CONTROLS)
5	AT34529	1	PANEL	(WITHOUT PILOT CONTROLS)
6	T13988	1	U-BOLT	-
7	11M7077	1	Cotter Pin	1.600 X 25 MM, (USE WITH L4667T)
7	11M7082	1	Cotter Pin	2.500 X 25 MM, (USE WITH R662R)
8	L4667T	1	PIN FASTENER	(SUB R662R AND 11H234)
8	R662R	1	PIN FASTENER	-
9	M3742T	1	Yoke	-
10	14H649	1	Nut	1/4"
11	T15021	1	STRAP	-
12	12H302	2	Lock Washer	1/4"
13	14H786	2	Nut	1/4"
14	H77698	1	Tie Band	(SUB FOR AT30417 AND T44946)
15	R44302	2	Tie Band	-
16	T21101	1	Clamp	-
17	37H95	2	Screw	(SUB FOR 37H47) DRIVE, NO. 8 X 1/2" (WITHOUT PILOT CONTROLS)
18	24H1283	2	Washer	7/32" X 1/2" X 0.049", (WITHOUT PILOT CONTROLS)
19	19H2127	1	Cap Screw	5/16" X 7/8"
20	M63707	2	Lock Nut	(SUB FOR (2) P43893) (WITH PILOT CONTROLS)
21	24H1821	2	Washer	9/32" X 47/64" X 1/16", (WITH PILOT CONTROLS)
22	T71894	1	ANGLE	(WITH PILOT CONTROLS)
23	19H1948	2	Cap Screw	1/4" X 3/4", (WITH PILOT CONTROLS)

FLOW CONTROL CABLE AND CONTROL PANEL [02C11]
