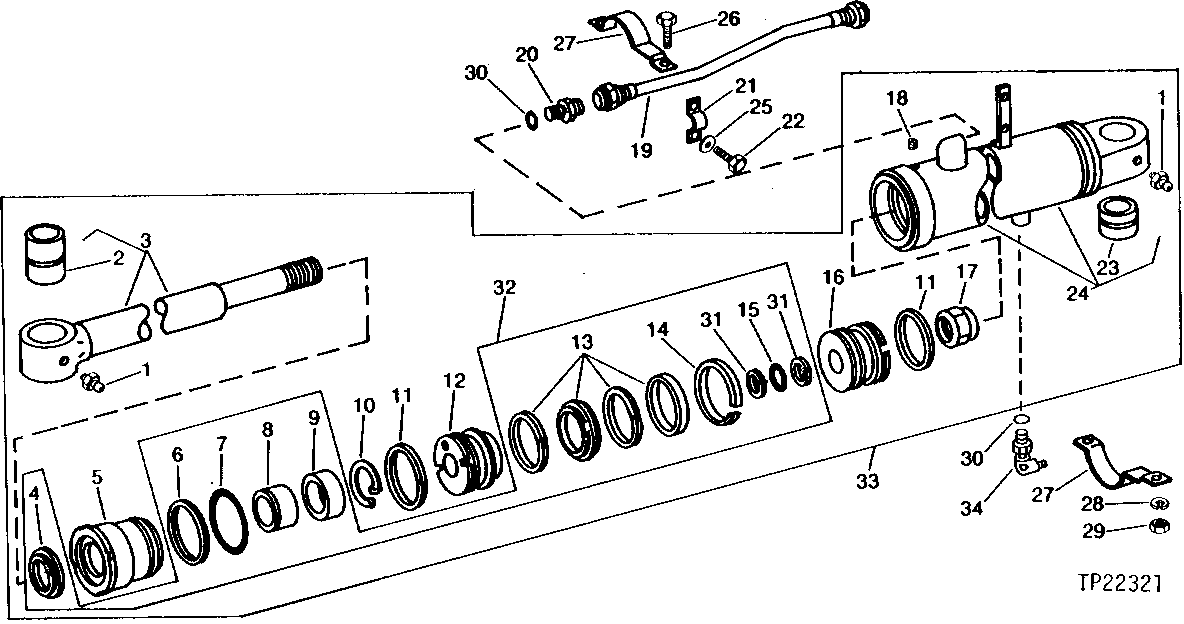

CROWD CYLINDER (SERIAL NO. 501307- ) [02E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	2	Lubrication Fitting	1/8"
2	U45171	1	BUSHING	-
3	RE21407	1	HYDRAULIC CYLINDER ROD	(SUB FOR AU43246)
4	RE21404	1	SEAL	-
5	R82415	1	GUIDE	(SUB FOR R69277)
6	R78818	1	Back-Up Ring	(SUB FOR T38484, THIS APPLICATION)
7	T38485	1	O-Ring	-
8	R82414	1	WEAR RING	-
9	R76781	1	SEAL	-
10	-	1	Part 10	( U45829 NO LONGER AVAILABLE)
11	U46616	2	PISTON RING	-
12	-	1	Part 12	-
13	RE11920	1	SEAL	-
14	T42985	1	WEAR RING	-
15	P50631	1	O-Ring	-
16	R81110	1	PISTON	(SUB FOR R77993 AND T42984) (ALSO ORDER RE12314, RE15907, (2) U46616, P50631, (2) R78393 AND U45223)
17	U45223	1	LOCK NUT	-
18	22H1077	1	SET SCREW	1/4" X 5/16"
19	AU43249	1	LINE	-
20	T26767	1	Fitting	-
21	T34957	1	CLAMP	-
22	19H1813	2	CAP SCREW	5/16" X 5/8"
23	U43784	1	BUSHING	-
24	RE19067	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT41908)
25	12H303	2	Lock Washer	5/16"
26	19H3239	2	Cap Screw	3/8" X 1-1/4"
27	T35726	2	CLAMP	-
28	12H304	2	Lock Washer	3/8"
29	14H812	2	NUT	3/8"
30	R29936	2	O-Ring	-
31	R81190	2	BACK-UP RING	(SUB FOR A33953, THIS APPLICATION)
32	RE21401	1	KIT	(SUB FOR RE12314) (ALSO ORDER RE15907)
33	RE21406	1	HYDRAULIC CYLINDER	(SUB FOR RE12258) (ALSO ORDER X2503-16-16)
34	X2503-16-16	1	ELBOW FITTING	(USE WITH U44756) (SUB FOR AU42832)
34	U44756	1	FITTING	HOSE TO ELBOW (NOT ILLUSTRATED)

CROWD CYLINDER (SERIAL NO. 501307- ) [02E16]
