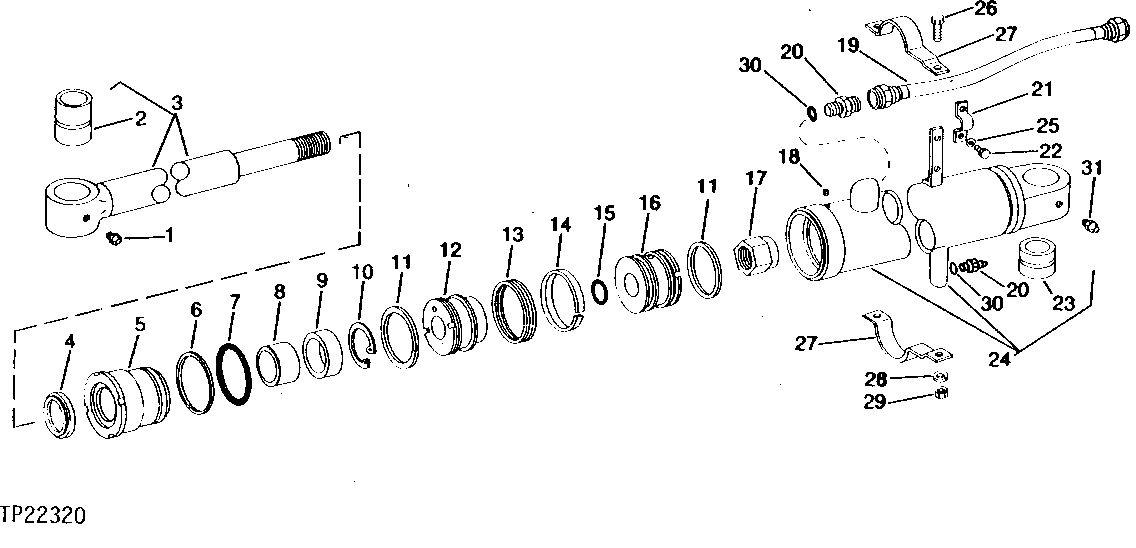

CROWD CYLINDER (SERIAL NO. -501306) [02E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	2	Lubrication Fitting	1/8"
2	U45171	1	BUSHING	-
3	AU43246	1	ROD	-
4	U45832	1	SEAL	(A)
5	R69277	1	GUIDE	(SUB FOR T38486)
6	R78818	1	Back-Up Ring	(A) (SUB FOR T38484, THIS APPLICATION)
7	T38485	1	O-Ring	(A)
7	T70176	1	O-Ring	(A)
8	U45830	1	PISTON RING	(A)
9	R76781	1	SEAL	(A) (SUB FOR T36188)
10	-	1	Part 11	( U45829 NO LONGER AVAILABLE)
11	U46616	2	PISTON RING	-
12	-	1	Part 13	(SEE KEY 16)
13	T52425	1	PACKING	(A) (SUB FOR T32937)
14	T42985	1	WEAR RING	(A)
15	P50631	1	O-Ring	(A)
16	R81110	1	PISTON	ONE-PIECE PISTON, (SUB FOR R77993 AND T42984) (ALSO ORDER RE15907, (2) U46616, P50631, (2) R78393 AND U45223)
17	U45223	1	LOCK NUT	-
18	22H842	1	SET SCREW	1/4" X 5/16"
19	AU43249	1	LINE	-
20	T26767	2	Fitting	(SUB FOR AU43250)
21	T34957	1	CLAMP	-
22	19H1813	2	CAP SCREW	5/16" X 5/8"
23	U43784	1	BUSHING	-
24	AT41908	1	HYDRAULIC CYLINDER BARREL	(SUB RE19067) (ALSO ORDER U44756 AND AU42832)
25	12H303	2	Lock Washer	5/16"
26	19H3239	2	Cap Screw	3/8" X 1-1/4"
27	T35726	2	CLAMP	-
28	12H304	2	Lock Washer	3/8"
29	14H812	2	NUT	3/8"
30	R29936	2	O-Ring	-
31	15H558	1	Pipe Plug	1/8"
..	AT41907	1	HYDRAULIC CYLINDER	LESS RETURN TUBE
..	AR105313	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT43470)

CROWD CYLINDER (SERIAL NO. -501306) [02E15]
