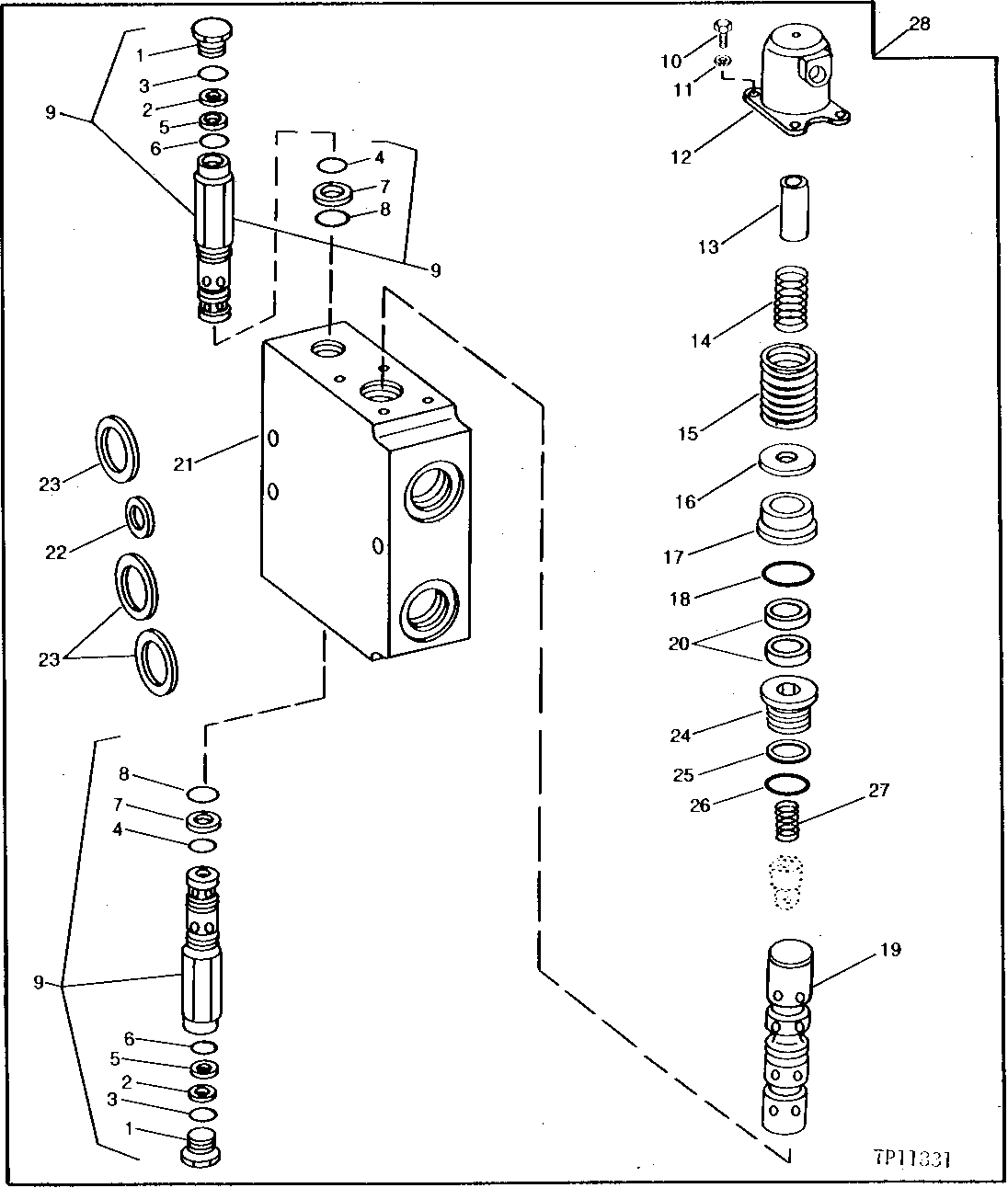

CROWD AND BUCKET VALVE (WITH PILOT CONTROLS) (SERIAL NO. 402207- ) [01I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AU43596)
2	-	1	Part 2	0.13 MM (.005") ( T31124 NO LONGER AVAILABLE) (SUB AT140057)
2	AT140057	1	SHIM	SHIM KIT CONTAINS SHIMS LISTED
2	-	1	Part 6	0.23 MM (.009") ( T31128 NO LONGER AVAILABLE) (SUB AT140057)
2	-	1	Part 5	0.20 MM (.008") ( T31127 NO LONGER AVAILABLE) (SUB AT140057)
2	-	1	Part 4	0.18 MM (.007") ( T31126 NO LONGER AVAILABLE) (SUB AT140057)
2	-	1	Part 3	0.16 MM (.006") ( T31125 NO LONGER AVAILABLE) (SUB AT140057)
3	P48347	2	O-Ring	-
4	P47908	2	O-Ring	-
5	R32588	2	Back-Up Ring	-
6	32246	2	O-Ring	-
7	U45858	4	Back-Up Ring	-
8	U45857	2	O-Ring	-
9	AU43596	2	PRESSURE RELIEF VALVE	20 685 KPA (207 BAR) (3000 PSI)
10	19H3554	8	Screw	1/4" X 0.880"
11	12H302	8	Lock Washer	1/4"
12	T71899	2	END	-
13	T71897	2	SLEEVE	-
14	T71896	2	SPRING	-
15	T71895	2	SPRING	-
16	T71900	2	PLATE	-
17	T71901	2	PLATE	-
18	U46335	2	O-Ring	(SUB FOR T71902)
19	-	1	Part 24	(SUB AT68930)
20	U45855	4	Washer	-
21	-	1	Part 26	(SUB AT68930)
22	U45844	1	WASHER	-
23	U45843	3	WASHER	-
24	T114585	2	BOLT	(SUB FOR T71898)
25	U45858	2	Back-Up Ring	-
26	U45857	2	O-Ring	-
27	U45851	2	SPRING	-
28	AT68930	2	SPOOL VALVE	-
