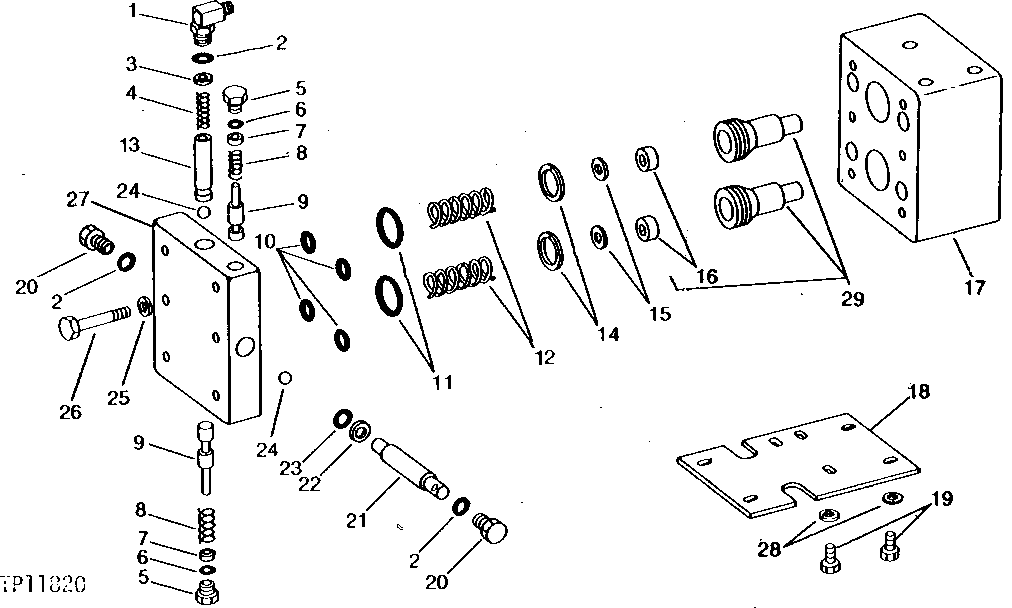

COUNTERBALANCE VALVES (AS REQUIRED) [02D24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1173	1	Adapter Fitting	(C) 90° ADJUSTABLE, (SUB FOR AR37017 AND AT32337)
2	T70177	3	O-Ring	(C) (SUB FOR R26448, THIS APPLICATION)
3	24H1283	1	Washer	(C) 7/32" X 1/2" X 0.049"
4	T41179	1	SPRING	(C)
5	R27216	2	DRAIN PLUG	(C) (SUB FOR R31631)
6	R26287	2	O-Ring	(C)
7	T41181	2	DISK	(C)
8	T44090	2	SPRING	(C)
9	T58121	2	POPPET	(C) (SUB FOR T41182 AND T44089)
10	A3917R	4	O-Ring	-
11	R1138R	2	O-Ring	34.519 X 3.531 MM (1-23/64" X 0.139") (SUB FOR N131820)
12	T26072	2	SPRING	-
13	T58122	1	POPPET	(C) (SUB FOR T41178)
14	T42775	2	PISTON RING	-
15	24H1136	10	Washer	11/32" X 11/16" X 0.065"
16	N123047	2	ORIFICE	-
17	-	1	Part 17	( T41183 USE IF AVAILABLE)
18	T41650	1	BRACKET	-
19	19H2676	7	Cap Screw	3/8" X 1"
20	R27218	2	Fitting Plug	(C)
21	T41180	1	SEAT	-
21	T51166	1	SEAT	(C)
22	R31136	1	BACK-UP RING	(C)
23	R10093	1	O-Ring	(C)
24	R26552	2	Ball	(C)
25	12H304	6	Lock Washer	3/8"
26	19H1726	6	Cap Screw	3/8" X 2-1/4"
27	AT61983	1	COVER	INCLUDES ALL PARTS IDENTIFIED BY (C) (MARKED T65306) (SUB FOR AT40173) (MARKED T41177)
28	24H1308	7	Washer	13/32" X 1" X 0.134"
29	AT75841	2	POPPET	(SUB FOR T41184 AND T62634)
..	AT77111	1	VALVE	L.H. (SUB FOR AT40172 AND AT60065)
..	AT77112	1	VALVE	R.H. (SUB FOR AT40608 AND AT60066)

COUNTERBALANCE VALVES (AS REQUIRED) [02D24]
