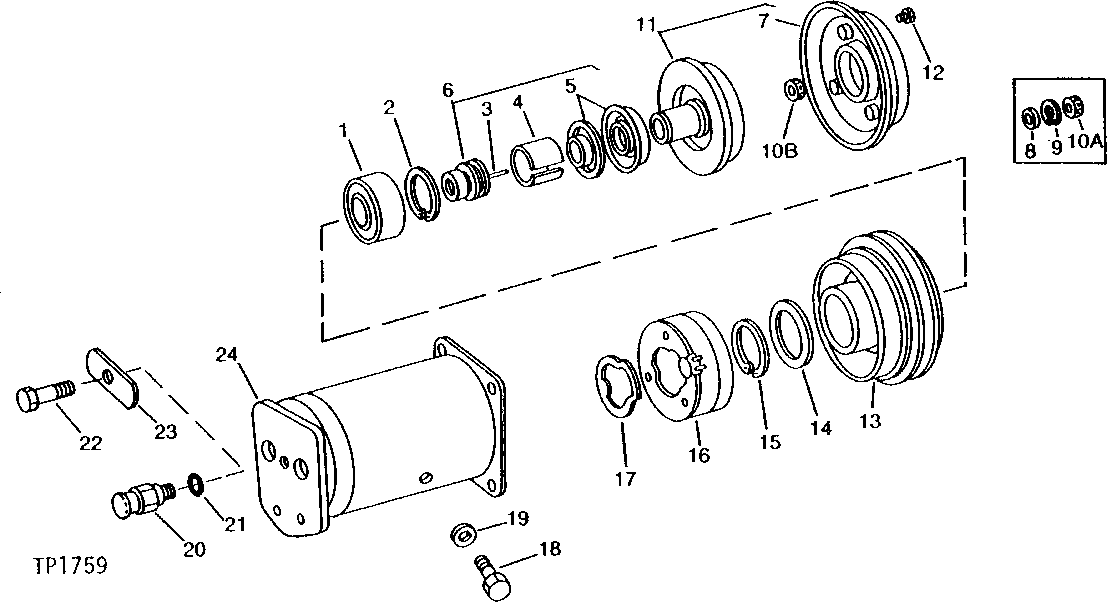

COMPRESSOR, COIL, CLUTCH AND PULLEY (SERIAL NO. 003873- ) [02H03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR71288	1	BALL BEARING	-
2	R47226	1	SNAP RING	-
3	R47229	1	SHAFT KEY	-
4	R47227	1	SEAL	-
5	AR71289	1	SHIELD	FRONT
6	AR71285	1	Valve Kit	COMPRESSOR SHAFT SEAL WITH PULLEY BEARING FRONT SHIELD
7	AR71290	1	COVER	DUST
8	R47230	1	WASHER	(SUB R69297, THIS APPLICATION)
9	R47231	1	SNAP RING	(SUB R69297, THIS APPLICATION)
11	AR71286	1	CLUTCH	WITH DUST COVER
12	37H32	3	SCREW	0.190" X 3/8"
13	AR71287	1	PULLEY	WITH BEARING AND SHIELDS
14	R54766	1	WASHER	-
15	R47224	1	SNAP RING	-
16	AR49803	1	ELECTRICAL COIL	-
17	R56246	1	GASKET	-
18	R47233	1	PLUG	-
19	R47234	1	WASHER	-
20	AR49808	1	VALVE	PRESSURE RELIEF
21	R47235	2	O-RING	-
22	19H2959	1	Cap Screw	3/8" X 2"
22	19M8600	1	Cap Screw	M10 X 50
23	R60171	1	STRAP	-
24	-	1	Part 26	(WITHOUT COIL, CLUTCH AND PULLEY) (SUB AR92109, TWO 19M7402, THREE 19M7139, 19M7170 AND 24M7036)
24	TY6665	1	COMPRESSOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (SUB FOR TY6628)
24	SE501456	1	COMPRESSOR	(REMANUFACTURED FOR TY6665)
..	AR77343	1	COMPRESSOR	12-VOLT, (SUB AR92109, (2) 19M7402, (3) 19M7139, 19M7170 AND 24M7036)
..	AR92109	1	COMPRESSOR	-
10A	R47232	1	NUT	(SUB R69297)
10B	R69297	1	FLANGE NUT	-

COMPRESSOR, COIL, CLUTCH AND PULLEY (SERIAL NO. 003873- ) [02H03]
