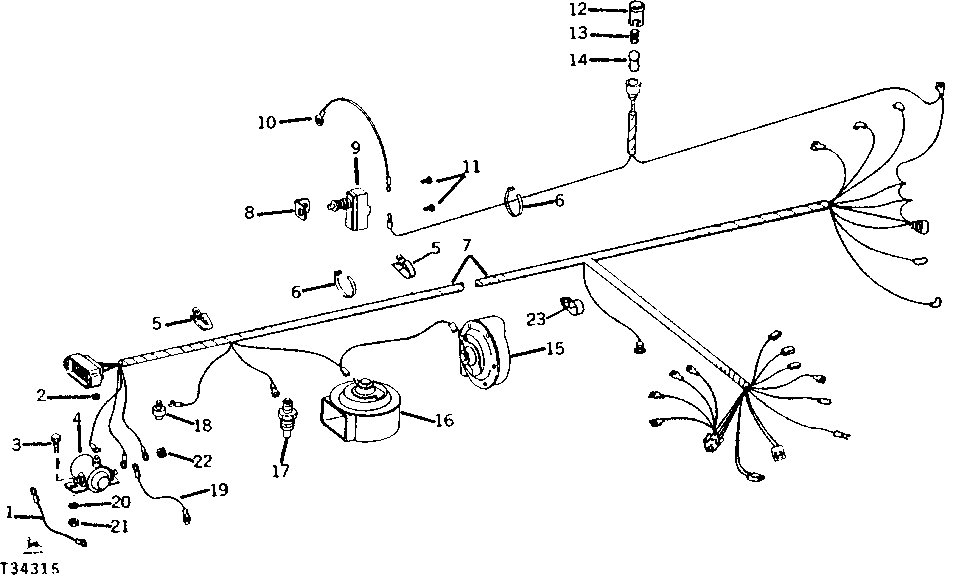

CAB WIRING HARNESS (SERIAL NO. -003872) [02H24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT107406	1	WIRING LEAD	(SUB FOR AU43605) STARTER RELAY TO STARTING MOTOR, 355.6 MM (14") WITH 5/16" X NO. 10 EYELET
2	14H631	1	Nut	0.190"
3	19H1914	2	Cap Screw	1/4" X 1"
4	RE38391	1	Starter Relay	STARTING CIRCUIT, ( AT68973 NO LONGER AVAILABLE) (SUB FOR AM53945) (SUB RE38391)
5	R35668	2	Clamp	-
6	H77698	3	Tie Band	(SUB FOR AT30417 AND T44946)
7	AT38509	1	WIRING HARNESS	-
8	T81156	1	ANGLE	(SUB FOR T35423)
9	AT34324	1	SWITCH	FLOW DIVIDER
10	AU40647	1	WIRING LEAD	GROUND
11	21H1289	2	Screw	PAN HEAD, NO. 6 X 3/16"
12	AT34928	1	LENS	INDICATOR LAMP
13	R30378	1	Spring	-
14	AR50439	1	LAMP	NO. 257 OR NO. 431
15	R64700	1	High Note Horn	HIGH NOTE, (SUB FOR R11277)
16	AT39043	1	High Note Horn	LOW NOTE, (SUB FOR R11276)
17	AT37368	1	SENDER	OIL RESERVOIR TEMPERATURE
18	AU43217	1	SWITCH	OIL FILTER PRESSURE
19	AU43603	1	WIRING LEAD	STARTER RELAY TO STARTING MOTOR 355.6 MM (14") WITH 5/16" X NO. 10 EYELET
20	12H302	2	Lock Washer	1/4"
21	14H786	2	Nut	1/4"
22	14H785	2	Nut	5/16"
23	T26955	1	Clamp	ATTACHES TO CAB SUPPORT
