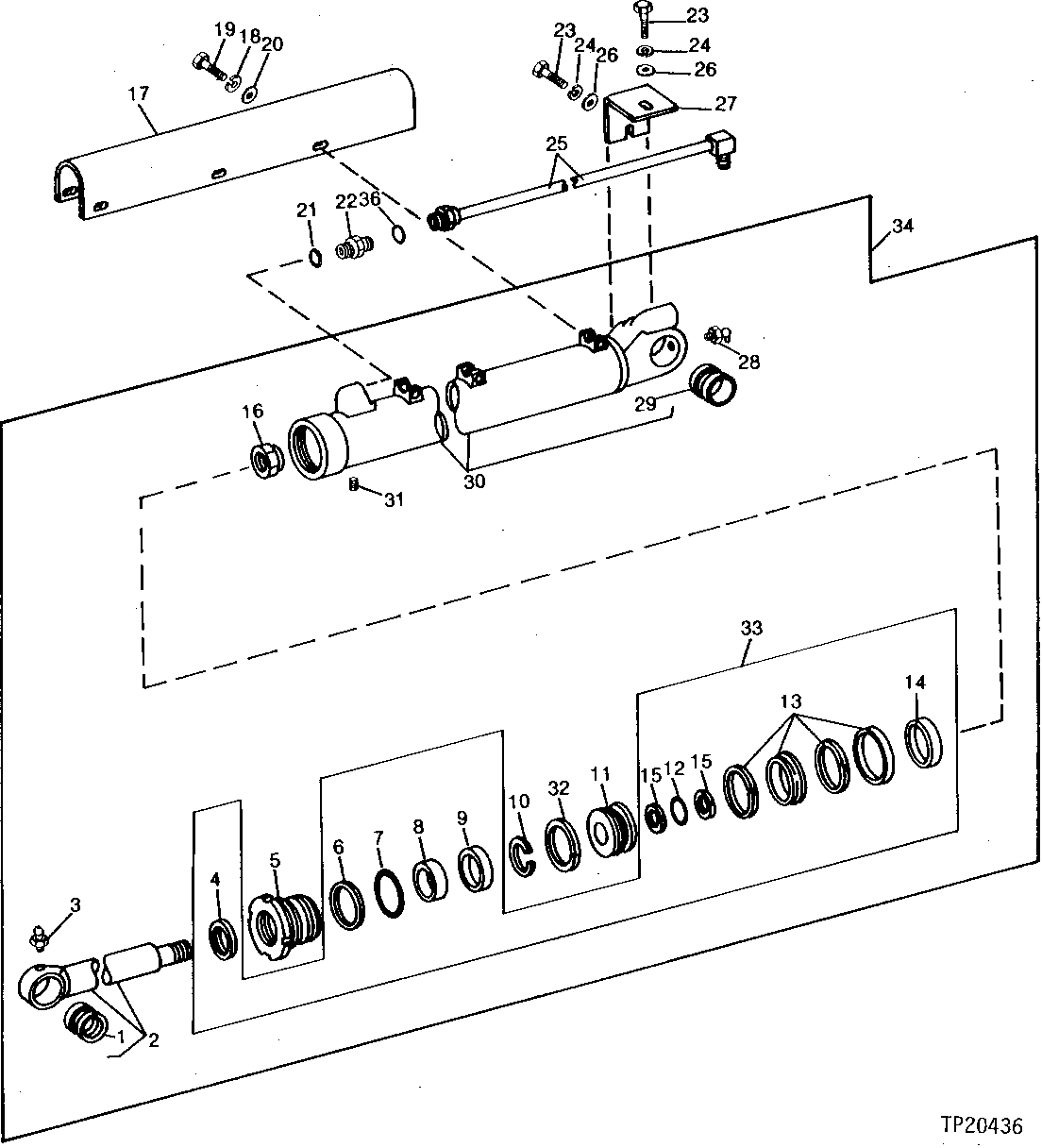

BUCKET CYLINDER (SERIAL NO. 501307- ) [02E21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U46436	1	BUSHING	-
2	RE21402	1	HYDRAULIC CYLINDER ROD	-
3	JD7759	1	Lubrication Fitting	1/8"
4	U45832	1	SEAL	(K3)
4	RE21404	1	SEAL	(K1) (USE WITH RE21400)
5	R77566	1	GUIDE	(SUB FOR R69276) (USE WITH RE12259)
5	R82413	1	GUIDE	-
6	R78818	1	Back-Up Ring	(K2)
7	T38485	1	O-Ring	(K2)
8	U45830	1	PISTON RING	(K3)
8	R82414	1	WEAR RING	(K1) (USE WITH RE21400)
9	RE21405	1	SEAL	(K1) (USE WITH RE21400)
9	R76781	1	SEAL	(K3)
10	-	1	Part 14	( U45829 NO LONGER AVAILABLE) (USE WITH R77566 IN RE12259 ASSEMBLY)
10	RE21403	1	SEAL	(K1) (USE WITH RE21400)
11	R81108	1	PISTON	(ALSO ORDER RE14102, U46616, P50631, (2) R78393 AND U43399)
12	P50631	1	O-Ring	(K1) (K3)
13	RE11920	1	SEAL	(K2)
14	U45180	1	WEAR RING	(K2)
15	R78393	2	Back-Up Ring	(K1) (K3)
16	U43399	1	Lock Nut	-
17	T38721	1	SHIELD	-
18	12H301	6	Lock Washer	1/2"
19	19H1741	6	CAP SCREW	1/2" X 1-1/8"
20	24H1111	6	Washer	17/32" X 1-1/16" X 0.090"
21	R29936	1	O-Ring	-
22	T26767	1	Fitting	(USE WITH RE12259)
22	38H1164	1	Adapter Fitting	(USE WITH RE12259)
23	19H3483	2	Cap Screw	3/8" X 1-1/8"
24	12H304	2	Lock Washer	3/8"
25	AT37540	1	TUBE	(USE WITH RE12259)
25	AT84149	1	OIL LINE	(USE WITH RE21400)
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	T38720	1	ANGLE	-
28	JD7781	1	Lubrication Fitting	90°, 1/8"
29	U45831	1	BUSHING	-
30	RE19065	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT37537)
31	22H1077	1	SET SCREW	1/4" X 5/16"
32	U46616	1	PISTON RING	-
33	RE15906	1	HYDRAULIC CYLINDER KIT	(ALSO ORDER RE14102)
34	RE21400	1	HYDRAULIC CYLINDER	(SUB FOR RE12259)
35	T76938	1	O-Ring	(USE WITH RE12259)

BUCKET CYLINDER (SERIAL NO. 501307- ) [02E21]
