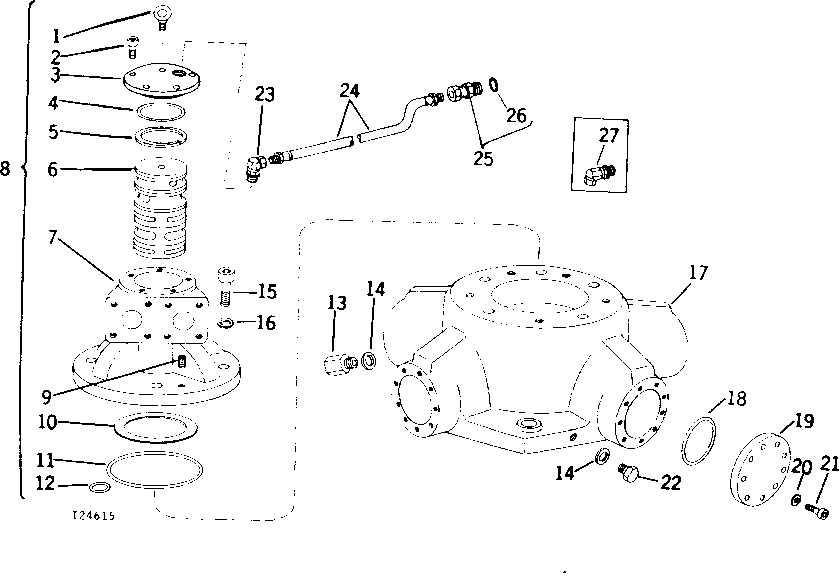

VALVE AND PISTON HOUSING FOR PROPELLING AND SWING MOTOR [01E18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	3/8" ( U46464 USE IF AVAILABLE)
2	19H2927	5	Screw	SOCKET-HEAD, 5/16" X 3/4"
3	-	1	Part 4	(SWING MOTOR) ( T33333 NO LONGER AVAILABLE)
3	U46442	1	COVER	(PROPELLING MOTOR)
4	-	1	Part 5	( U46456 NO LONGER AVAILABLE)
5	U46452	6	PISTON RING	-
6	U46449	1	CASE	(SUB AT32437 OR AT32503)
7	U46440	1	CASE	(SUB AT32437 OR AT32503)
8	AT32437	1	CASE	(SWING) (ALSO ORDER (8) T78421)
8	AT32503	1	CASE	(PROPELLING) (ALSO ORDER (8) T78421)
9	-	4	Part 11	( U46462 NO LONGER AVAILABLE)
10	AT35085	1	SHIM	(ONE SET)
11	A810140	1	O-Ring	(SUB FOR U46455)
12	U46166	5	O-Ring	-
13	-	1	Part 15	( U46460 NO LONGER AVAILABLE)
14	U46461	4	PACKING	-
15	19H3125	5	Screw	SOCKET-HEAD, 3/4" X 2"
16	24H1746	5	Washer	25/32" X 1-1/8" X 0.120"
17	-	1	Part 19	(SUB AT66688 IF AVAILABLE) (SUB FOR U46439)
18	F1870R	5	O-Ring	(SUB FOR U46457)
19	U46443	5	COVER	-
20	24H1301	50	Washer	13/32" X 9/16" X 0.065"
20	T72902	1	CAP SCREW	SOCKET-HEAD, M12 X 1.25 X 86
21	19H3213	50	SCREW	SOCKET-HEAD, 3/8" X 7/8"
22	-	3	Part 25	( U46463 NO LONGER AVAILABLE)
23	U11009	1	ADAPTER FITTING	45° (SWING MOTOR)
24	AR80532	1	Hydraulic Hose	(A) (MANIFOLD BLOCK TO SWING MOTOR) (ALSO ORDER 15H584)
24	-	1	Part 27	(SWING MOTOR) ( AU10345 NO LONGER AVAILABLE)
25	AT32534	1	ADAPTER FITTING	WITH O-RING (SWING MOTOR)
25	AH16917	1	ADAPTER FITTING	(A) (SWING MOTOR)
26	R29936	1	O-Ring	SWING MOTOR
26	R26375	1	O-Ring	(A) (SWING MOTOR)
27	U11009	1	ADAPTER FITTING	45° (SWING MOTOR)
..	-	1	Part 34	(PROPEL) (ALSO ORDER (8) T78421) ( AU43825 USE IF AVAILABLE)
..	AU43831	1	MOTOR	(SWING)) ( AU43831 NO LONGER AVAILABLE) (ALSO ORDER (8) T78421)
..	-	1	Part 36	(NO LONGER AVAILABLE)

VALVE AND PISTON HOUSING FOR PROPELLING AND SWING MOTOR [01E18]
