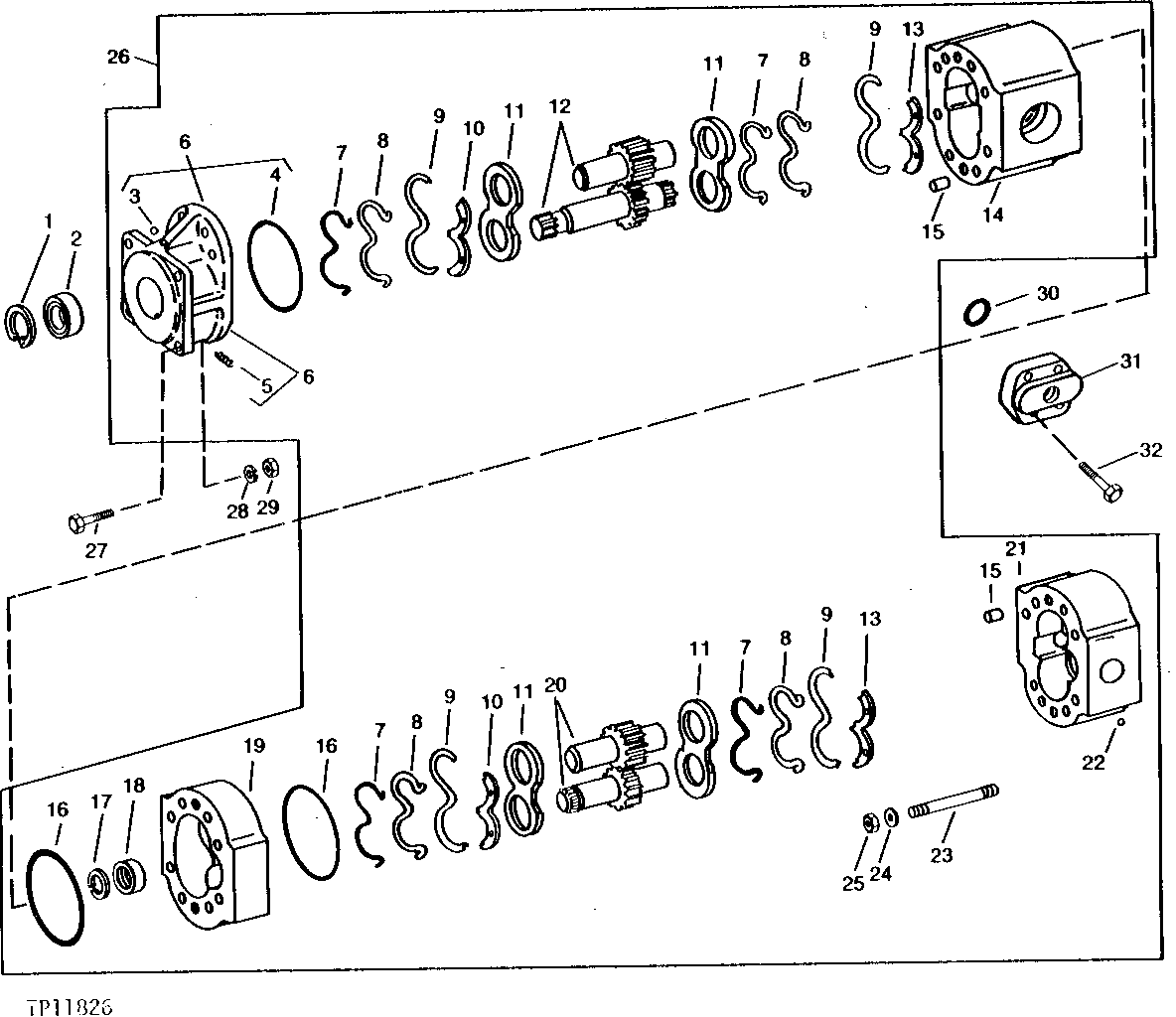

REPLACEMENT HYDRAULIC PUMP (TYRONE MODEL DKU) [01F13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	-
2	T74339	1	SEAL	(A) (B) (SUB FOR U44858)
3	U44850	2	BALL	-
4	T41418	1	RING	(A) (B)
5	15H558	1	Pipe Plug	HEX, CTSK, 1/8"
6	AT61565	1	FLANGE	FLANGE, (SUB AT68548, T60983, U12037 AND (4) 19H3093)
7	-	4	Part 7	(A) (B) ( U44856 USE IF AVAILABLE)
8	-	4	Part 8	(A) ( T61673 USE IF AVAILABLE)
9	-	4	Part 9	(A) ( U44851 USE IF AVAILABLE)
10	-	2	Part 10	(A) ( U44848 USE IF AVAILABLE)
11	U44846	4	PLATE	(A) PRESSURE
12	AT61566	1	KIT	(SUB AT68548, T60983, U12037 AND (4) 19H3093) GEAR
13	-	2	Part 13	(A) ( U44849 USE IF AVAILABLE)
14	AT61562	1	HOUSING	(SUB AT68548, T60983, U12037 AND (4) 19H3093)
15	T64787	6	DOWEL PIN	-
16	T41419	2	RING	(A) (B)
17	T23694	1	Snap Ring	(SUB FOR U46421)
18	T35445	1	COUPLING	SPLINE
19	AT61564	1	BEARING	(SUB AT68547, T60983, U12037 AND (4) 19H3093)
20	AT61567	1	KIT	(SUB AT68547, T60983, U12037 AND (4) 19H3093)
21	AT61563	1	HOUSING	(SUB AT68547, T60983, U12037 AND (4) 19H3093)
22	H871R	1	Ball	(SUB FOR U44847 AND T33997)
23	T64788	8	STUD	-
24	U44865	8	WASHER	-
25	U44860	8	NUT	-
26	AT60395	1	PUMP	(SUB AT63058 OR AT63054, (2) T60983, (2) U12037 AND (8) 19H3093)
27	19H2880	4	CAP SCREW	1/2" X 1-3/4"
28	12H301	4	Lock Washer	1/2"
29	14H1040	4	Nut	1/2", (SUB FOR 14H809)
30	U12037	4	O-Ring	-
31	T60983	4	Flange Fitting	-
32	19H3093	16	Screw	3/8" X 1-3/4"
..	AT72247	1	KIT	MAJOR REPAIR (SUB FOR AT61568)
..	AT40398	1	KIT	MINOR REPAIR

REPLACEMENT HYDRAULIC PUMP (TYRONE MODEL DKU) [01F13]
