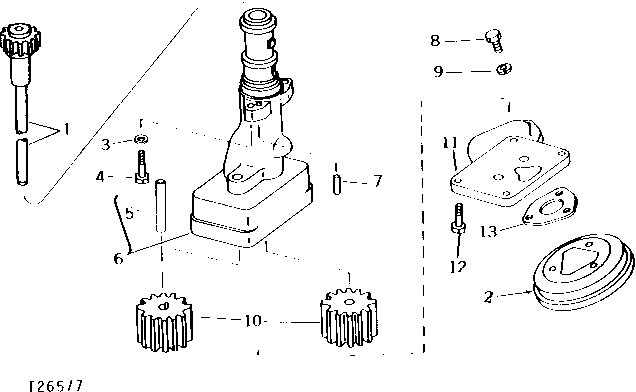

REPLACEMENT ENGINE OIL PUMP (ENGINE SERIAL NO. -280000) [01B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64568	1	GEAR	(SUB FOR R45133)
2	AR56639	1	OIL PUMP INTAKE	-
3	M72490	2	Washer	(A) (SUB FOR R42729)
4	AR63865	2	Cylinder	(SUB FOR R40808, THIS APPLICATION) (CONTAINS (2) R41920 AND (2) M72490)
4	R41920	2	Cap Screw	(A) (USE WHEN AR63865 HAS BEEN INSTALLED)
4	R38614	2	CAP SCREW	-
5	R42390	1	SHAFT	-
6	AR71124	1	KIT	(NLA) (MARKED R49015, R56608 OR R59034) (SUB AR71126, (2) R41920 AND (2) R42729) (SUB FOR AR52440 OR AR68314)
6	AR71126	1	HOUSING	(NLA) (MARKED R59034) (CONTAINS R42390)
7	-	1	Part 10	( H826R NO LONGER REQUIRED)
8	19H1900	3	Cap Screw	5/16" X 3/4", (USE WITH AR52571)
8	19H2127	3	Cap Screw	5/16" X 7/8"
8	19H1905	3	Cap Screw	5/16" X 1", (USE WITH SE500887)
9	12H303	3	Lock Washer	5/16"
10	AR71123	1	GEAR	(SUB FOR AR52570)
11	SE500884	1	OIL PUMP REMAN	(SUB FOR R52048 OR R60754)
12	R46567	4	Screw	-
13	R52049	1	GASKET	-
..	AR75896	1	OIL PUMP	(SUB FOR AR52571) (SUB SE500887, (2) R41920 AND (2) R42729)
..	AR71118	1	OIL PUMP	(MARKED R59034) (SUB SE500887)
..	SE500887	1	OIL PUMP	REMANUFACTURED

REPLACEMENT ENGINE OIL PUMP (ENGINE SERIAL NO. -280000) [01B21]
