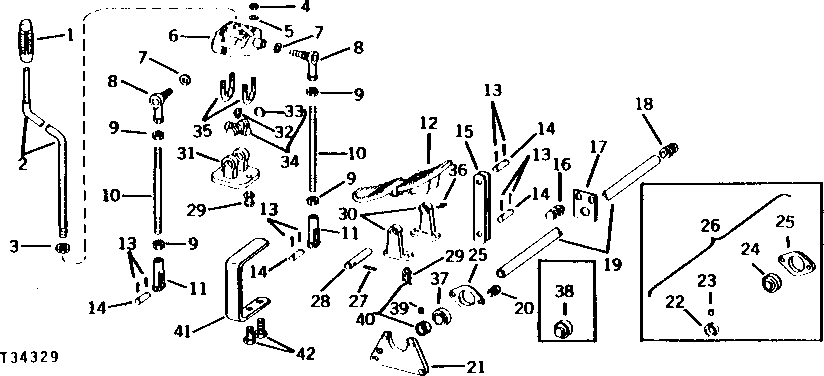

OPERATING CONTROL LEVERS AND PEDALS [01G02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U43703	2	GRIP	-
2	U45618	2	LEVER	-
3	14H794	2	Nut	3/4"
4	14H860	8	Nut	1/4"
5	12H302	8	Lock Washer	1/4"
6	U46256	2	PIVOT	-
7	12H301	4	Lock Washer	1/2"
8	AU43742	4	BALL JOINT	ROD AND SPHERICAL BEARING
9	14H856	8	Nut	1/2"
10	U46251	4	STUD	-
11	U16202	4	YOKE	-
12	U45632	1	PEDAL	(SUB T35284 AND JD7806)
12	T35284	2	PEDAL	-
13	11M7082	16	Cotter Pin	2.500 X 25 MM, (SUB FOR 11M7081)
14	U46245	8	PIN FASTENER	-
15	AU43739	2	LINK	(SUB (2) T61265)
15	T61265	4	LINK	-
16	19H2898	2	Cap Screw	1/2" X 1-1/4"
16	12H301	2	Lock Washer	1/2"
16	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
17	U46379	1	SUPPORT	-
18	19H2880	2	CAP SCREW	1/2" X 1-3/4"
18	12H301	2	Lock Washer	1/2"
18	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
19	U45628	1	PIN	-
20	03H1709	12	Bolt	5/16" X 1"
20	14H785	12	Nut	5/16"
20	12H303	12	Lock Washer	5/16"
21	U46252	6	LINK	-
22	JD8554	6	Eccentric Locking Collar	-
23	E18630	6	SET SCREW	-
24	JD8555	6	BALL BEARING	-
25	L2287C	12	Pressed Flanged Housing	-
26	AB15195	6	BEARING	(SUB JD8554, JD8555 AND (2) L2287C)
27	34H284	2	Spring Pin	3/16" X 1-1/4"
28	U45633	2	PIN FASTENER	-
29	19H1648	12	Cap Screw	3/8" X 3/4"
29	12H304	12	Lock Washer	3/8"
30	U45634	4	SUPPORT	-
31	U46255	2	BASE	-
32	JD7763	2	Lubrication Fitting	45°, 1/8"
33	BP13669	8	Snap Ring	(SUB FOR U46279)
34	AE23716	2	Cross And Bearing Assembly	(SUB FOR AU43743)
35	T66665	4	U-BOLT	(SUB FOR AU43783)
36	JD7806	2	Lubrication Fitting	-
37	JD8555	1	BALL BEARING	-
38	JD9453	6	BEARING	(SUB JD8554 AND JD8555, THIS APPLICATION)
39	E18630	1	SET SCREW	-
40	JD8554	1	Eccentric Locking Collar	-
41	T45159	2	BRACKET	-
42	19H1815	4	Cap Screw	1/2" X 1-1/4"

OPERATING CONTROL LEVERS AND PEDALS [01G02]
