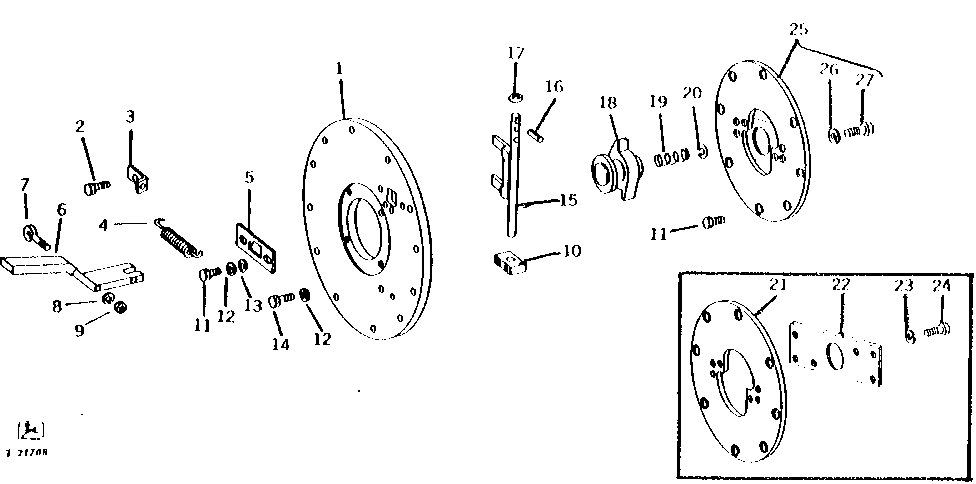

HYDRAULIC PUMP DISCONNECT (SERIAL NO. -001670) [01F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U45904	1	SUPPORT	-
2	19H3239	11	Cap Screw	3/8" X 1-1/4"
2	19H1765	11	Cap Screw	3/8" X 1-3/4"
3	U45912	1	ANGLE	-
4	E10073	1	SPRING	-
5	-	1	Part 6	(NO LONGER AVAILABLE)
6	-	1	Part 7	(NO LONGER AVAILABLE)
7	-	1	Part 8	( U11216 NO LONGER AVAILABLE)
8	24H1284	1	Washer	7/32" X 7/8" X 0.065"
9	U45916	1	Lock Nut	-
10	U45911	2	GUIDE	-
11	19H1648	10	Cap Screw	3/8" X 3/4"
12	12H304	6	Lock Washer	3/8"
13	24H1307	1	Washer	13/32" X 1" X 1/16"
14	19H1732	4	Cap Screw	3/8" X 1-1/4"
15	AU43601	1	SUPPORT	-
16	25H72	3	GROOVE PIN	3/16" X 1"
17	24H1341	2	Washer	17/32" X 15/16" X 0.060"
18	AT50733	1	COUPLING	(SUB FOR U45908, THIS APPLICATION) (ALSO ORDER (4) 19H3033, (8) T23891, (4) R44888, (8) U41514, AT50733 AND T52434)
19	R1614R	1	SPRING	-
20	T23694	1	Snap Ring	(SUB FOR U45915)
21	U45907	1	PLATE	(SUB AT33384)
22	U46498	1	PLATE	(SUB AT33384)
23	12H304	6	Lock Washer	3/8"
24	19H2021	6	Cap Screw	3/8" X 5/8"
25	T52434	1	HUB	(SUB FOR AT33384, THIS APPLICATION) (ALSO ORDER AT50733, (4) 19H3033, (8) T23891, (4) R44888, (8) U41514 AND T52434)
26	12H304	6	Lock Washer	3/8"
27	19H2021	6	Cap Screw	3/8" X 5/8"

HYDRAULIC PUMP DISCONNECT (SERIAL NO. -001670) [01F11]
