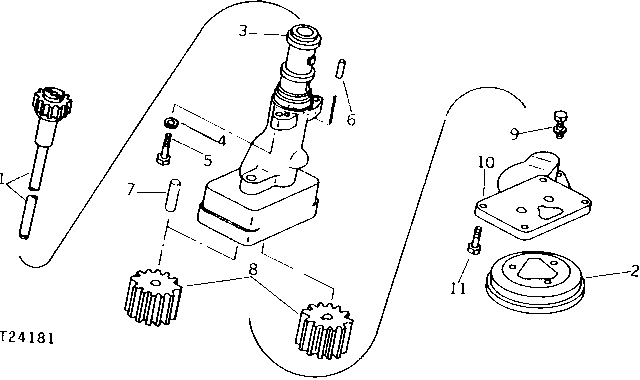

ENGINE OIL PUMP (ENGINE SERIAL NO. -280000) [01B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45133	1	GEAR	-
2	AR56639	1	OIL PUMP INTAKE	(SUB FOR AR47524)
2	R52049	1	GASKET	-
3	AR44442	1	HOUSING	(MARKED R42391) (SUB AR68180, (2) R38614 AND SE500884, THIS APPLICATION)
3	AR68180	1	HOUSING	(MARKED R56972) (CONTAINS R42390) (SUB SE500895)
3	SE500895	1	HOUSING REMAN	REMANUFACTURED
4	R42729	2	Washer	(A)
5	R40808	2	CAP SCREW	(SUB AR63865)
5	R41920	2	Cap Screw	(A) (USE WHEN AR63865 HAS BEEN INSTALLED)
5	R38614	2	CAP SCREW	-
6	-	1	Part 11	(H826R NO LONGER REQUIRED)
7	R42390	1	SHAFT	-
8	AR44444	1	GEAR	(SUB AR73714 AND R42392)
8	AR73714	1	GEAR	(USE WITH R42392)
8	R42392	1	GEAR	(USE WITH AR73714)
9	19H2664	3	Cap Screw	5/16" X 3/4"
9	12H303	3	Lock Washer	5/16"
10	R43436	1	COVER	(SUB AR68180, R38614 AND SE500884)
11	R46567	4	Screw	-
..	AR49044	1	OIL PUMP	(SUB SE500887, (2) R41920 AND (2) R42729) (SUB FOR AR43510)
..	AR71118	1	OIL PUMP	(MARKED R59034) (SUB SE500887)
..	SE500887	1	OIL PUMP	REMANUFACTURED

ENGINE OIL PUMP (ENGINE SERIAL NO. -280000) [01B19]
