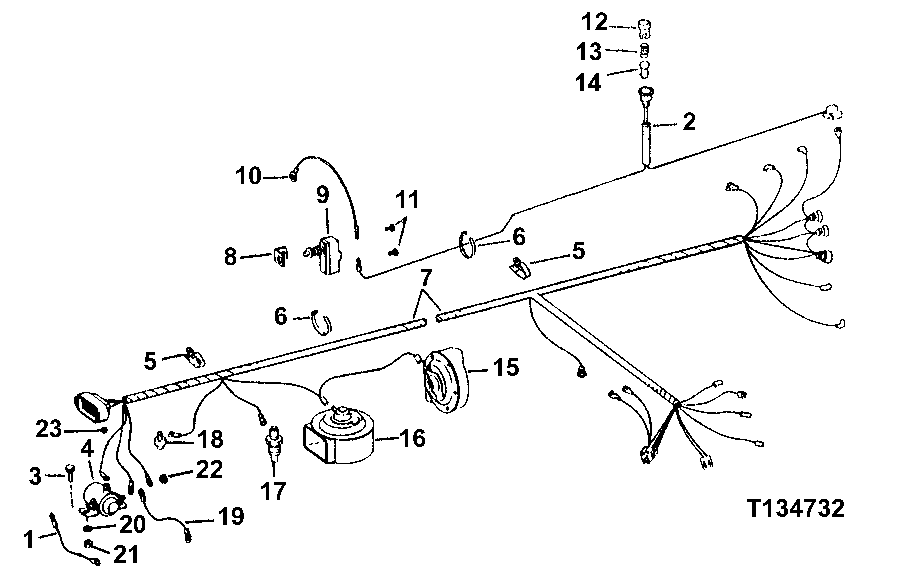

CAB WIRING SYSTEM (SERIAL NO. -000749) [01J12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT107406	1	WIRING LEAD	(SUB FOR AU43605) STARTER RELAY TO STARTING MOTOR, 356 MM (14") WITH 5/16" AND NO. 10 EYELET
2	-	1	Part 2	(NO LONGER AVAILABLE) INDICATOR LIGHT (USE ONLY WHEN AT34516 FLOW DIVIDER KIT HAS (BEEN INSTALLED)
3	19H1914	2	Cap Screw	1/4" X 1"
4	AT68973	1	Relay	(SUB FOR AR44999, AM52191 AND AM53945)
5	R35668	3	Clamp	-
6	H77698	2	Tie Band	(SUB FOR AT30417 AND T44946)
7	AT31892	1	WIRING HARNESS	(SUB FOR AU43604)
8	T35423	1	ANGLE	(USE WITH FLOW DIVIDER KIT)
9	AT34324	1	SWITCH	(USE WITH FLOW DIVIDER KIT)
10	AU40647	1	WIRING LEAD	(USE WITH FLOW DIVIDER)
11	21H1289	2	Screw	PAN. HD., NO. 6 X 3/16" (USE WITH FLOW DIVIDER KIT)
12	AT34928	1	LENS	(USE WITH FLOW DIVIDER KIT)
13	R30378	1	Spring	(USE WITH FLOW DIVIDER KIT)
14	AR50439	1	LAMP	NO. 257 OR NO. 431, (SUB FOR AT34323) (USE WITH FLOW DIVIDER KIT)
15	R64700	1	High Note Horn	HIGH NOTE, (SUB FOR R11277)
16	AT39043	1	High Note Horn	LOW NOTE, (SUB FOR R11276)
17	AT28163	1	SENDER	OIL RESERVOIR TEMPERATURE
18	AU43217	1	SWITCH	OIL FILTER PRESSURE
19	AU43603	1	WIRING LEAD	STARTER RELAY TO STARTING MOTOR, 356 MM (14") WITH ONE 5/16" AND ONE 3/8" EYELET
20	12H302	2	Lock Washer	1/4"
21	14H786	2	Nut	1/4"
22	14H785	2	Nut	5/16"
23	14H631	1	Nut	0.190"

CAB WIRING SYSTEM (SERIAL NO. -000749) [01J12]
