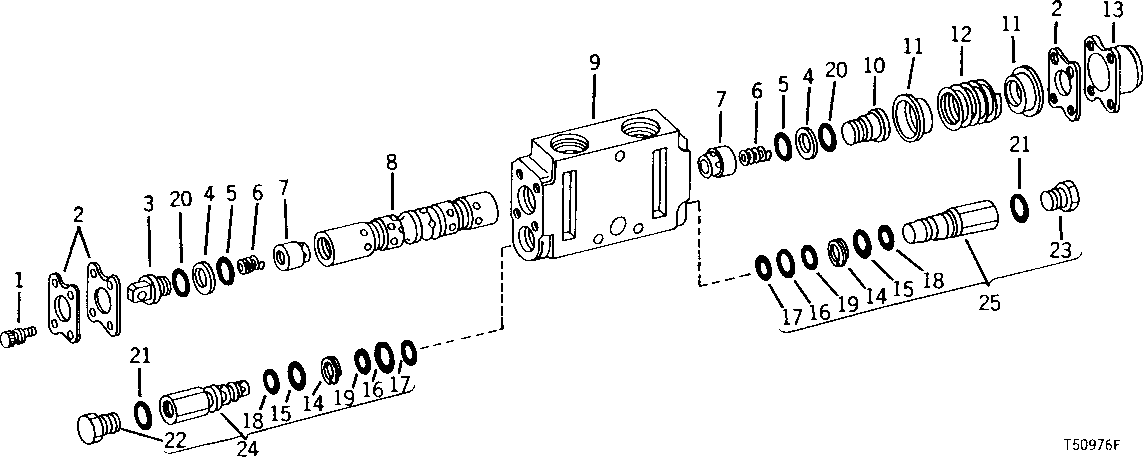

BOOM, CROWD AND BUCKET CONTROL VALVE [01F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H302	8	Lock Washer	1/4"
1	19H2931	8	Screw	1/4" X 0.620"
2	U45852	3	PLATE	-
3	U45848	1	LUG	-
4	U45855	2	Washer	(A)
5	R29463	2	O-Ring	(A)
6	U45851	2	SPRING	-
7	U45850	2	POPPET	-
8	-	1	Part 9	(CROWD AND BUCKET) (SUB AU43595)
8	-	1	Part 10	(BOOM) (SUB AU43896)
9	-	1	Part 11	(CROWD AND BUCKET) (SUB AU43595)
9	-	1	Part 12	(BOOM) (SUB AU43896)
10	U45849	1	BOLT	-
11	U45853	2	ROUND RETAINER	-
12	U45856	1	SPRING	-
13	U45854	1	CAP	-
14	R32588	2	Back-Up Ring	-
15	P47908	2	O-Ring	-
16	U45858	2	Back-Up Ring	(A)
17	U45857	2	O-Ring	(A)
18	P48347	2	O-Ring	-
19	32246	2	O-Ring	-
20	U45857	2	O-Ring	-
21	T31128	1	SHIM	.23 MM (.009")
21	T31127	1	SHIM	(AS REQUIRED) .20 MM (.008")
21	T31126	1	SHIM	.18 MM (.007")
21	T31125	1	SHIM	.15 MM (.006")
21	T31124	1	SHIM	(AS REQUIRED)
22	-	1	Part 29	(SUB AU43596)
23	-	1	Part 30	(SUB AU43596 OR AT33484)
24	AU43596	1	PRESSURE RELIEF VALVE	20 685 KPA (207 BAR)(3000 PSI)
25	AU43596	1	PRESSURE RELIEF VALVE	RELIEF 20 685 KPA (207 BAR) (3000 PSI) (CROWD AND BUCKET)
25	AT33484	1	PRESSURE RELIEF VALVE	RELIEF 25 855 KPA (259 BAR) (3750 PSI) BOOM
..	AU43595	1	SPOOL VALVE	CONTROL (CROWD AND BUCKET)
..	AU43896	1	VALVE	CONTROL (BOOM)
..	AU44009	1	KIT	SPOOL REPAIR

BOOM, CROWD AND BUCKET CONTROL VALVE [01F24]
