Открытый узел

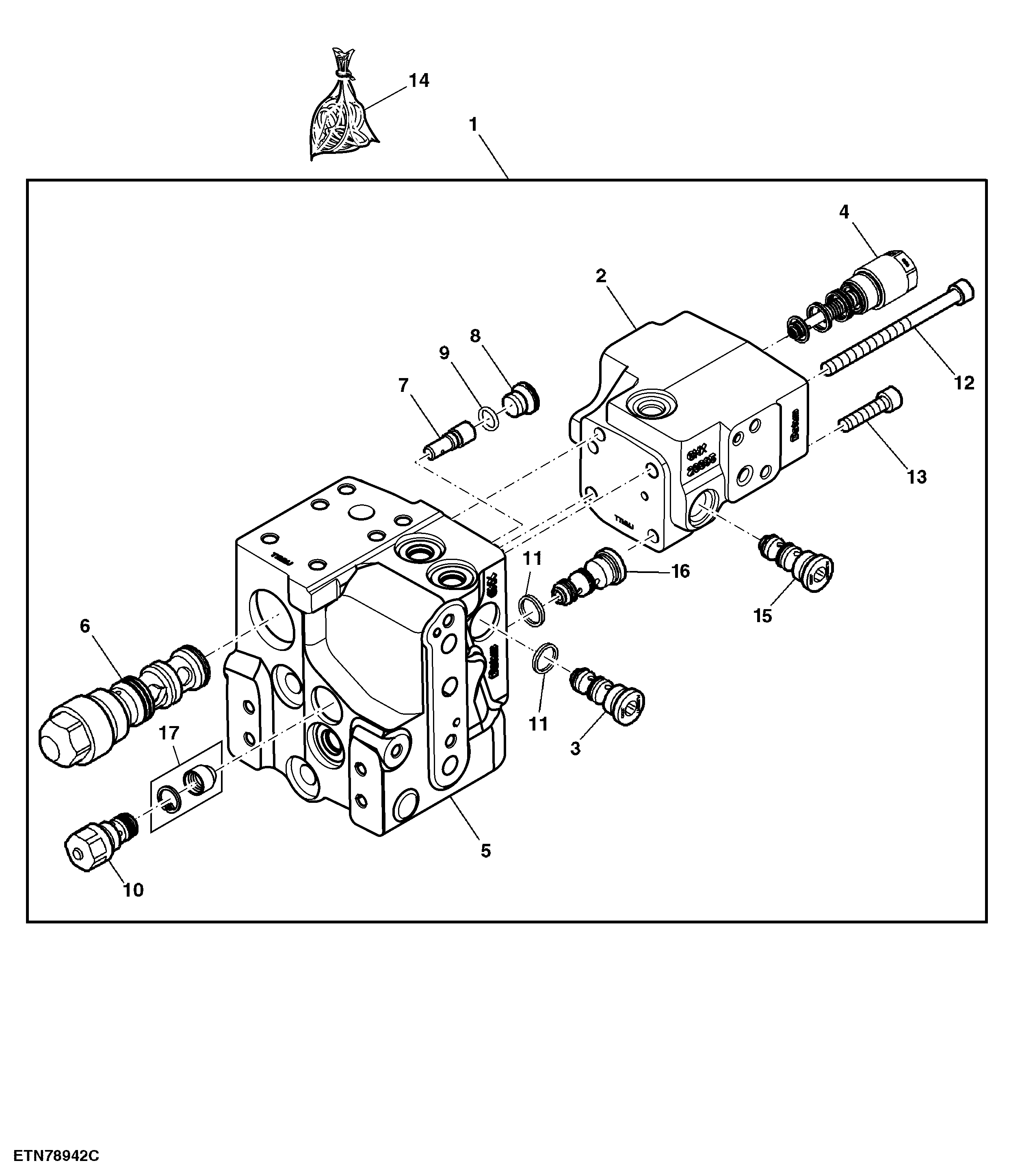

Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ Power Fill Brake, W/ TLS™ or E-PUH

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL227264	1	Valve	ORDER AL231587
1	AL231263	1	Valve	ORDER AL231587
1	AL233956	1	Valve	SUB FOR AL231587
1	AL207592	1	Valve	ORDER AL231587
2	AL207640	1	Valve	ORDER AL232767 ; INCLUDES AL178658 AND AL165597; USE WITH AL178658
2	AL229370	1	Valve	ORDER AL232767, INCLUDES AL165597 AND AL178658
2	AL232767	1	Valve	-
3	AL165597	1	Valve	Shuttle Valve, Priority Circuit 1 - 2 V6
4	AL178658	1	Control Valve	MARKED AL178658; USE WITH AL207592
4	AL222495	1	Control Valve	Priority 2 Valve MARKED AL222495; USE WITH AL227264; V3
5	AL207641	1	Valve	ORDER AL231588; INCLUDES AL207754, AL207788, 15M7076, 51M7041, AL177096, (2) 51M7040, (2) AL165597 AND AL207509
5	AL227266	1	Valve	ORDER AL231588; INCLUDES AL227581, AL226351, 15M7076, 51M7041, AL222498, (2) 51M7040, (2) AL165597 AND AL207509
5	AL231264	1	Valve	ORDER AL231588
5	AL233957	1	Valve	SUB FOR AL231588
6	AL227581	1	Control Valve	Priority 3 Valve MARKED AL227581; USE WITH AL227264; V5
6	AL207754	1	Control Valve	MARKED AL207754; USE WITH AL207592; SUB FOR AL180293 APPL; ORDER AL227581
7	AL207788	1	Flow Control Hyd. Valve	ORDER AL226351
7	AL226351	1	Flow Control Hyd. Valve	-
8	15M7076	1	Drain Plug	-
9	51M7041	1	O-Ring	11.300 X 2.200 mm
10	AL177096	1	Pressure Relief Valve	LS Pressure Limiting Valve For PC-Hydraulics ORDER AL222498; V9
10	AL222498	1	Pressure Relief Valve	For PC-Hydraulics
10	AL209234	1	Pressure Relief Valve	For PFC-Hydraulics
11	51M7040	2	O-Ring	9.300 X 2.200 mm
12	L170303	2	Screw	-
13	19M8819	2	Screw	M8 X 35
14	AL207509	1	Seal Kit	-
15	AL165597	1	Valve	Shuttle Valve, Steering Valve - Foot Brake Valve V4
16	AL165597	1	Valve	Shuttle Valve, Priority Circuit 1/2 - 3 V7
17	AL231703	1	Screen Kit	-

Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ Power Fill Brake, W/ TLS™ or E-PUH
