Тип техники

Бренд

Машина

Открытый узел

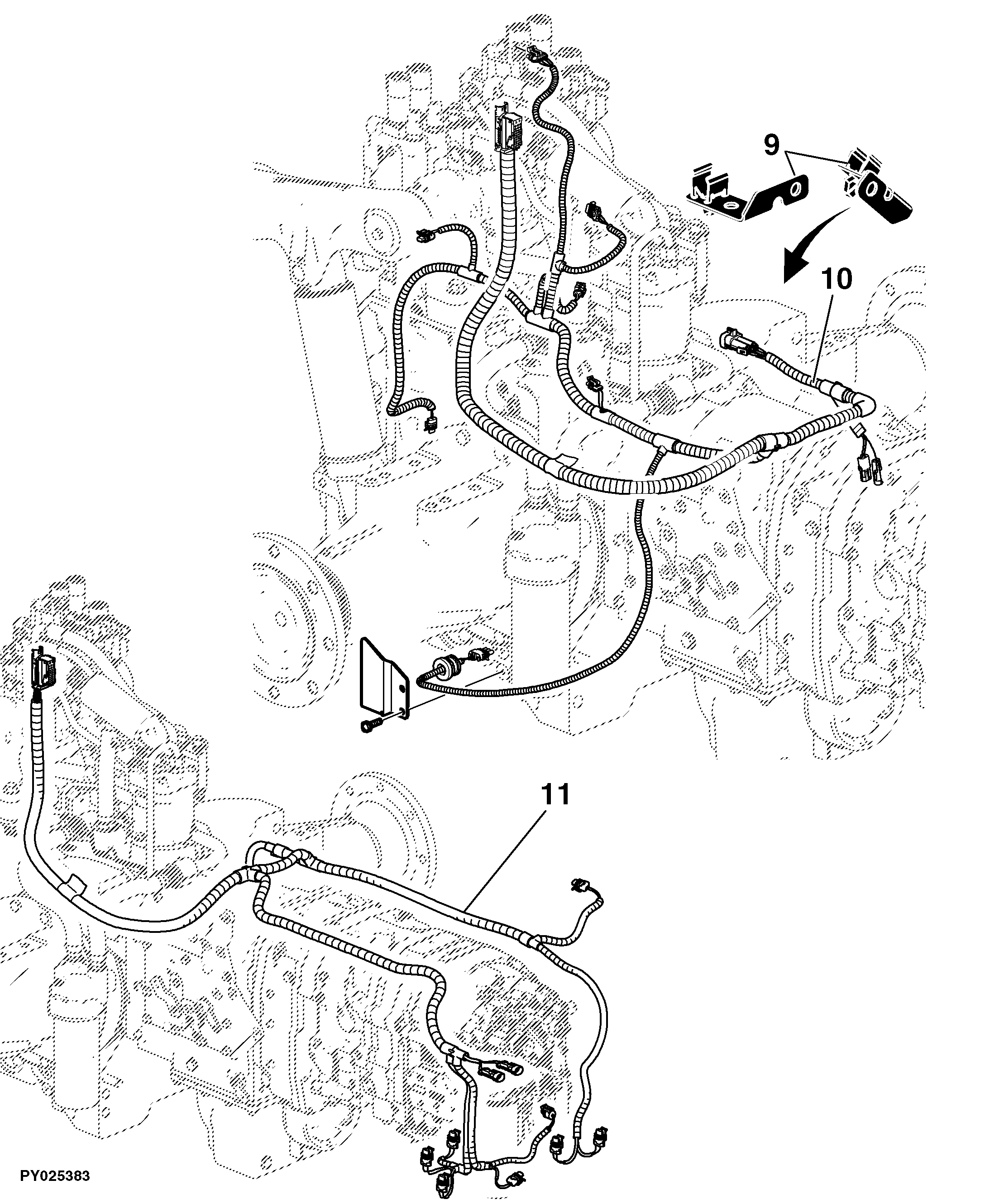

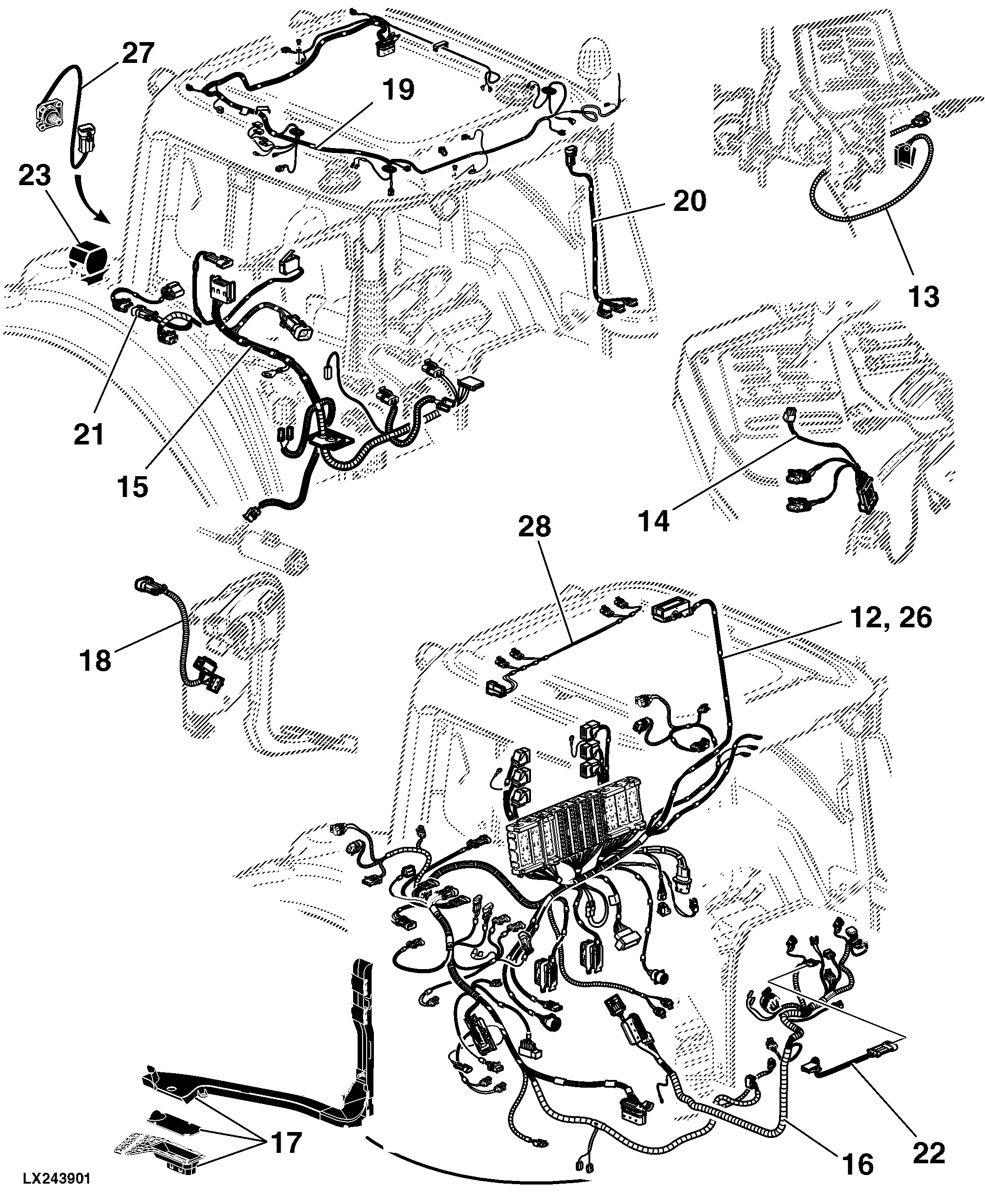

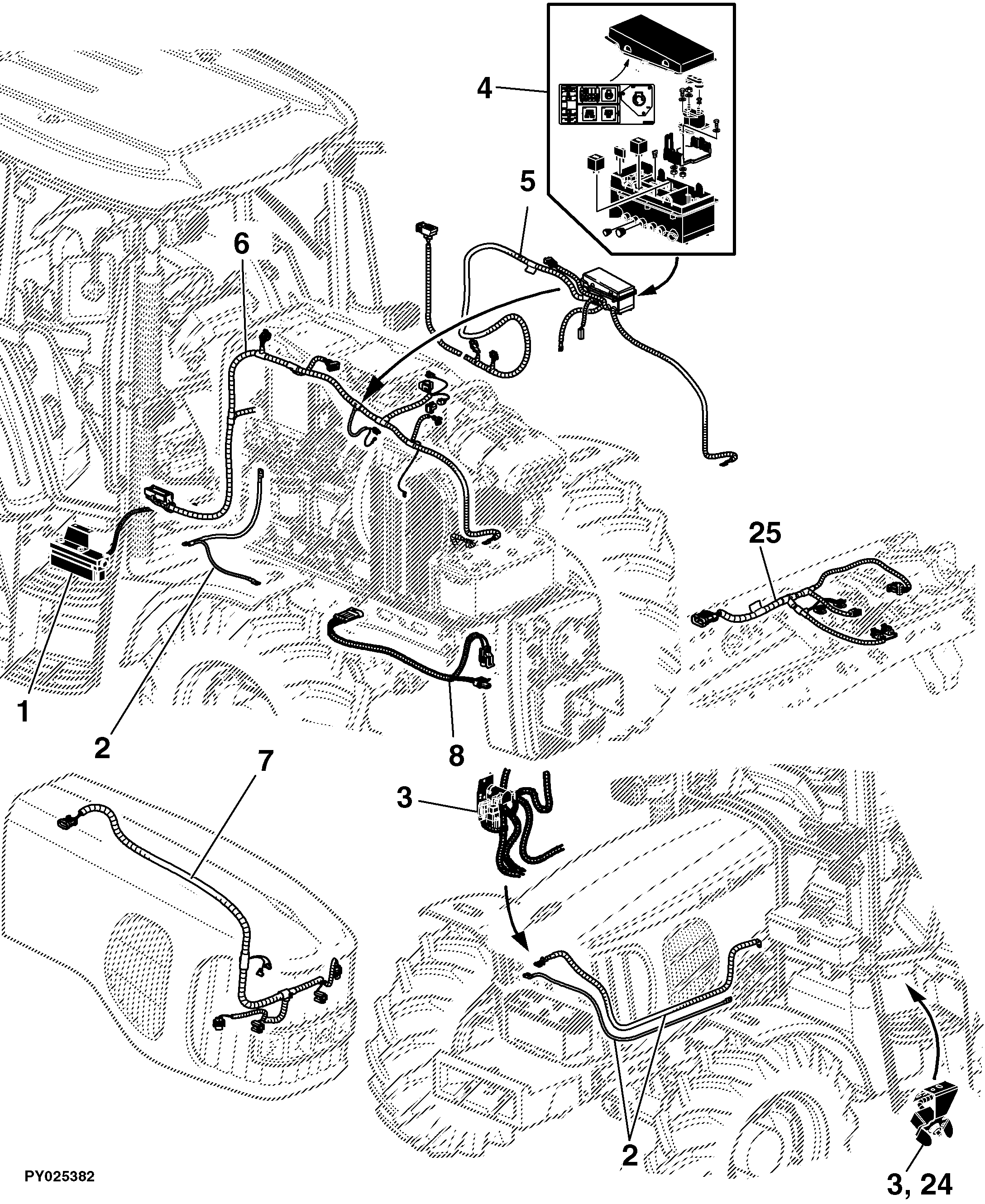

42 Electrical Components / Wiring Harnesses and Precision Farming Equipment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	POWER SUPPLY WIRING HARNESS	-
-	-	1	Wiring Harness, Worklight, H3, Cab Rear	-
-	-	1	WIRING HARNESS, SWITCH FOR WINDSHIELD	-
-	-	1	Wiring Harness, Signal Interface Socket	-
-	-	1	WIRING HARNESS, MFWD WITH TLS	-
-	-	1	WIRING HARNESS, HEATING AND AIRCONDITIONING	-
-	-	1	WIRING HARNESS, HEADLIGHTS AND WORKLIGHTS (FRONT GRILLE)	-
-	-	1	WIRING HARNESS, FRONT PTO	-
-	-	1	WIRING HARNESS, CAB ROOF	-
-	-	1	WIRING HARNESS REAR WINDOW WIPER	-
-	-	1	WIRING HARNESS INSTRUMENTS (CAB)	-
-	-	1	WIRING HARNESS FIXTURE	-
-	-	1	TRANSMISSION HARNESS (REAR)	-
-	-	1	TRANSMISSION HARNESS (FRONT)	-
-	-	1	BACKUP ALARM	-
-	-	1	JUMP-START CONNECTION	-
-	-	1	HARNESS, TURN SIGNAL AND CLEARANCE LIGHTS, HEADLIGHTS OR WORKLIGHTS	-
-	-	1	HARNESS, PARKING LOCK ON/OFF (CAB)	-
-	-	1	HARNESS, CLUTCH ACTUATION	-
-	-	1	GEAR INDICATOR HARNESS, POWRQUAD PLUS	-
-	-	1	FUSES, RELAYS, LABEL FOR POWER SUPPLY HARNESS	-
-	-	1	ENGINE WIRING HARNESS	-
-	-	1	CHANNEL, WIRING HARNESS	-
-	-	1	CAB WIRING HARNESS	-
-	-	1	CAB WIRING HARNESS	-
-	-	1	BATTERY CUT-OFF SWITCH, INSIDE CAB (FOR SWEDEN)	-
-	-	1	BATTERY CUT-OFF SWITCH	-
-	-	1	BATTERY CABLE	-

42 Electrical Components / Wiring Harnesses and Precision Farming Equipment

Нет текстового описания
