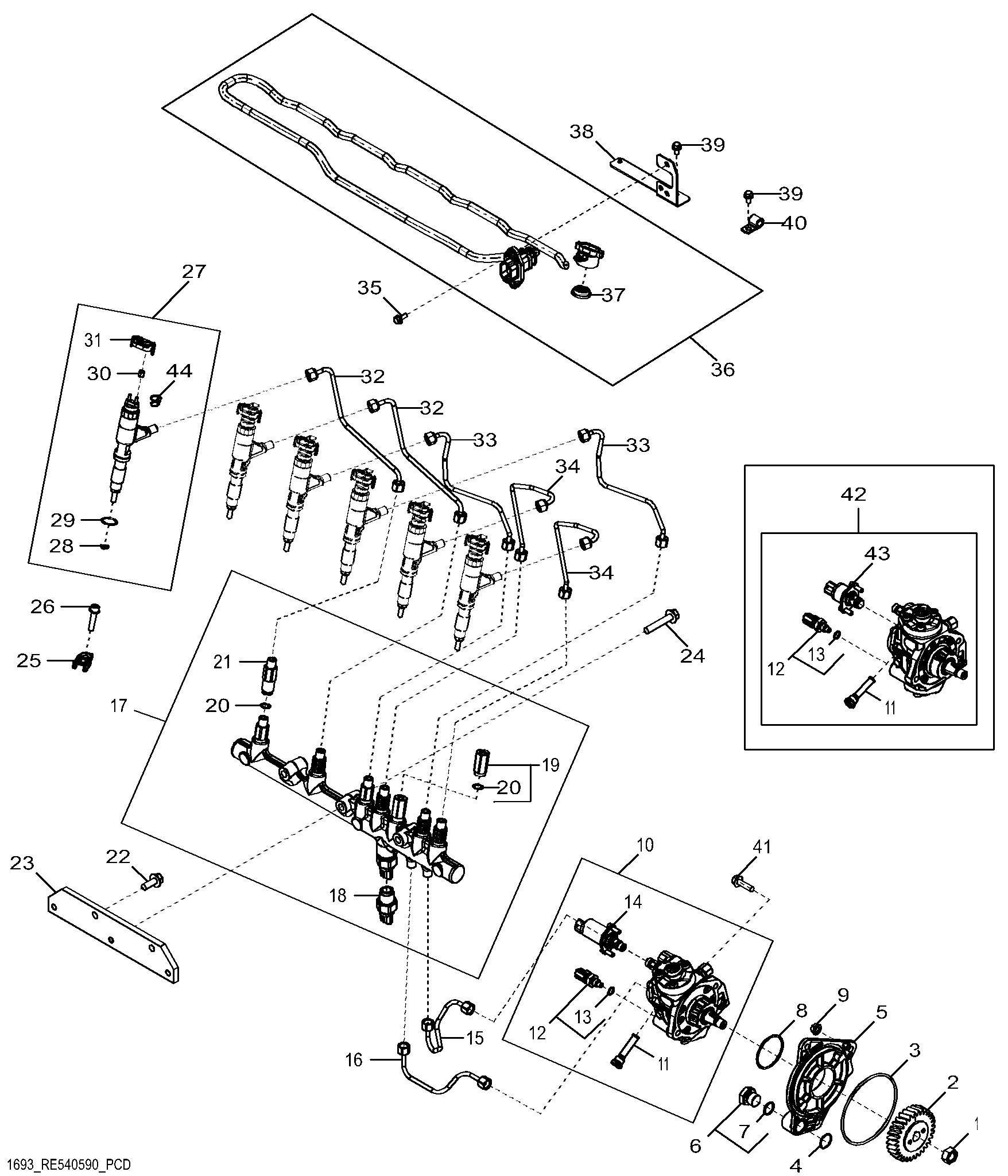

1693 Fuel Injection System (105266 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R91360	1	Nut	-
2	R502541	1	Gear	Z = 30
3	R55453	1	O-Ring	-
4	R116031	1	O-Ring	-
5	R504577	1	Adapter	-
6	RE517370	1	Fitting	-
7	51M7044	1	O-Ring	17.300 X 2.200 mm
8	R516125	1	O-Ring	-
9	14M7298	3	Flange Nut	M8
10	RE507959	1	Fuel Injection Pump	-
10	SE501915	1	Fuel Injection Pump Reman	REMAN FOR RE507959
11	RE516999	1	Screen	-
12	RE516336	1	Fuel Temperature Sensor	-
13	R524234	1	O-Ring	-
14	DZ111135	1	Control Valve	Suction USE WITH RE507959; SUB FOR RE530337
15	DZ104988	1	Fuel Line	SUB FOR RE544262
16	DZ104989	1	Fuel Line	SUB FOR RE544263
17	RE522596	1	Rail	SUB FOR RE520928
18	RE520930	1	Sensor	Common Rail Pressure Sensor
19	RE516335	1	Pressure Relief Valve	-
20	R515454	7	Shim	-
21	RE515636	6	Restrictor	-
22	19M7785	2	Screw	M10 X 25
23	R504239	1	Bracket	-
24	19M8528	3	Screw	M10 X 55
25	R520813	6	Clamp	-
26	RE528096	6	Screw With Washer	-
27	DZ100212	6	Nozzle Kit	SUB FOR RE546784 OR RE531209
27	SE501925	1	Injection Nozzle Reman	REMAN FOR RE546784 AND RE531209
28	R523499	6	Washer	-
29	R516647	6	O-Ring	-
30	R134920	12	Nut	-
31	RE528588	6	Electrical Connector Cap	-
32	RE526694	2	Fuel Line	Cylinder 5 and 6
33	RE526693	2	Fuel Line	Cylinder 3 and 4
34	RE526692	2	Fuel Line	Cylinder 1 and 2
35	19M7775	2	Screw	M6 X 16
36	RE530106	1	Wiring Harness	-
37	R522630	1	Seal	-
38	RE531219	1	Bracket	-
39	RE527858	7	Screw	-
40	AH80916	6	Clip	-
41	19M7868	2	Screw	M8 X 30
42	RE527528	1	Fuel Injection Pump	ORDER RE507959
42	SE501916	1	Fuel Injection Pump Reman	REMAN FOR RE527528; ORDER SE501915
43	DZ111137	1	Control Valve	Suction USE WITH RE527528; SUB FOR RE534109 OR RE560091
44	R522899	1	Sealing Washer	-

1693 Fuel Injection System (105266 - )

Нет текстового описания
