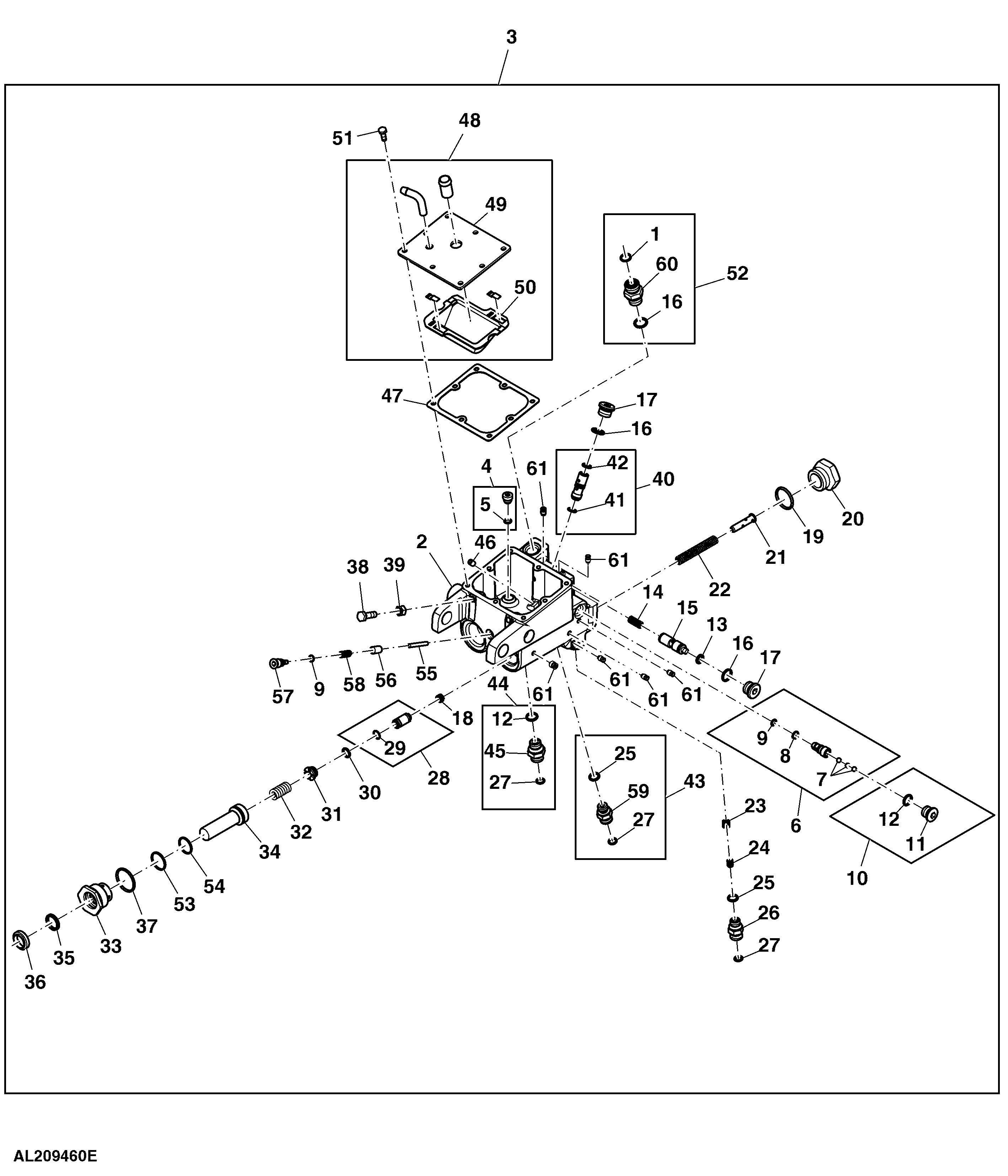

Mounting Parts, Attachment, Brake Valve, Heavy-Duty Version

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	1	O-Ring	-
2	-	1	Part 2	ORDER AL209460
3	AL209460	1	Valve	-
4	AL150109	3	Check Valve	-
5	L11698	3	O-Ring	-
6	AL119746	1	Spool Valve	-
7	400R	3	Ball	-
8	51M7079	1	O-Ring	10 X 1.200 mm
9	51M7078	2	O-Ring	8 X 1.200 mm
10	AL163081	1	Plug	-
11	L158473	1	Plug	-
12	51M7042	2	O-Ring	13.300 X 2.200 mm
13	AL150022	1	Packing	-
14	L155987	1	Compression Spring	-
15	L153463	1	Valve Spool	-
16	51M7043	3	O-Ring	15.300 X 2.200 mm
17	L41384	2	Pipe Plug	-
18	L113024	2	Compression Spring	-
19	51M7048	2	O-Ring	29.600 X 2.900 mm
20	L209510	2	Fitting Plug	-
21	L209511	2	Retainer	-
22	L210454	2	Compression Spring	-
23	L154392	2	Poppet	-
24	L102649	2	Compression Spring	-
25	51M7041	3	O-Ring	11.300 X 2.200 mm
26	L102638	2	Fitting	-
27	T77613	4	O-Ring	-
28	AL113820	2	Pressure Relief Valve	-
29	51M7074	2	O-Ring	10.300 X 1.200 mm
30	L78620	2	O-Ring	-
31	L175606	2	Pipe Plug	-
32	L210455	2	Compression Spring	-
33	L209236	2	Screw	-
34	L210502	2	Piston	-
35	L173615	2	Sealing Ring	-
36	L115682	2	Scraper Ring	-
37	51M7072	2	O-Ring	32.600 X 2.900 mm
38	19M7407	2	Cap Screw	M8 X 25
39	14M7273	2	Nut	M8
40	AL113726	1	Check Valve	-
41	L53976	1	O-Ring	-
42	51M7073	1	O-Ring	11.100 X 1.600 mm
43	61M5002	1	Adapter Fitting	-
44	AL150581	1	Strainer	-
45	38H5037	1	Adapter Fitting	-
46	AL116214	1	Filter	-
47	L113190	1	Gasket	-
48	AL206812	1	Cover	-
49	L206732	1	Cover	ORDER AL206812
50	L113186	1	Pan	-
51	19M7560	6	Cap Screw	M6 X 16
52	61M5003	1	Adapter Fitting	-
53	L209237	2	Seal	-
54	L209238	2	O-Ring	-
55	L205957	1	Pin	-
56	L205958	1	Pin	-
57	L172088	1	Pipe Plug	-
58	L150055	1	Compression Spring	-
59	38H5002	1	Adapter Fitting	-
60	38H5003	1	Adapter Fitting	-
61	AL229146	6	Plug	-

Mounting Parts, Attachment, Brake Valve, Heavy-Duty Version
