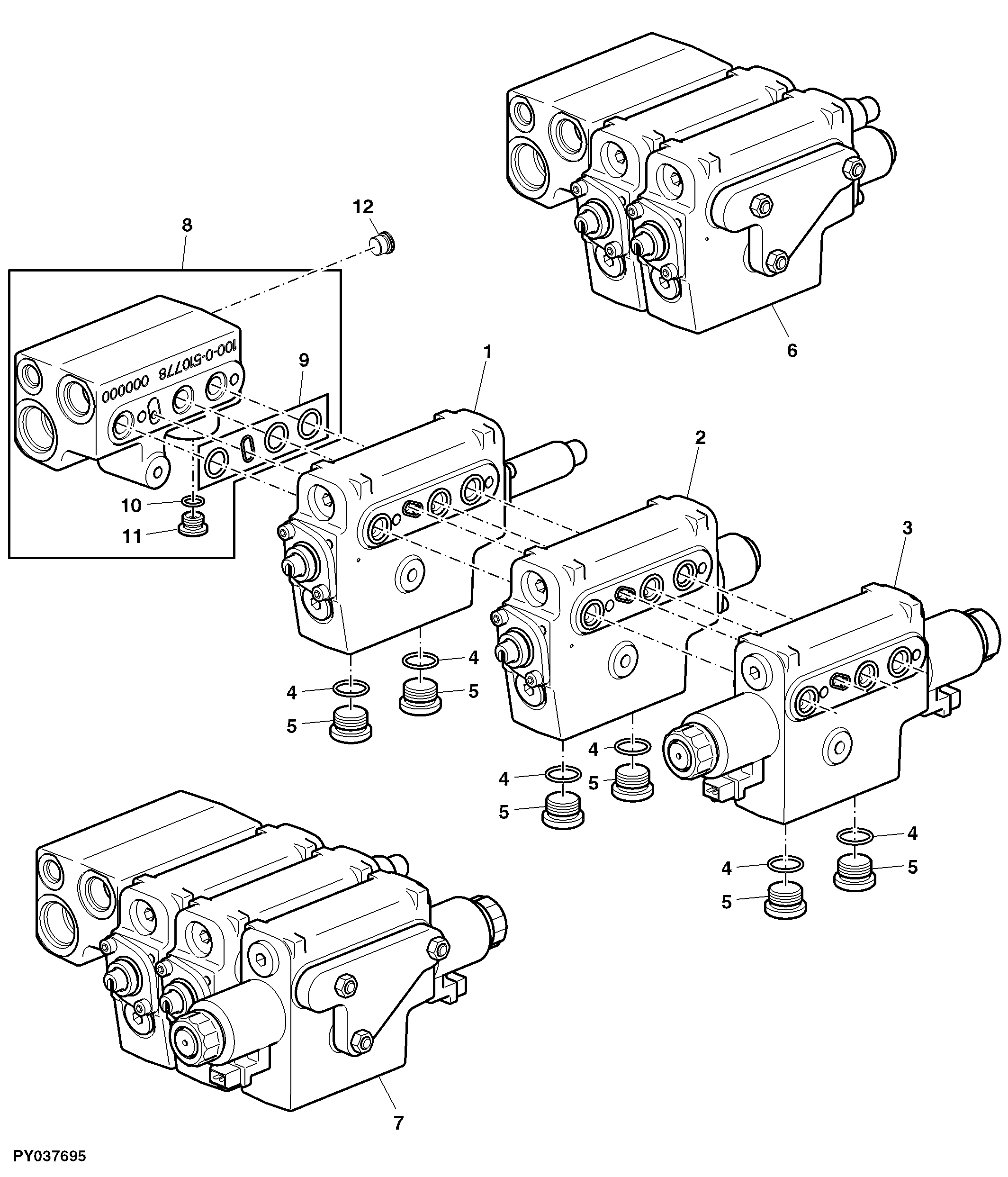

MECHANICALLY OPERATED CONTROL VALVE (M-ICV), R.H. / CENTER CAB

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL202034	1	Selective Control Valve	ORDER AL231704
1	AL178199	1	Selective Control Valve	ORDER AL231704
1	AL231704	1	Selective Control Valve	-
1	AL206041	1	Selective Control Valve	ORDER AL231704
2	AL178198	1	Selective Control Valve	ORDER AL231705
2	AL202033	1	Selective Control Valve	ORDER AL231705
2	AL206040	1	Selective Control Valve	ORDER AL231705
2	AL231705	1	Selective Control Valve	-
3	AL231706	1	Selective Control Valve	-
3	AL226326	1	Selective Control Valve	ORDER AL231706
3	AL202035	1	Selective Control Valve	ORDER AL231706
3	AL172559	1	Selective Control Valve	ORDER AL231706
4	51M7045	1	O-Ring	19.300 X 2.200 mm
5	L78975	1	Fitting Plug	ALSO ORDER 51M7045
6	AL178203	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705 AND (2) L224712
6	AL202036	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705 AND (2) L224712
6	AL207487	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705 AND (2) L224712
6	AL211998	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705 AND (2) L224712
7	AL211999	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705, AL231706 AND (2) L224712
7	AL207488	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705, AL231706 AND (2) L224712
7	AL178204	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705, AL231706 AND (2) L224712
7	AL202037	1	Selective Control Valve	ORDER AL231372, AL158828, AL231704, AL231705, AL231706 AND (2) L224712
8	AL172556	1	Valve Stack	ORDER AL231372 AND (2) AL158828
8	AL212000	1	Valve Stack	ORDER AL231372 AND (2) AL158828
8	AL231372	1	Manifold	-
9	AL172964	1	Seal Kit	ORDER AL207509
9	AL207509	1	Seal Kit	-
10	51M7041	1	O-Ring	11.300 X 2.200 mm
11	15M7076	1	Drain Plug	-
12	AL158828	2	Fitting Plug	-
12	64M5022	1	Drain Plug	-
98	AL209467	1	Seal Kit	USE WITH AL226326
..	AL203572	1	Seal Kit	(FOR AL172556) NLA; ORDER AL207508
..	AL207508	1	Seal Kit	FOR AL207487, AL207488, AL211998, AL211999
..	AL179315	1	Valve Kit	INCL (2) M-ICV, FI, CNLA, (ORD AL204116)
..	AL204116	1	Assembly Line Parts	INCL (2) M-ICV, FI, NLA ORDER AL207614
..	AL207614	1	Oil Line	INCL (2) M-ICV, FI,
..	AL179316	1	Valve Kit	INCL (3) M-ICV, FI, CNLA, (ORD AL204117)
..	AL204117	1	Assembly Line Parts	INCL (3) M-ICV, FI, NLA ORDER AL207615
..	AL207615	1	Selective Control Valve	INCL (3) M-ICV, FI,

MECHANICALLY OPERATED CONTROL VALVE (M-ICV), R.H. / CENTER CAB
