HYDROSTATIC STEERING OIL LINES (WITH AUTOTRAC)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	1	O-Ring	-
2	AL175828	1	Hydraulic Hose	-
3	AL175819	1	Valve	-
4	T77613	1	O-Ring	-
5	AL212943	2	Clamp	SUB FOR AL37489 APPL
6	L168646	2	Grommet	-
7	AL81147	1	Hydraulic Hose	RH
8	AL81146	1	Hydraulic Hose	LH
9	AL171477	1	Oil Line	RH
10	AL171478	1	Oil Line	LH
11	L38284	2	Clamp	-
12	19M8532	1	Screw	M6 X 35
13	AL161117	2	Hydraulic Hose	-
13	AL161121	2	Hydraulic Hose	(WITH SUSPENDED CAB)
14	L101560	2	Clamp	-
15	19M8274	1	Screw	M8 X 35
16	L102007	2	Grommet	-
17	AL175827	1	Hydraulic Hose	-
18	L168475	1	Strap	-
19	L168974	2	Clamp	-
20	AL172503	1	Bumper	-
21	L111480	1	Push Nut	-
22	37M7104	1	Screw	M6 X 30
23	37M7361	2	Screw	M6 X 16
24	L168973	2	Clamp	-
25	19M7286	1	Cap Screw	M6 X 25, (10.9)
26	14M7303	1	Flange Nut	M6
27	L113747	1	Pad	-
28	AL172502	1	Isolator	-
29	AL156431	2	Adapter Fitting	-
30	L169005	1	Clamp	-
31	AL175753	1	Hydraulic Hose	-
32	L204217	4	Clamp	ORDER AL208028; SUB FOR AL64588 APPL
32	AL208028	4	Clamp	-
33	T77814	1	O-Ring	-
34	L201442	1	Fitting	SUB FOR L158529
35	AL175795	1	Hydraulic Hose	-
36	19M7493	1	Cap Screw	M12 X 40, (10.9)
37	T149597	1	Clamp	-
38	24M7044	3	Washer	13 X 20 X 2 mm
39	-	1	Part 41	LGTH= 2000MM, (MF L65830)
40	19M8011	1	Cap Screw	M12 X 30, (10.9)
41	14M7275	1	Nut	M12
42	R72659	4	Clamp	-
43	-	1	Part 45	LGTH= 150MM, (MF L65830)
44	AL212942	1	Clamp	SUB FOR AL80154 APPL
45	AL116423	1	Fitting	-
46	51M7043	1	O-Ring	15.300 X 2.200 mm
47	L172248	1	Hose Guard	ORDER L201824
47	L201824	1	Hose Guard	-
48	AL180407	1	Oil Line	-
49	AL178517	1	Adapter Fitting	-
50	AL176574	1	Check Valve	-
..	L65830	1	Hose	LGTH= 6000MM

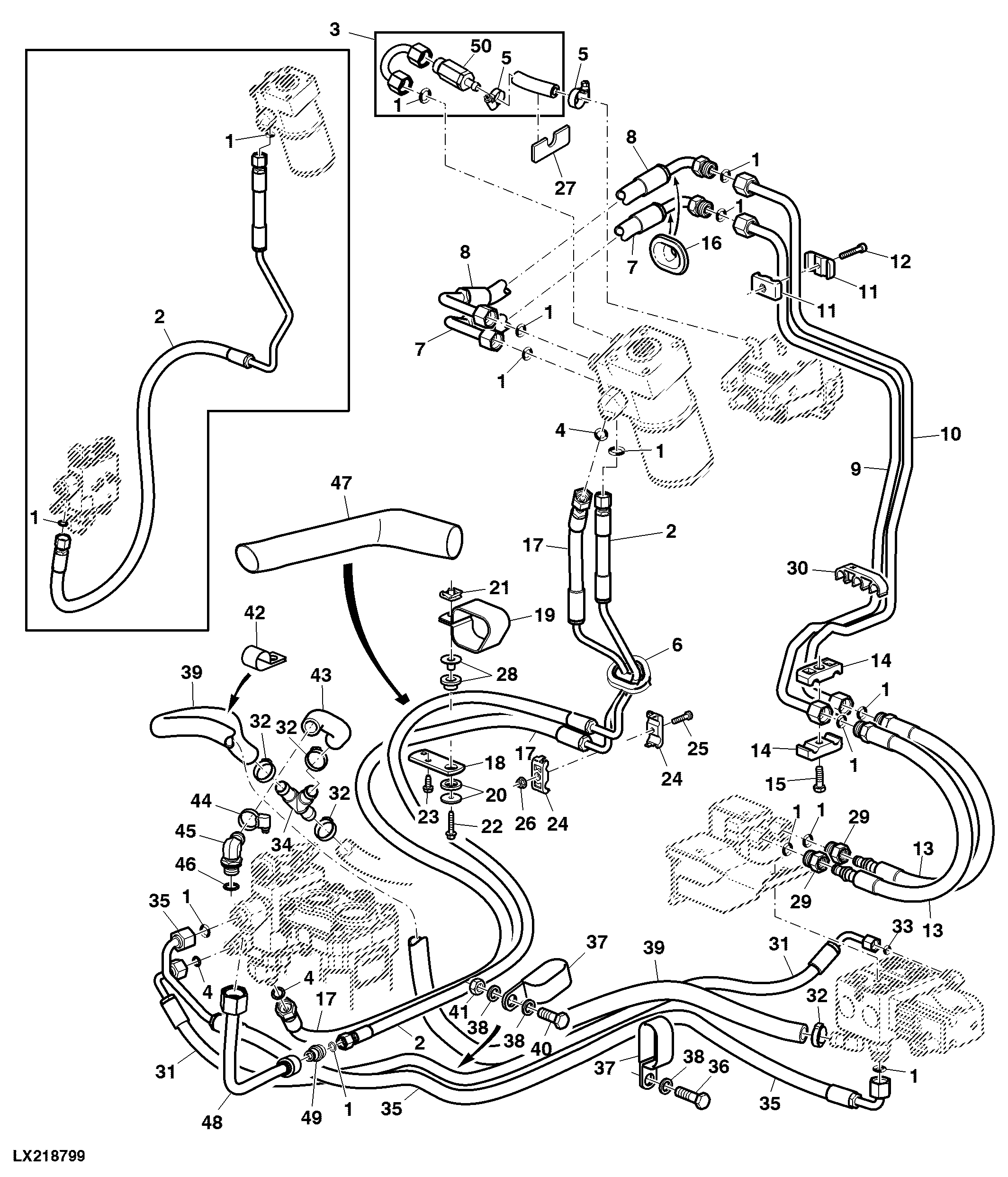

HYDROSTATIC STEERING OIL LINES (WITH AUTOTRAC)
