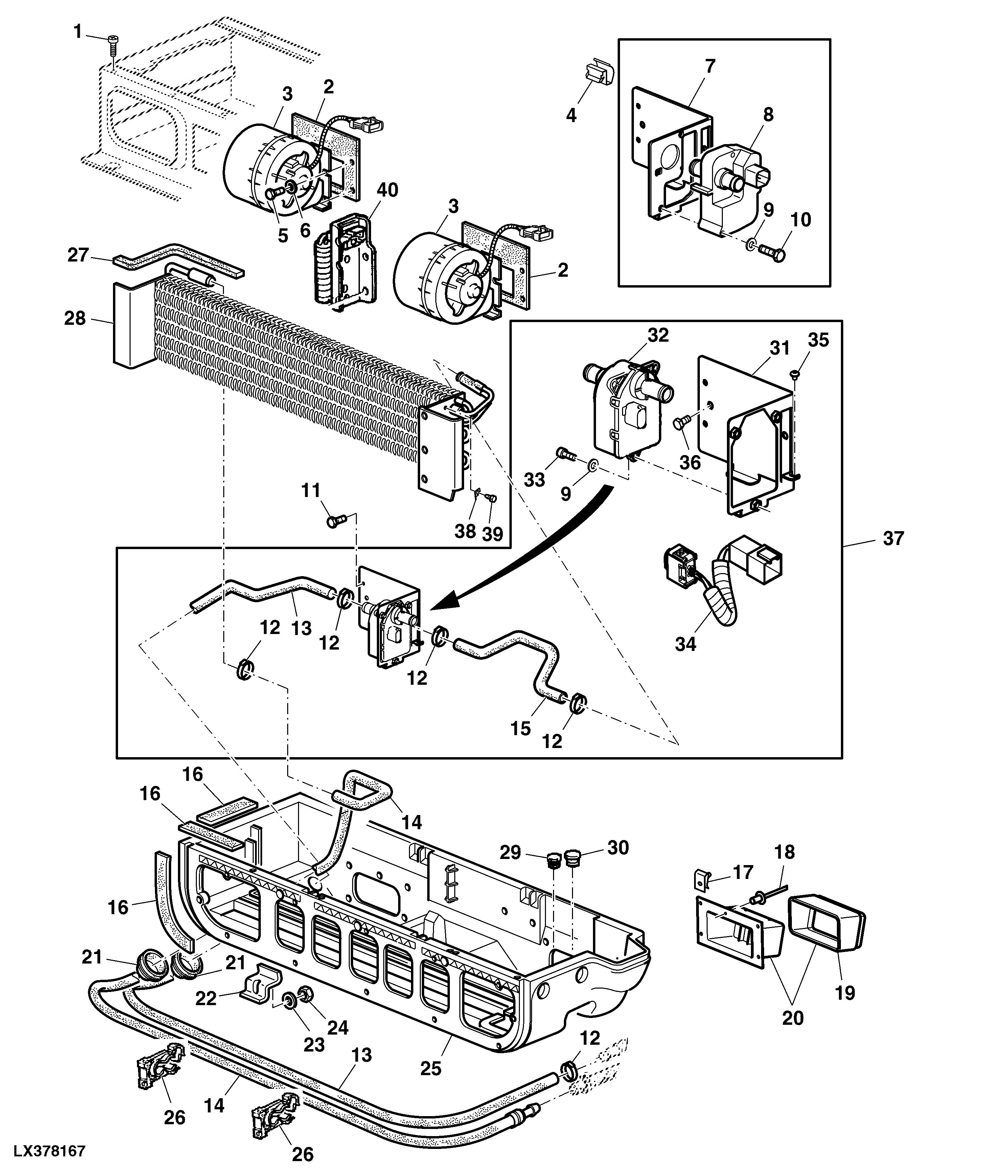

Heating and Blower

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L80023	17	Screw	-
2	L79884	2	Gasket	-
3	AL229249	2	Blower	(WITH CLIMA TRAK (AUTOMATIC TEMPERATURE CONTROL)) SUB FOR AL214942, AL173961, AL215705
3	AL215704	2	Blower	SUB FOR AL214942, AL110881
4	L153804	1	Clip	-
5	19M7286	8	Cap Screw	M6 X 25
6	24M7139	8	Washer	6.400 X 18 X 1.600 mm
7	AL161965	1	Holder	USE WITH RE228002
8	RE228002	1	Valve	ORDER AL214601
9	24M7054	1	Washer	6.400 X 12 X 1.600 mm
10	19M7160	2	Cap Screw	M6 X 30, USE WITH RE228002
11	37M7266	2	Screw	-
12	L205098	4	Clip	SUB FOR AL80154 APPL
13	L174125	1	Hose	USE WITH AL214601
13	L157926	1	Hose	USE WITH RE228002
14	AL116188	1	Hose	-
15	L157925	1	Hose	USE WITH RE228002
15	L174124	1	Hose	USE WITH AL214601
16	-	1	Part 19	LGTH = 3770 mm, MF L165436
17	L102357	8	Nut	-
18	L78561	2	Rivet	-
19	L155292	2	Insulator	-
20	AL157452	2	Air Duct	-
21	L112548	2	Grommet	-
22	L155541	2	Bracket	-
23	24M7298	2	Washer	8.400 X 25 X 2 mm
24	14M7166	2	Lock Nut	M8
25	AL225978	1	Case	SUB FOR AL116502
26	L112280	2	Clamp	-
27	L76254	1	Pad	-
28	AL163862	1	Heat Exchanger	(WITH AIR CONDITIONING) ORDER AL225309
28	AL219022	1	Heat Exchanger	(WITH AIR CONDITIONING) ORDER AL225309, INCLUDES L157246, L113870, 37M7042, 57M7116
28	AL225309	1	Heat Exchanger	(WITH AIR CONDITIONING) MARKED AL225309; INCLUDES (2) L220817, L220818, AL225312
28	AL163865	1	Radiator	(WITHOUT AIR CONDITIONING) ORDER AL229016
28	AL229016	1	Radiator	(WITHOUT AIR CONDITIONING) MARKED AL229016; SUB FOR AL206301
29	L76792	1	Plug	(WITHOUT AIR CONDITIONING)
30	99M7049	1	Plug	(WITHOUT AIR CONDITIONING)
31	AL178496	1	Holder	USE WITH AL214601
32	AL178460	1	Electric Valve	ORDER AL217099; USE WITH AL214601
32	AL217099	1	Electric Valve	USE WITH AL214601
33	19M7768	3	Screw	M6 X 16, USE WITH AL214601
34	AL178510	1	Wiring Harness	USE WITH AL214601
35	L155448	1	Screw	USE WITH AL214601
36	19M6614	2	Cap Screw	M6 X 12, USE WITH AL214601
37	AL214601	1	Hvac Supply Item	-
38	57M7116	1	Elec. Connector Terminal	USE WITH AL163865 OR AL206301
39	37M7042	1	Screw	USE WITH AL163865 OR AL206301
40	AL224589	1	Resistor Network	-
..	L165436	1	Weatherstrip	LGTH = 13000 mm
..	AL174230	1	Air Conditioner	FI
