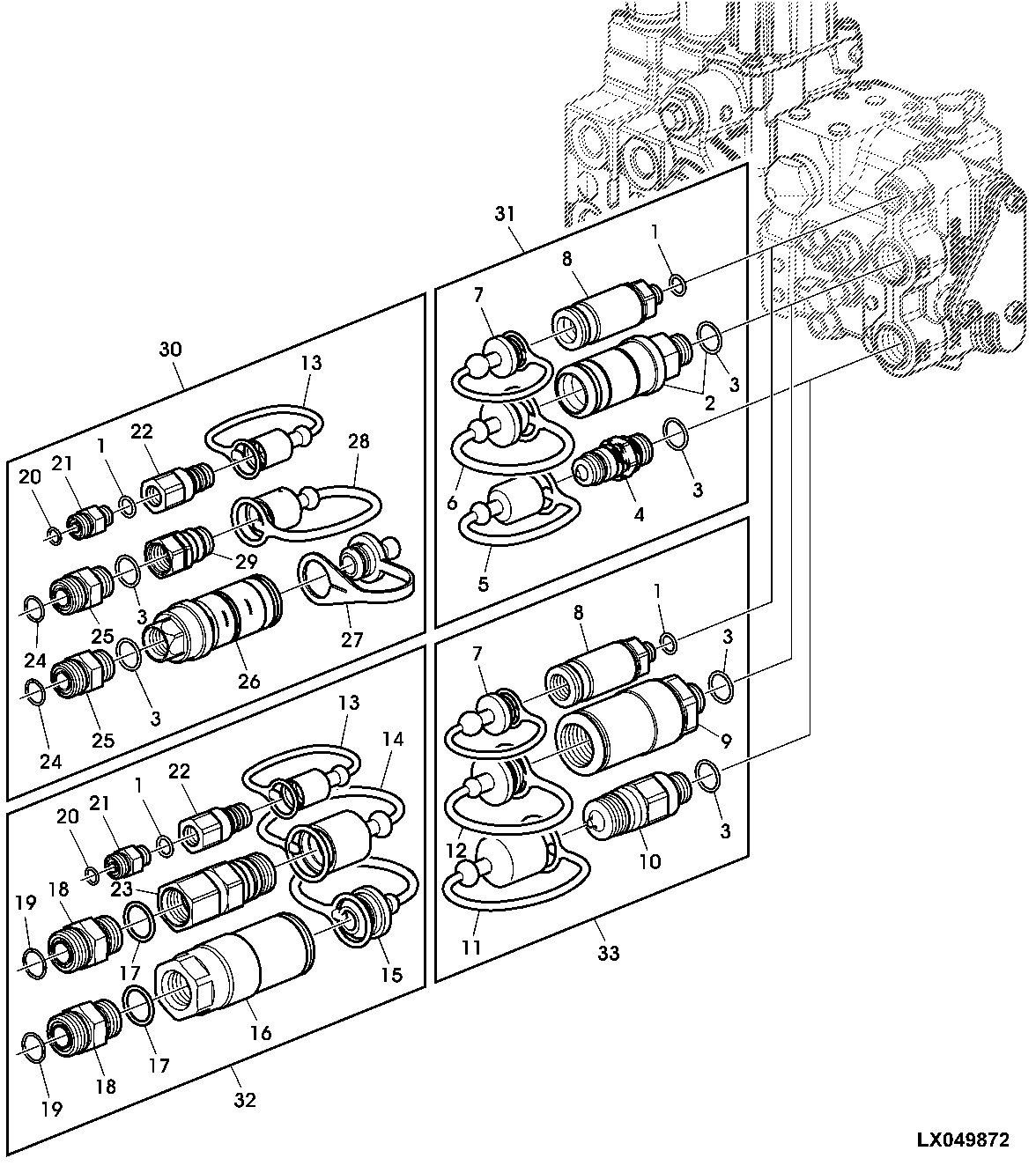

FIELD INSTALLATION KITS - POWER BEYOND OUTLETS FOR SPACER HOUSING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7041	1	O-Ring	11.300 X 2.200 mm
2	AL166181	1	Hydr. Quick Coupler Socket	ORDER AL200979
2	AL200979	1	Hydr. Quick Coupler Socket	-
3	51M7045	1	O-Ring	19.300 X 2.200 mm
4	AL176812	1	Hydr. Quick Coupler Plug	-
5	L172750	1	Dust Shield	(BLACK)
6	L172646	1	Dust Shield	(RED)
7	L172647	2	Dust Shield	(ORANGE)
8	AL170665	2	Hydr. Quick Coupler Socket	-
9	AL170667	1	Hydr. Quick Coupler Socket	-
10	AL170670	1	Hydr. Quick Coupler Plug	-
11	L172648	1	Dust Shield	(BLACK)
12	L172757	1	Dust Shield	(RED)
13	L172650	2	Dust Shield	(ORANGE)
14	L172756	1	Dust Shield	(RED)
15	L172645	1	Dust Shield	(BLACK)
16	AL170669	1	Hydr. Quick Coupler Socket	-
17	51M7047	2	O-Ring	23.600 X 2.900 mm
18	38H5005	2	Adapter Fitting	-
19	T77858	2	O-Ring	-
20	T77613	2	O-Ring	-
21	38H5002	2	Adapter Fitting	-
22	AL170666	2	Hydr. Quick Coupler Plug	-
23	AL170668	1	Hydr. Quick Coupler Plug	-
24	T77932	2	O-Ring	-
25	38H5004	2	Adapter Fitting	-
26	AL176823	1	Hydr. Quick Coupler Socket	-
27	L171561	1	Dust Shield	(BLACK)
28	L172649	1	Dust Shield	(RED)
29	AL81368	1	Hydr. Quick Coupler Plug	-
30	AL176806	1	Hydr. Quick Coupler Socket	5MM / 1/2", FI, 12
31	AL176296	1	Hyd. Quick-Connect Coupler	5MM / 1/2", FI, 12
32	AL176807	1	Hydr. Quick Coupler Socket	20MM / 3/4", FI
33	AL176297	1	Hydr. Quick Coupler Socket	20MM / 3/4", FI

FIELD INSTALLATION KITS - POWER BEYOND OUTLETS FOR SPACER HOUSING
