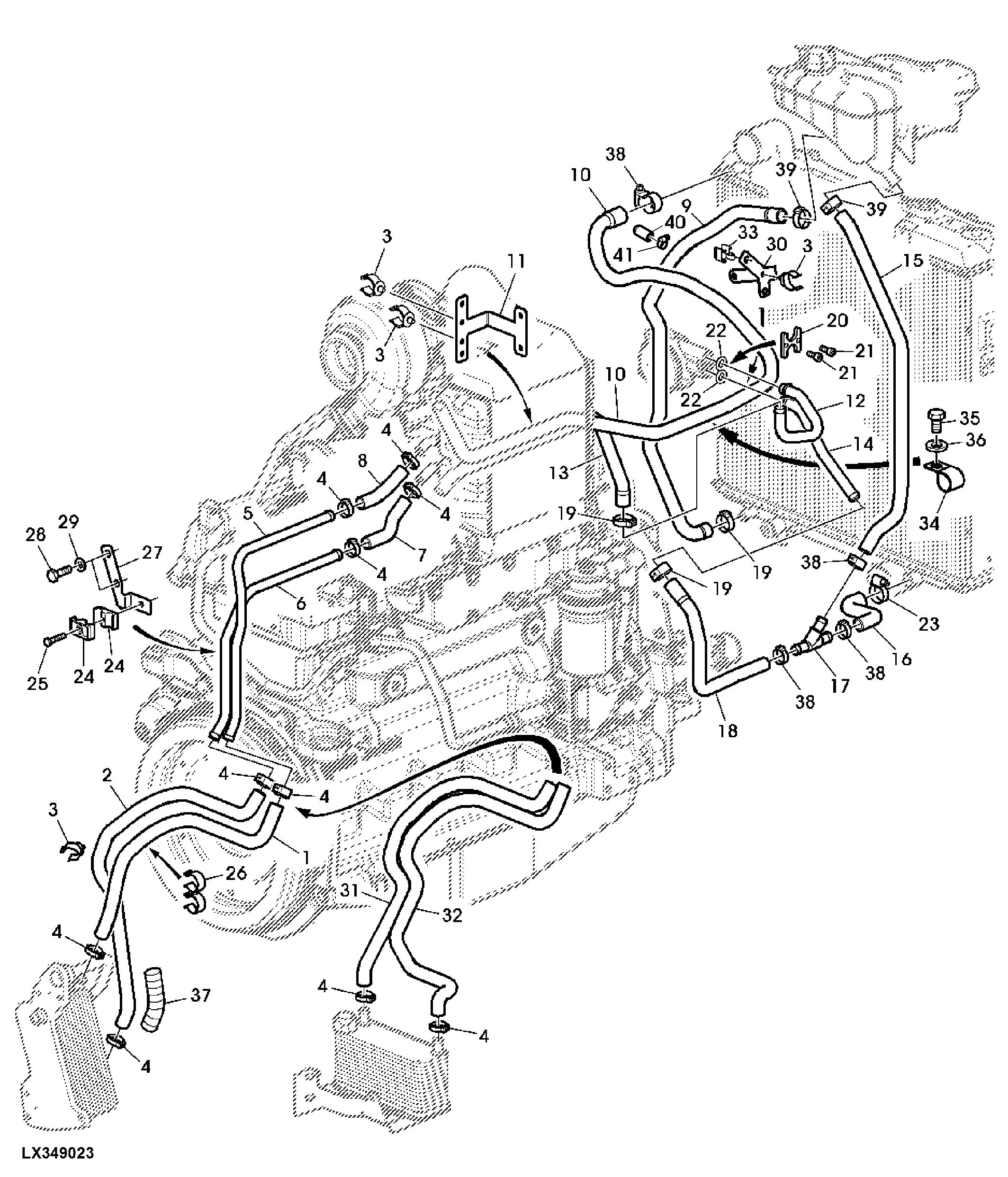

Coolant Lines For Oil Cooler And Intercooler

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L168359	1	Hose	EPQT
1	L168349	1	Hose	MPQT
2	L168360	1	Hose	EPQT
2	L168350	1	Hose	MPQT
3	L156540	5	Clamp	-
4	L204212	1	Clamp	ORDER AL208027; SUB FOR AL64588 APPL
4	AL208027	1	Clamp	-
5	L173474	1	Tube	(SUB FOR L169202)
6	L168365	1	Tube	-
7	L168939	1	Radiator Hose	-
8	L168940	1	Radiator Hose	-
9	L168956	1	Hose	-
10	L172241	1	Radiator Hose	-
11	L176390	1	Retainer	-
12	L169066	1	Tube	-
13	L168938	1	Radiator Hose	-
14	L167499	1	Tube	-
15	L168959	1	Hose	-
16	L203860	1	Hose	(SUB FOR L169063)
17	L201442	1	Fitting	(SUB FOR L158529)
18	L172365	1	Radiator Hose	NLA; ORDER L207457
18	L207457	1	Radiator Hose	-
19	AL208028	1	Clamp	-
19	L204217	5	Clamp	ORDER AL208028; SUB FOR AL64588 APPL
20	L157596	1	Plate	-
21	19M8263	2	Screw	M6 X 30
22	P50883	2	Ring	-
23	L207666	1	Hose Clamp	SUB FOR L203690 AND AL64588 APPL
24	L110815	2	Clamp	-
25	19M7160	1	Cap Screw	M6 X 30
26	AL157838	3	Clamp	-
27	AL170846	1	Bracket	-
28	19M7557	2	Cap Screw	M10 X 16
29	24M7096	2	Washer	10.500 X 18 X 1.600 mm
30	L174825	1	Retainer	(WITH AIR CONDITIONING SYSTEM / WITHOUT AIR COMPRESSOR)
30	L169825	1	Retainer	-
31	L168415	1	Hose	AUTOPOWR (SUB FOR L168417)
32	L174565	1	Hose	AUTOPOWR (SUB FOR L168416)
33	L153768	1	Clip	-
34	R72659	1	Clamp	(WITHOUT AIR CONDITIONING SYSTEM / WITH AIR COMPRESSOR)
35	19M7162	1	Cap Screw	(WITHOUT AIR CONDITIONING SYSTEM / WITH AIR COMPRESSOR) M8 X 16
36	24M7298	1	Washer	(WITHOUT AIR CONDITIONING SYSTEM / WITH AIR COMPRESSOR) 8.400 X 25 X 2 mm
37	L174214	1	Hose Guard	-
38	L207664	1	Hose Clamp	-
39	L207665	1	Hose Clamp	-
40	L169974	1	Cap	-
41	TY22462	1	Clamp	-

Coolant Lines For Oil Cooler And Intercooler
