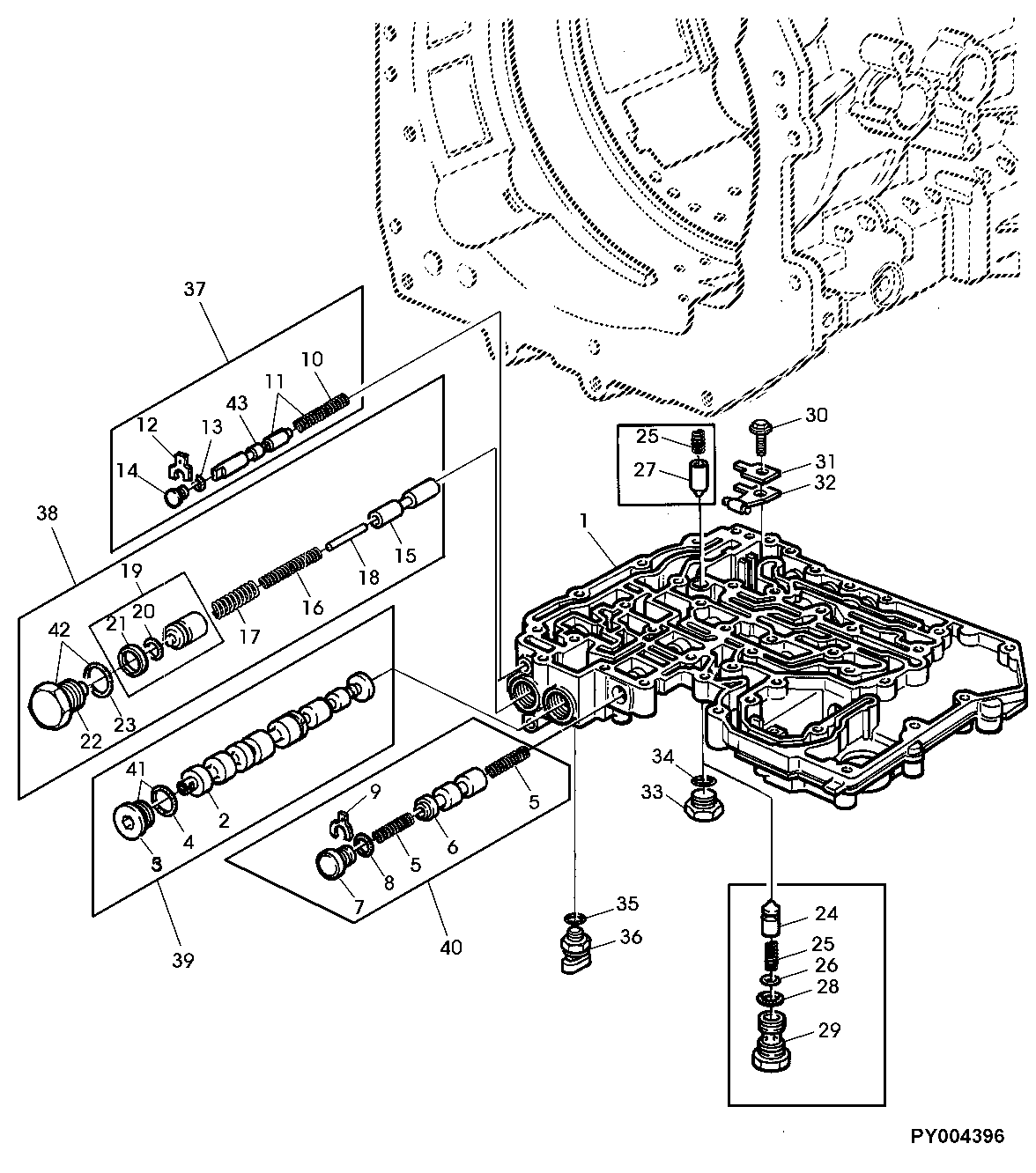

CONTROL VALVE HOUSING (WITH MECHANICAL REVERSER CONTROL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R129280	1	Housing	(SUB FOR R124020)
1	R116769	1	Housing	(ORDER R129280, R124022, R124021, R124019, R119810, 51M7045, R95065, 51M7047)
2	R124022	1	Valve	-
2	R135174	1	Valve	-
2	R119206	1	Valve	-
3	R119810	1	Fitting Plug	-
3	R134754	1	Plug	(FOR AL159449)
4	51M7047	1	O-Ring	23.600 X 2.900 mm
4	R27166	1	O-Ring	-
5	R115415	2	Compression Spring	-
6	R95506	1	Valve	-
7	R115389	1	Plug	-
8	R27166	1	O-Ring	-
9	R115388	1	Clip	-
10	R54174	1	Spring	-
11	RE54443	1	Kit	CNLA
12	R110457	1	Clip	-
13	R78436	1	O-Ring	-
14	R120354	1	Plug	-
15	R110256	1	Valve	-
16	R95216	1	Compression Spring	-
17	R112974	1	Spring	-
18	R110257	1	Pin	-
19	RE62621	1	Piston	-
20	P48347	1	O-Ring	-
21	R559032	1	Seal	-
21	R112976	1	Seal	ORDER R559032
22	R110260	1	Fitting	NLA; ORDER RE58658
23	51M7047	1	O-Ring	23.600 X 2.900 mm
24	R119646	1	Detent	-
25	R74192	2	Spring	-
26	51M7043	1	O-Ring	15.300 X 2.200 mm
27	R119084	1	Detent	-
28	51M7045	1	O-Ring	19.300 X 2.200 mm
29	R110151	1	Plug	M22X1.5X28.5
30	R119203	1	Screw	(10.9)
31	R120452	1	Washer	-
32	RE168661	1	Leaf Spring	(FORWARD, NEUTRAL, REVERSE) (SUB FOR RE54982)
33	R95065	1	Fitting	M22X2X10.5 , (FOR R124020 OR R129280)
34	51M7045	1	O-Ring	19.300 X 2.200 mm
35	51M7042	1	O-Ring	13.300 X 2.200 mm
36	RE46534	1	Switch	(NEUTRAL START SWITCH)
37	AL159462	1	Hyd Actuated Control Valve	CNLA
38	AL159448	1	Hyd Actuated Control Valve	CNLA
39	AL159449	1	Hyd Actuated Control Valve	CNLA
40	AL159450	1	Hyd Actuated Control Valve	CNLA
41	RE69772	1	Plug	(FOR AL159449)
42	RE58658	1	Fitting	-
43	R119131	1	Valve	-

CONTROL VALVE HOUSING (WITH MECHANICAL REVERSER CONTROL)
