CONTROL VALVE HOUSING (WITH ELECTR. REVERSER CONTROL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R110260	1	Fitting	NLA; ORDER RE58658
2	51M7047	3	O-Ring	23.600 X 2.900 mm
3	R559032	1	Seal	-
3	R112976	1	Seal	ORDER R559032
4	P48347	1	O-Ring	-
5	RE62621	1	Piston	-
6	R112974	1	Spring	-
7	R95216	1	Compression Spring	-
8	R110257	1	Pin	-
9	R110256	1	Valve	-
10	44M7124	1	Dowel Pin	(SUB FOR 44M7065)
11	RE65943	1	Plug	-
12	RE67018	1	Pin Fastener	-
13	R135093	1	Snap Ring	(SUB FOR R115388)
14	R128543	1	Valve	-
15	R115388	1	Clip	-
16	R115389	1	Plug	-
17	R27166	1	O-Ring	-
18	R115415	2	Compression Spring	-
19	R95506	1	Valve	-
20	RE47392	1	O-Ring Kit	-
21	-	1	Part 22	(ORDER RE64195)
22	RE50782	1	Solenoid Valve Coil	-
23	RE64195	3	Solenoid Valve	-
24	R109691	1	Nut	-
25	RE212880	1	Pressure Switch	(SUB FOR RE46576, RE69675, RE165069, RE190352 APPL)
26	R109066	8	Screw	M6X80, (10.9)
27	R128356	1	Cover	-
28	R128539	1	Gasket	-
29	RE46534	1	Switch	(NEUTRAL START SWITCH)
30	51M7042	1	O-Ring	13.300 X 2.200 mm
31	RE46684	1	Fitting Plug	-
32	51M7041	1	O-Ring	11.300 X 2.200 mm
33	R54174	1	Spring	-
34	R128545	1	Valve	-
35	RE65944	1	Plug	-
36	RE68179	1	Housing	-
37	R121580	5	Pipe Plug	-
38	AL159448	1	Hyd Actuated Control Valve	CNLA
39	AL159463	1	Hyd Actuated Control Valve	CNLA
40	AL159450	1	Hyd Actuated Control Valve	-
41	AL159464	1	Hyd Actuated Control Valve	CNLA
42	RE58658	1	Fitting	-

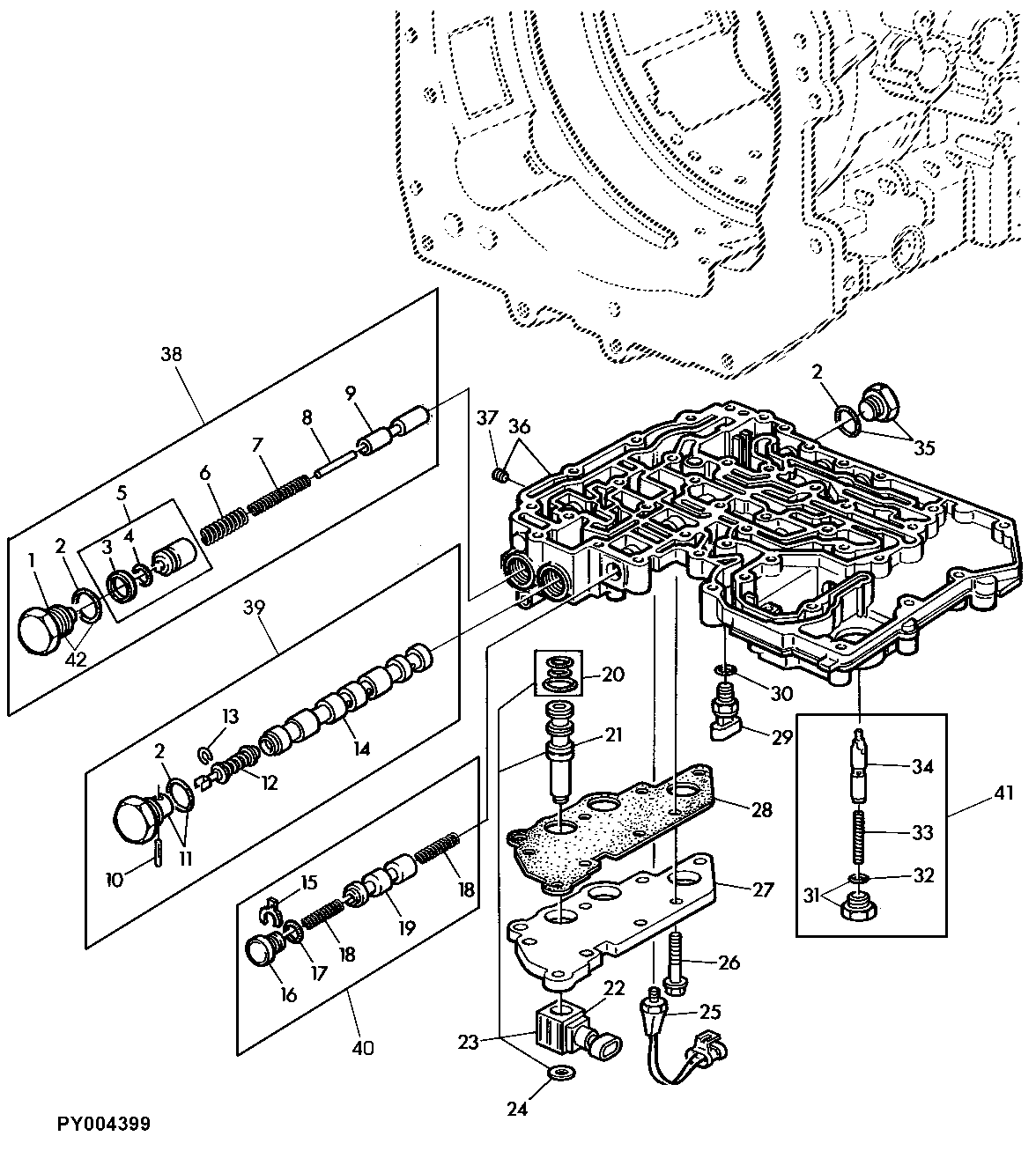

CONTROL VALVE HOUSING (WITH ELECTR. REVERSER CONTROL)
