Открытый узел

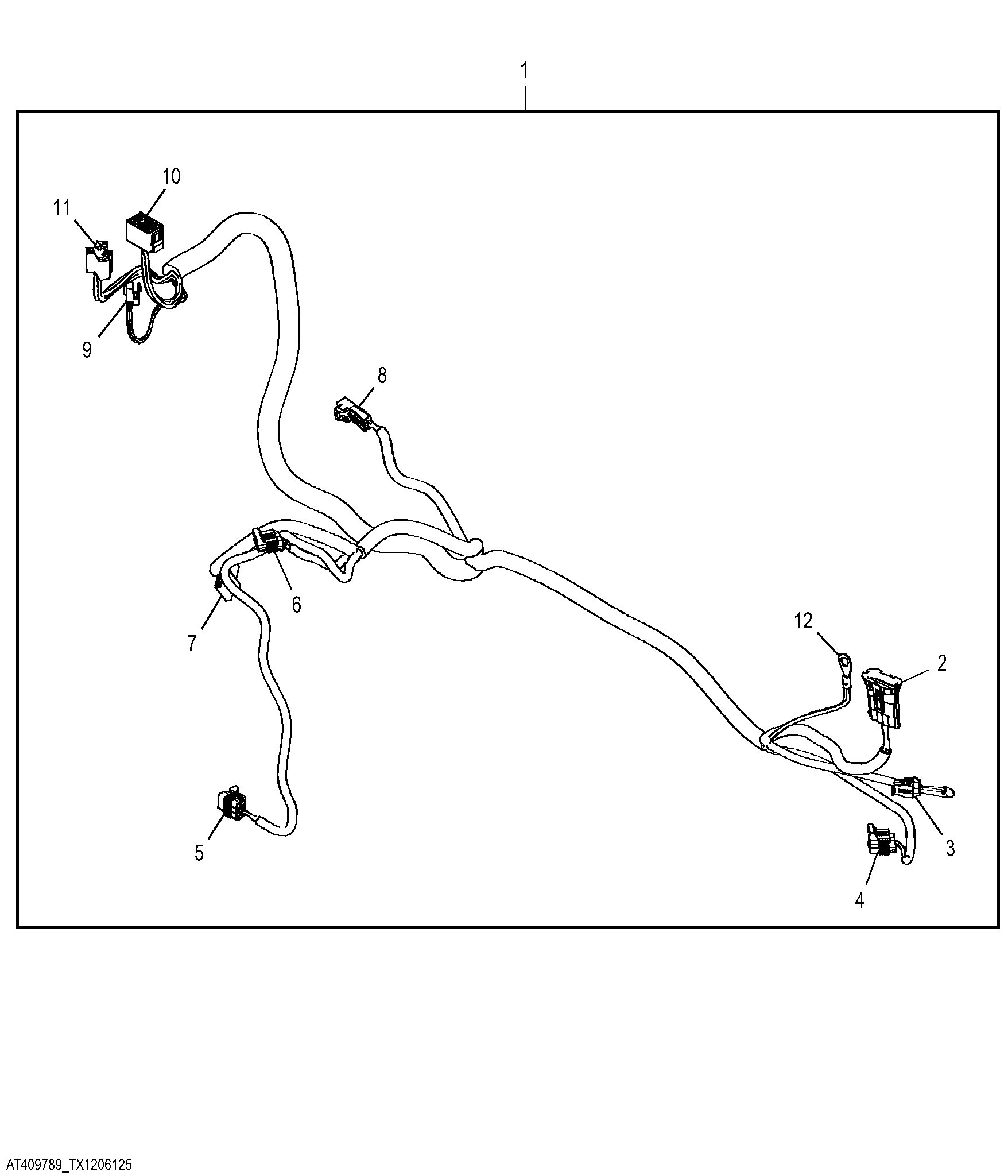

HVAC Module Wiring Harness Connectors

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT489829	1	Cab Wiring Harness	HVAC Module Wiring Harness, SUB FOR AT409789
2	57M7807	1	Electrical Connector Assy	Cab Harness Power Input
2	57M7527	3	Elec. Connector Terminal	-
2	R78063	3	Elec. Connector Seal	-
2	57M7285	1	Elec. Connector Terminal	-
2	R78059	1	Elec. Connector Seal	-
2	57M7809	1	Elec. Connector Accessory	-
3	57M9883	2	Elec. Connector Cable Seal	-
3	57M7289	1	Elec.Connect Locking Device	-
3	R104846	2	Elec. Connector Terminal	-
3	57M7328	1	Elec. Connector Housing	A/C Pressure Switch
4	57M7260	1	Elec. Connector Housing	Hot Water Valve Actuator
4	R104846	3	Elec. Connector Terminal	-
4	57M7258	3	Elec. Connector Seal	-
4	57M7291	1	Electrical Connector Assy	-
4	57M7259	3	Elec. Connector Seal	-
5	57M7259	3	Elec. Connector Seal	-
5	57M7291	1	Electrical Connector Assy	-
5	R104846	3	Elec. Connector Terminal	-
5	57M7260	1	Elec. Connector Housing	Defog Actuator
5	57M9883	3	Elec. Connector Cable Seal	-
6	57M7255	1	Elec. Connector Housing	A/C Freeze Switch
6	R104846	3	Elec. Connector Terminal	-
6	57M9883	3	Elec. Connector Cable Seal	-
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7457	1	Elec. Connector Housing	Cab Blower Restrictor
7	57M9461	4	Elec. Connector Terminal	-
8	57M10432	1	Elec.Connect Locking Device	-
8	57M7586	2	Elec. Connector Terminal	-
8	57M11357	1	Elec. Connector Housing	Cab Blower Motor
9	57M8270	1	Elec. Connector Housing	Hot Water Valve Control Switch
9	57M7501	3	Elec. Connector Terminal	-
9	57M10432	1	Elec.Connect Locking Device	-
9	57M7726	1	Electrical Connector Assy	-
10	57M10961	1	Elec. Connector Housing	Defog Mode Switch
10	57M7429	3	Elec. Connector Terminal	-
10	57M7512	2	Elec. Connector Terminal	-
11	RE46734	1	Electrical Connector Assy	Blower Motor Switch
11	57M7512	5	Elec. Connector Terminal	-
12	57M9942	1	Elec. Connector Terminal	Cab Ground Stud

HVAC Module Wiring Harness Connectors

Нет текстового описания
