Topcon Electrical Controller

Topcon Electrical Controller

Topcon Electrical Controller

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Topcon Electrical Controller

Нет текстового описания

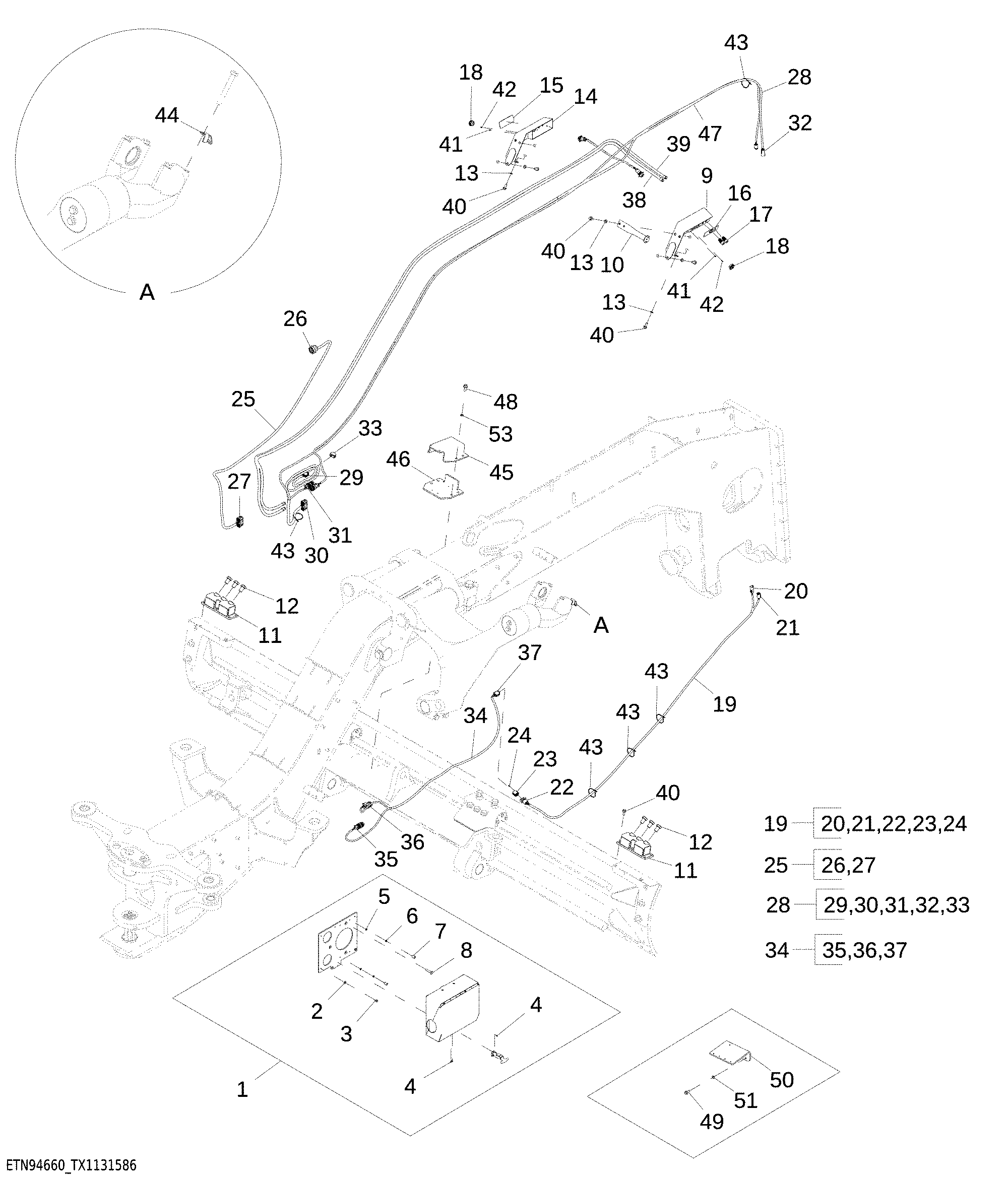

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT416535	1	Cover Kit	-
2	24M7139	5	Washer	6.400 X 18 X 1.600 mm
3	19M7774	5	Screw	M6 X 12
4	21M7295	4	Screw	M4 X 6
5	24M7293	4	Washer	6.500 X 13 X 1.600 mm
6	14M7194	4	Nut	M6
7	AT143583	4	Isolator	-
8	19M9109	3	Screw	M10 X 50
9	AT503403	1	Bracket	RH, SUB FOR AT418254
10	AT418640	1	Bracket	Strain Relief
11	AT416931	2	Bracket	Clamp Mounting
12	19M8543	6	Cap Screw	M20 X 30
13	24M7618	9	Washer	11 X 20 X 2 mm
14	AT503404	1	Bracket	LH Bulkhead, SUB FOR AT418255
15	T323906	1	Label	Topcon Hole Cover
16	T334715	1	Label	Topcon Hole Cover
17	57M11757	2	Elec. Connector Housing	-
18	57M11633	2	Elec. Connector Accessory	-
19	AT416537	1	Wiring Harness	Topcon Draft Frame Harness
20	57M8017	1	Elec. Connector Housing	4 Way Deutsch Receptacle
20	R78066	4	Elec. Connector Terminal	-
21	57M7630	1	Electrical Connector Assy	6 Way Deutsch Receptacle
21	R78065	4	Elec. Connector Terminal	-
21	R78069	2	Elec. Connector Cavity Plug	-
22	57M7631	1	Elec. Connector Housing	8 Way Deutsch Receptacle
22	R78066	8	Elec. Connector Terminal	-
23	57M8010	1	Electrical Connector Assy	-
24	R78069	8	Elec. Connector Cavity Plug	-
25	AT416538	1	Wiring Harness	Topcon MCR3 Breakout Harness
26	57M7749	1	Electrical Connector Assy	23 Way Deutsch
26	R78066	15	Elec. Connector Terminal	-
26	R78069	8	Elec. Connector Cavity Plug	-
27	57M11067	15	Elec. Connector Terminal	-
27	F055284	1	Elec. Connector Terminal	40 Way Deutsch
27	57M7771	25	Elec. Connector Terminal	-
28	AT416539	1	Wiring Harness	Topcon MCR3 Breakout Harness
29	57M11581	1	Elec. Connector Housing	8 Way Deutsch Connector
29	R78066	7	Elec. Connector Terminal	-
29	R78069	1	Elec. Connector Cavity Plug	-
30	57M11532	1	Elec. Connector Housing	MCR3 Controller
30	57M11067	17	Elec. Connector Terminal	-
30	57M7771	23	Elec. Connector Terminal	-
31	57M11631	1	Elec. Connector Housing	Mainfall Sensor
31	57M9181	6	Elec. Connector Cable Seal	-
32	57M7629	1	Elec. Connector Housing	6 Way Deutsch Receptacle
32	R78066	6	Elec. Connector Terminal	-
33	57M11288	1	Elec. Connector Accessory	-
34	AT421764	1	Wiring Harness	Topcon Slope Sensor Harness
34	AT472114	1	Wiring Harness	Topcon Slope Sensor Harness
35	57M11631	1	Elec. Connector Housing	Slope Sensor, 16
36	57M14233	1	Elec. Connector Housing	MC2 Sensor, 17
37	R78065	8	Elec. Connector Terminal	-
37	57M8011	1	Elec.Connect Locking Device	-
37	57M8010	1	Electrical Connector Assy	8 Way Deutsch Connector, 18
38	AT427526	1	Cable	-
39	AT427527	1	Cable	-
40	19M9845	16	Screw	M10 X 25, USE WITH T322386
41	21M7395	2	Screw	M4 X 8
42	19H4047	8	Screw	0.112" X 3/8"
43	H77698	11	Tie Band	-
44	T354230	1	Plate	SUB FOR T314990
45	T381817	1	Bracket	-
46	T381816	1	Bracket	-
47	AT489140	1	Wiring Harness	Topcon Front Platform Harness Components on Separate Page, SUB FOR AT416534
48	19M9347	4	Screw	M12 X 30, USE WITH T381816 AND T381817
49	19M9845	1	Screw	M10 X 25
50	T322386	1	Bracket	-
51	24M7618	2	Washer	11 X 20 X 2 mm, USE WITH T322386
