Heating and Air Conditioning Lines and Controls (671138 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7100	3	Washer	6.600 X 22 X 2 mm
2	37M7104	3	Screw	M6 X 30
3	T262451	1	Instrument Panel	Climate Control
4	T263292	1	Label	Climate Control
5	24H1646	4	Washer	17/64" X 3/4" X 0.060"
6	21M7310	4	Screw	M6 X 25
7	AT515826	1	Temperature Switch	Heating and Air Conditioning, SUB FOR AT219733
8	57M8843	1	Elec. Connector Housing	-
9	AL76568	2	Knob	-
10	R44165	2	Lock Nut	-
11	AT471493	1	Switch	Rotary, SUB FOR RE43497
12	AT449416	1	Line	Liquid Refrigerant
13	T355726	1	Sealing Washer	-
14	AT449417	1	Line	Suction
15	T356709	1	Sealing Washer	-
16	T292623	1	Hose	Core to Valve
17	AT502345	1	Valve	Water Valve 12V, SUB FOR AT399873; INCLUDES T250874, AT502344, AT399974, (5) 37H95 AND AT452016
17	AT399974	1	Valve	Water Bypass
17	T250874	1	Adapter Fitting	-
17	37H95	4	Screw	-
18	T292622	1	Hose	Valve to Floor
19	T292695	1	Hose	Core To Tee
20	T292696	1	Hose	Tee To Floor
21	T292697	1	Hose	Valve To Tee
22	T184924	10	Hose Clamp	-
23	T166297	1	Grommet	-
24	T202742	1	Seal	-
25	T204124	1	Pad	-
26	T196079	2	Nut	-
27	24M7298	2	Washer	8.400 X 25 X 2 mm
28	19M7800	2	Screw	M8 X 50
29	AT394450	1	Restrictor	-
30	T160492	2	Fitting	-
31	R44302	2	Tie Band	-
32	R44302	2	Tie Band	-
33	AT375468	1	Switch	Defrost Control
34	AT502344	1	Actuator	12 V, SUB FOR AT363217
35	T303595	1	Adapter	-
36	-	1	Part 39	MAKE FROM T58056,CTL 512 mm (1.68 ft)
37	T278106	3	Spacer	-
38	24M7117	3	Washer	4.300 X 9 X 0.800 mm
39	19M9326	3	Screw	M4 X 30
40	AT489829	1	Cab Wiring Harness	HVAC Module, SUB FOR AT409789
41	57M7809	1	Elec. Connector Accessory	-
41	R78059	1	Elec. Connector Seal	-
41	R78063	3	Elec. Connector Seal	-
41	57M7527	3	Elec. Connector Terminal	-
41	57M7807	1	Electrical Connector Assy	X28B, Cab Harness Power Input
41	57M7285	1	Elec. Connector Terminal	-
42	57M7328	1	Elec. Connector Housing	B35, A/C Pressure Switch
42	R104846	2	Elec. Connector Terminal	-
42	57M9883	2	Elec. Connector Cable Seal	-
42	57M7289	1	Elec.Connect Locking Device	-
43	57M7291	1	Electrical Connector Assy	-
43	57M7259	3	Elec. Connector Seal	-
43	57M9883	3	Elec. Connector Cable Seal	-
43	R104846	3	Elec. Connector Terminal	-
43	57M7260	1	Elec. Connector Housing	M15, Defog Actuator
44	57M7255	1	Elec. Connector Housing	B34, A/C Freeze Switch
44	R104846	3	Elec. Connector Terminal	-
44	57M9883	3	Elec. Connector Cable Seal	-
44	57M7289	1	Elec.Connect Locking Device	-
45	57M11357	1	Elec. Connector Housing	M5, Cab Blower Motor
45	57M7586	2	Elec. Connector Terminal	-
45	57M10432	1	Elec.Connect Locking Device	-
46	57M7726	1	Electrical Connector Assy	-
46	57M10432	1	Elec.Connect Locking Device	-
46	57M8270	1	Elec. Connector Housing	B20, Hot Water Valve Control Switch
46	57M7501	3	Elec. Connector Terminal	-
47	57M10961	1	Elec. Connector Housing	S54, Defog Mode Switch
47	57M7429	3	Elec. Connector Terminal	-
47	57M7512	2	Elec. Connector Terminal	-
48	RE46734	1	Electrical Connector Assy	S10, Blower Motor Switch
48	57M7512	5	Elec. Connector Terminal	-
49	T186793	3	Label	-
50	T239763	1	Funnel	Condensate Drain
51	T265735	1	Isolator	-
52	T330289	1	Check Valve	Duck Bill Condensate Drain
53	H224073	2	Tie Band	-
54	14M7426	1	Lock Nut	M8
55	R10093	1	O-Ring	-
56	RE157329	1	Switch	Pressure Switch
57	R115893	1	Tee Fitting	-
58	57M7260	1	Elec. Connector Housing	M14 , Hot Water Valve Actuator
58	R104846	3	Elec. Connector Terminal	-
58	57M7258	3	Elec. Connector Seal	-
58	57M7291	1	Electrical Connector Assy	-
58	57M7259	3	Elec. Connector Seal	-
59	57M9942	1	Elec. Connector Terminal	W13, Cab Ground Stud
60	57M7457	1	Elec. Connector Housing	R6, Cab Blower Restrictor
60	57M9461	4	Elec. Connector Terminal	-

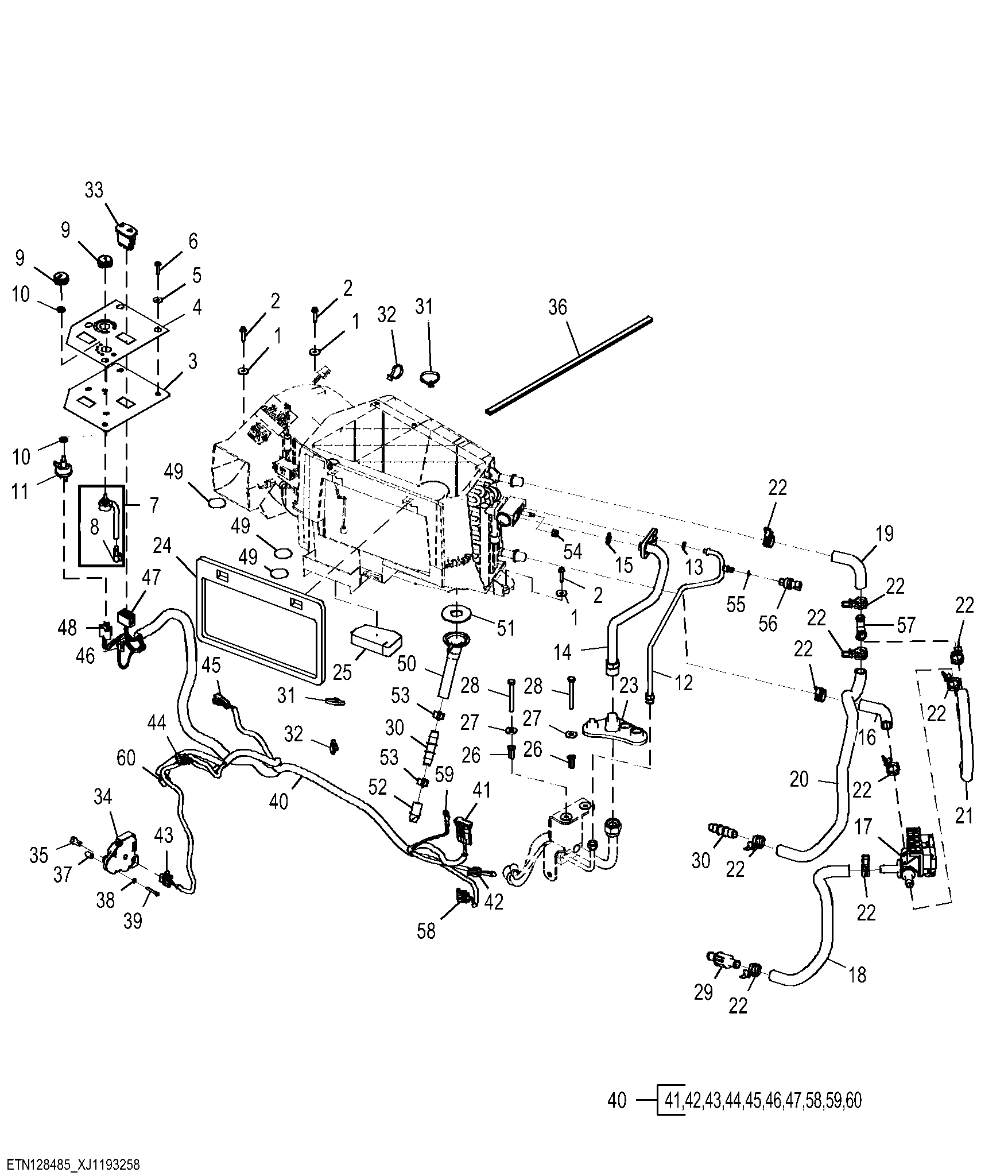

Heating and Air Conditioning Lines and Controls (671138 - )
