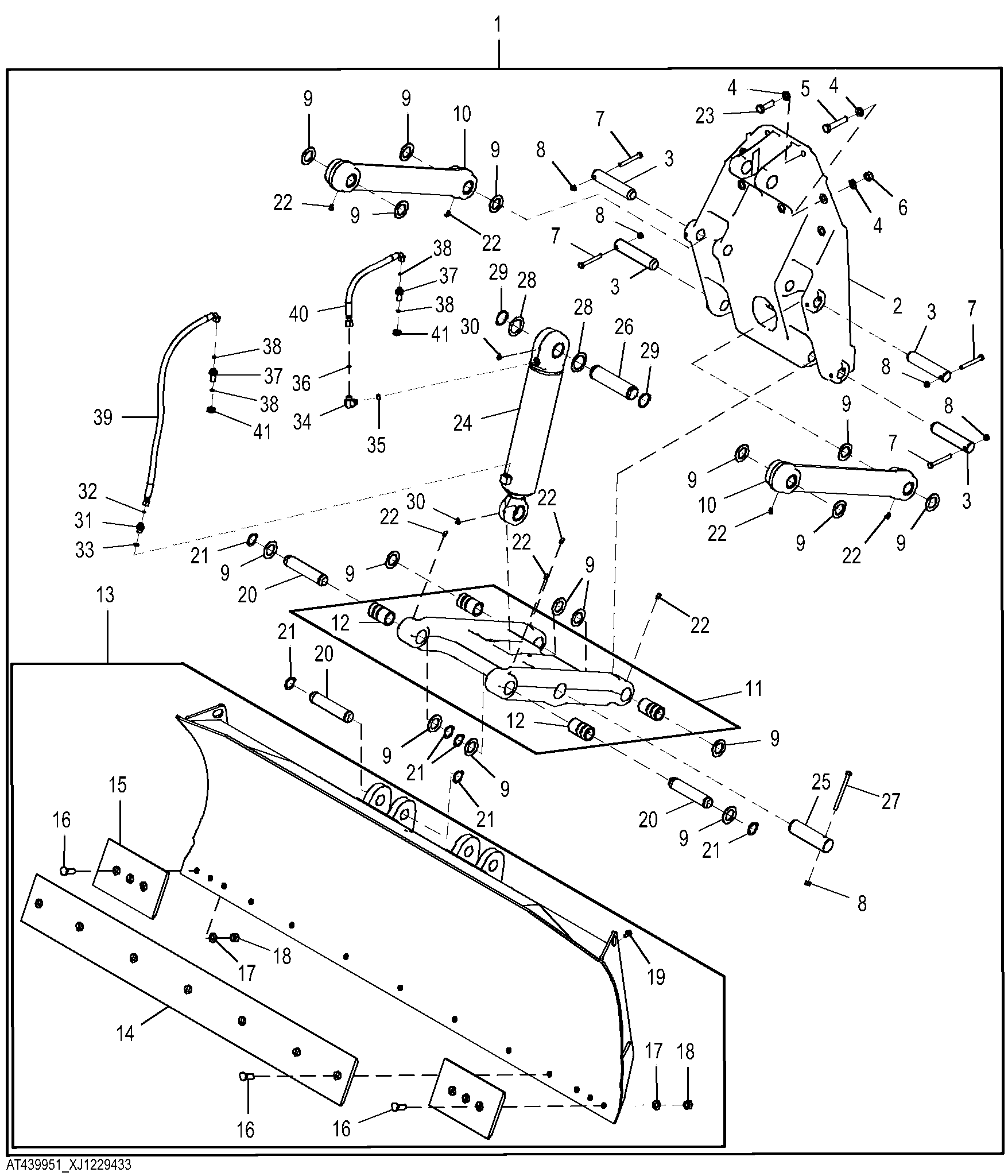

Front Mounted Dozer Blade Kit, 97 in (246.38 cm)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT12162	1	Dozer Blade	Front Dozer Blade Whole Goods
1	AT439951	1	Dozer Blade	Front Dozer Blade Whole Goods
2	T147700	1	Bracket	-
3	U41528	4	Pin Fastener	-
4	T83426	23	Washer	-
5	19H3196	10	Cap Screw	3/4" X 4"
6	14H1058	10	Nut	3/4"
7	19H2123	4	Cap Screw	1/2" X 4-1/4"
8	K40014	5	Lock Nut	-
9	24H1571	16	Washer	1-25/32" X 2-7/8" X 0.120"
10	AT458002	2	Link	-
11	AT458003	1	Scarifier Boom	Convenience Assembly
12	T216283	4	Bushing	-
13	AT400216	1	Blade	LF
14	T120979	1	Cutting Edge	-
15	T120978	2	End Bit	-
16	T70286	13	Bolt	-
17	T10510	13	Washer	-
18	14H794	13	Nut	3/4"
19	19M7784	10	Screw	M10 X 20
20	T152047	4	Pin	-
21	U12167	8	Snap Ring	-
22	JD7781	8	Lubrication Fitting	-
23	19H2411	3	Cap Screw	3/4" X 2-1/2"
24	AHC16772	1	Hydraulic Cylinder	Components Listed On Separate Page
25	T125945	1	Pin Fastener	-
26	T142485	1	Pin	-
27	19H2068	1	Cap Screw	1/2" X 6"
28	24H1679	2	Washer	2-17/64" X 3-1/4" X 0.060"
29	40M7066	2	Snap Ring	-
30	JD7799	2	Lubrication Fitting	-
31	38H5012	1	Adapter Fitting	-
32	T77613	1	O-Ring	-
33	51M7043	1	O-Ring	15.300 X 2.200 mm
34	38H5017	1	Elbow Fitting	-
35	51M7043	1	O-Ring	15.300 X 2.200 mm
36	T77857	1	O-Ring	-
37	38H5100	2	Union Fitting	-
38	T77613	4	O-Ring	-
39	AT439934	1	Hydraulic Hose	Fabricate
40	AT439935	1	Hydraulic Hose	Fabricate
41	38H5091	2	Nut	11/16"

Front Mounted Dozer Blade Kit, 97 in (246.38 cm)

Нет текстового описания
