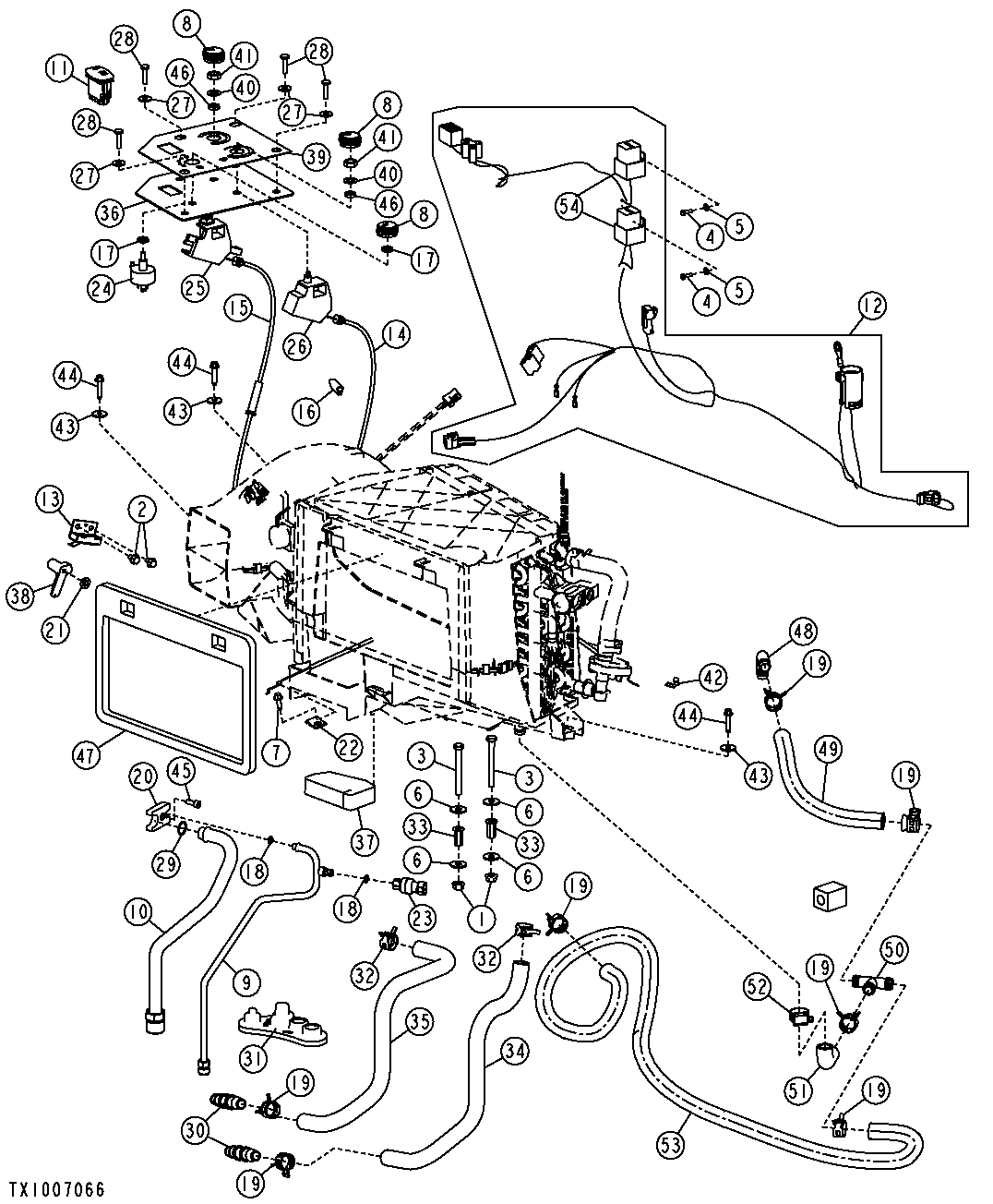

Heating and Air Conditioning Lines and Controls

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	1	Flange Nut	M8
2	19M7774	2	Screw	M6 X 12
3	19M8403	2	Cap Screw	M8 X 75
4	19M9224	2	Cap Screw	M4 X 14, SUB FOR 21M7250
5	24M7087	2	Washer	5.500 X 10 X 1 mm
6	24M7298	4	Washer	8.400 X 25 X 2 mm
7	37M7131	1	Screw	M6 X 20
8	AL76568	3	Knob	-
9	AT303467	1	Line	-
10	AT303469	1	Line	-
11	AT303865	1	Toggle/Rocker Switch	On/Off
12	AT305547	1	AC Compressor WRG Harness	-
13	AT306056	1	Switch	Park Lock
14	AT310795	1	Cable	-
15	AT310810	1	Cable	-
16	-	4	Part 16	CUT TO LENGTH
17	E46066	2	Nut	-
18	R183409	2	O-Ring	SUB FOR R10093, THIS APPLICATION
19	R117721	2	Clamp	-
19	R117721	9	Clamp	-
20	R125223	1	Plate	-
21	R192109	1	Push Nut	-
22	R31654	1	CLAMP	-
23	RE157329	1	Switch	-
24	RE43497	1	Switch	-
25	RE46742	1	Control	-
25	12H292	1	Lock Washer	1/2"
25	14H934	1	Nut	7/16"
26	RE46743	1	Control	Fan Speed
27	24H1821	4	Washer	9/32" X 47/64" X 1/16"
28	21M7310	4	Screw	M6 X 25
29	R183412	1	O-Ring	SUB FOR T143169 , THIS APPLICATION
30	T160492	2	Fitting	-
31	T166297	1	Grommet	-
32	T184924	2	Hose Clamp	-
33	T196079	2	Nut	-
34	T202034	1	Hose	-
35	T202035	1	Hose	-
36	T202800	1	Instrument Panel	-
37	T204124	1	Pad	-
38	T204274	1	Arm	-
39	T205370	1	Label	-
40	12H325	2	Lock Washer	7/16", No Longer Required
41	14H934	2	Nut	7/16", No Longer Required
42	L57881	1	Clip	-
43	24M7100	3	Washer	6.600 X 22 X 2 mm
44	37M7104	3	Screw	M6 X 30
45	19M8553	1	Screw	M6 X 16
46	R203687	2	Nut	-
47	T202742	1	Seal	-
48	E90729	2	Fitting	-
49	-	1	Part 52	CUT TO LENGTH, MAKE FROM TY22328
50	R115893	1	Tee Fitting	-
51	R99254	1	Hose	-
52	AR21837	2	Clamp	-
53	-	1	Part 56	CUT TO LENGTH, MAKE FROM TY22328
54	AT162863	2	Relay	-
