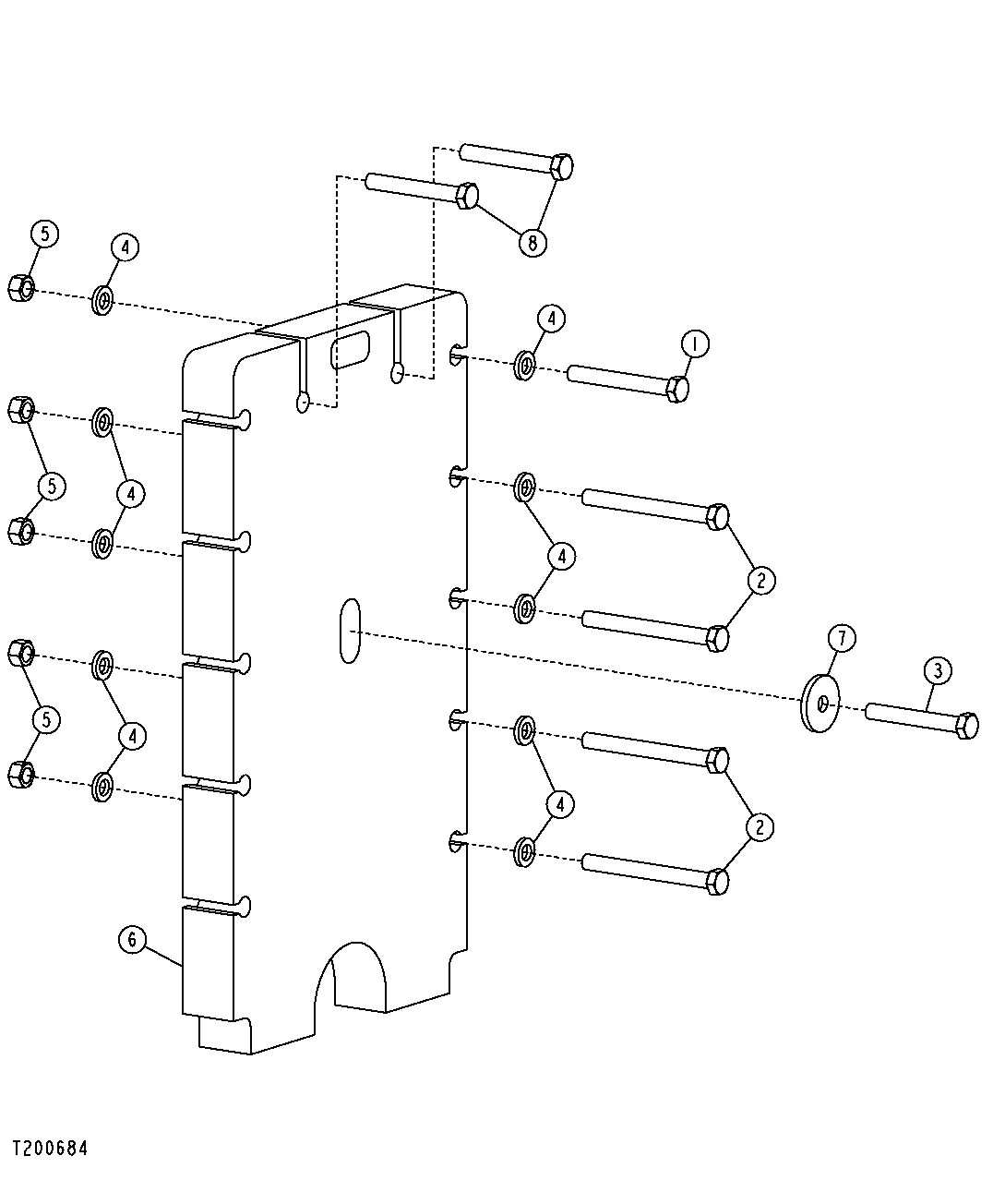

Front Mounted Weight

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3307	2	Cap Screw	3/4" X 6", With 500 Pound Front Weight With Front Equipment, SUB FOR 19H1988, THIS APPLICATION
1	19H3307	10	Cap Screw	3/4" X 6", With 500 Pound Front Weight, SUB FOR 19H1988, THIS APPLICATION
2	19H3740	4	Cap Screw	3/4" X 7-1/2", Without Front Mounted Equipment
2	19H3740	10	Cap Screw	3/4" X 7-1/2", With 500 Pound Front Weight With Front Equipment
2	19H3234	10	Cap Screw	3/4" X 8-1/2", With 500 Pound Front Weight With Push Block
3	19H3415	3	Cap Screw	3/4" X 5-1/2", With 500 Pound Front Weight With Push Block
3	19H2826	1	Cap Screw	3/4" X 4-1/2", With Front Mounted Equipment, SUB FOR 19H3105, THIS APPLICATION
4	T83426	8	Washer	Without Front Mounted Equipment, SUB FOR T17776
4	T83426	20	Washer	With 550 Pound Front Weight, SUB FOR T17776
4	T83426	4	Washer	With 550 Pound Front Weight With Front Equipment, SUB FOR T17776
5	14H1058	4	Nut	3/4", Without Front Mounted Equipment
5	14H1058	2	Nut	3/4", With 550 Pound Front Weight With Front Equipment
5	14H1058	10	Nut	3/4", With 550 Pound Front Weight
6	T103590	1	Plate	-
7	T101807	1	Washer	With 550 Pound Front Weight With Front Equipment, SUB FOR R64283
8	19H3415	3	Cap Screw	3/4" X 5-1/2", With 550 Pound Front Weight With Front Equipment
