CAB CONTROL LEVER CONSOLE (SN -609201)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7804	4	Screw	M10 X 40, (SUB FOR 19M7805)
2	37M7131	6	Screw	M6 X 20
3	11M7078	1	Cotter Pin	2 X 20 mm
4	14M7296	9	Flange Nut	M10
5	19M7804	8	Screw	M10 X 40
6	21M7497	1	Screw	M10 X 50
7	22M7111	5	Set Screw	M6 X 6
9	24M7296	9	Washer	10.500 X 30 X 2.500 mm
10	34M7044	1	Spring Pin	6 X 50 mm
11	AT332281	1	Control Support	(SUB FOR AT305051)
12	AT305052	1	Control Support	-
13	AT305070	1	Bracket	(ALSO ORDER (4) T196078)
14	AT305018	1	Control Support	-
15	T203544	8	Bushing	-
16	AT305297	1	Bracket	-
17	T204643	1	Plate	-
18	T203545	8	Bushing	-
19	AT305310	1	Bracket	-
20	T205401	2	Plate	-
21	T206080	1	Cover	RH
22	AT305397	1	Lever	-
24	14M7500	1	Nut	M10
25	T104220	4	Washer	-
28	-	1	Part 28	(T210700 NLA), (SUB T217649, T217650 AND R69166)
29	M145875	2	Extension Spring	-
32	T203569	1	Shaft	-
33	T203576	5	Spacer	-
34	T203871	1	Spacer	-
35	-	1	Part 33	(CTL, 7.5 in. (190MM)), (MAKE FROM T58056) (SUB FOR T210711)
36	T81012	1	Cap	-
37	N31296	1	Pin Fastener	-
38	-	1	Part 38	(CTL, 3.471 ft.(1.06 M)), (MAKE FROM T59938)
39	H173411	4	Nut	-
40	M84972	4	Nut	-
41	T133674	4	Self-Locking Screw	-
42	T134895	4	Self-Locking Screw	-
43	T185769	4	Screw	-
44	T196078	4	Nut	-
45	T203589	1	Cover	LH
46	T204301	1	Cover	-
47	AT305374	1	Gas Operated Cylinder	-
26A	-	1	Part 24	(T210698 NLA), (SUB T217649, T217650 AND R69166)
26B	T217649	1	Adapter Fitting	-
27A	-	1	Part 26	(T210699 NLA), (SUB T217649, T217650 AND R69166)
27B	T217650	1	Lever	-
37A	Z21059	1	Pin Fastener	-
37B	R69166	1	Pin	-

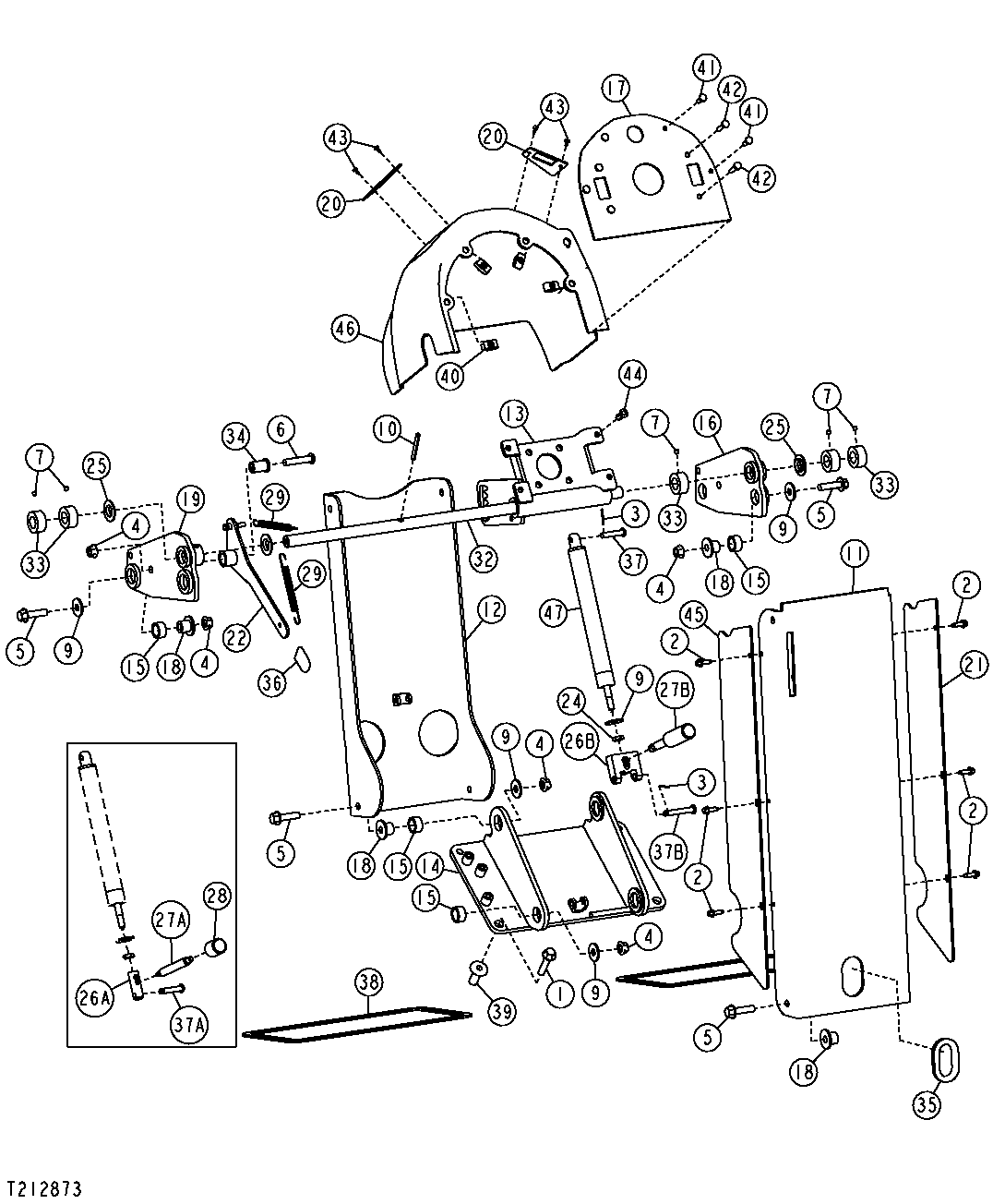

CAB CONTROL LEVER CONSOLE (SN -609201)
