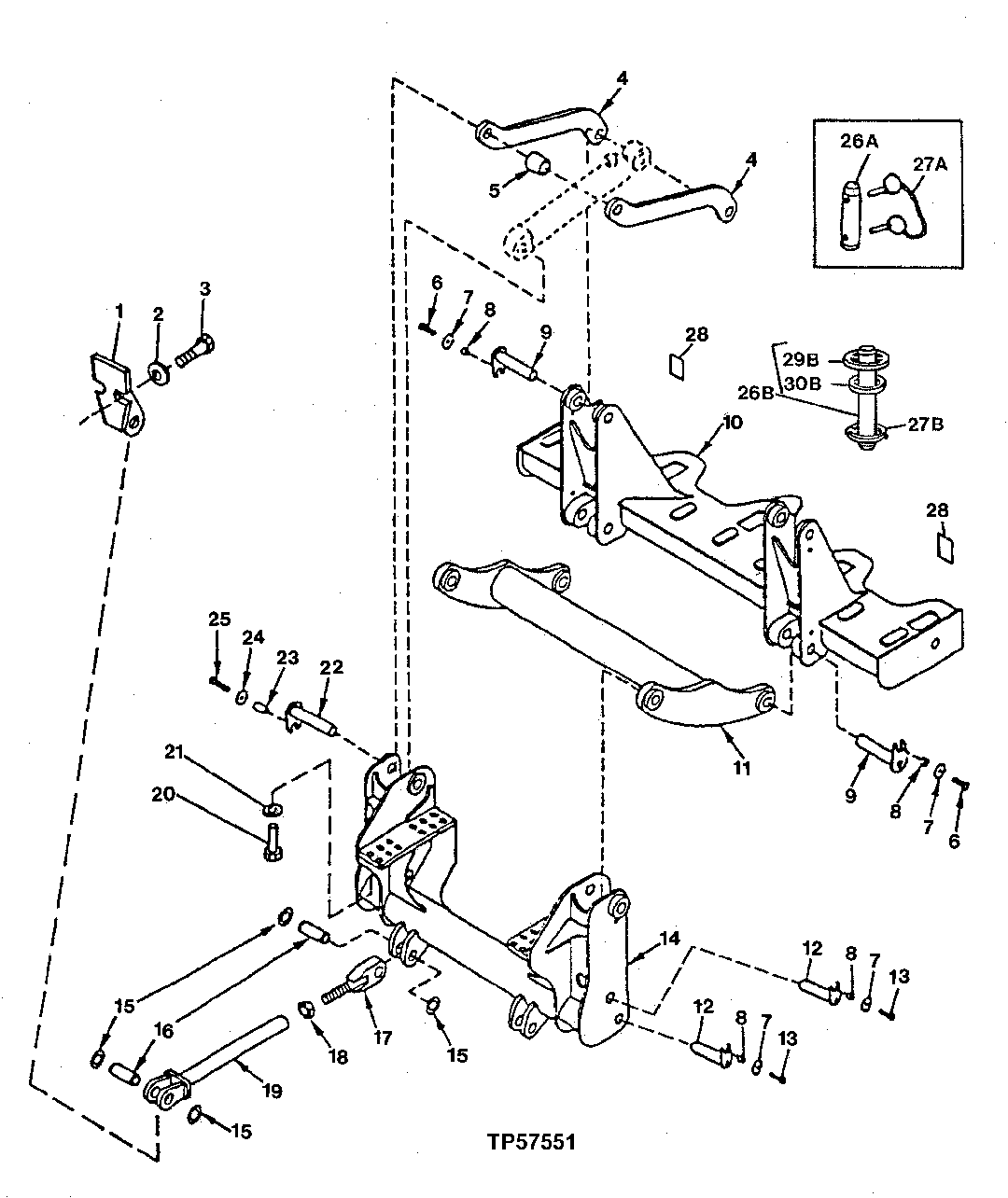

RIPPER/SCARIFIER FRAME AND LINKAGE (549629 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT169560	1	Pad	-
2	T83426	4	Washer	(SUB FOR T17776)
3	19H2411	4	Cap Screw	3/4" X 2-1/2"
4	T149818	4	Plate	-
5	T153019	2	Spacer	-
6	19M7489	4	Cap Screw	M16 X 45
7	T146246	8	Washer	17 X 57.100 X 6.500 mm (0.669" X 2.248" X 0.256")
8	28H3401	8	Spacer	0.742" X 1.050" X 5/8"
9	AT166094	4	Pin	-
9	T162396	4	Lubrication Fitting	(SUB FOR JD7798)(NOT ILLUSTRATED)
10	AT160581	1	Beam	-
11	AT166278	1	Sideboom	-
12	AT172169	4	Pin	-
12	JD7781	4	Lubrication Fitting	(NOT ILLUSTRATED)
13	19M8029	4	Cap Screw	M16 X 30
14	-	1	Part 16	( AT172105 NO LONGER AVAILABLE)
15	E52817	8	Snap Ring	-
16	T149822	4	Pin	-
17	AT166172	2	Tie Rod Assembly	-
18	14H1079	2	NUT	1-3/4"
19	AT166173	2	Tie Rod Assembly	DOUBLE EAR
19	AT175785	2	Tie Rod Assembly	SINGLE EAR
20	19H2411	16	Cap Screw	3/4" X 2-1/2"
21	T151797	16	Washer	20.625 X 47.625 X 6.220 mm (13/16" X 1-7/8" X 0.245")
22	AT166095	2	Pin	-
22	T162396	2	Lubrication Fitting	(SUB FOR JD7798)(NOT ILLUSTRATED)
23	28H3415	2	Bushing	0.824" X 1.050" X 1-7/8"
24	T146246	8	Washer	17 X 57.100 X 6.500 mm (0.669" X 2.248" X 0.256")
25	19M7719	2	Cap Screw	M16 X 70
28	JD5920	2	Reflector	RED, (SUB FOR JD5909)
26A	T43518	1	Pin Fastener	-
26B	AT186723	1	Pin Fastener	-
27A	AT42398	1	Quick Lock Pin	-
27B	AR83396	1	Quick Lock Pin	-
29B	34H363	1	Spring Pin	3/8" X 4"
30B	34H358	1	Spring Pin	3/8" X 2-3/4"

RIPPER/SCARIFIER FRAME AND LINKAGE (549629 - )
